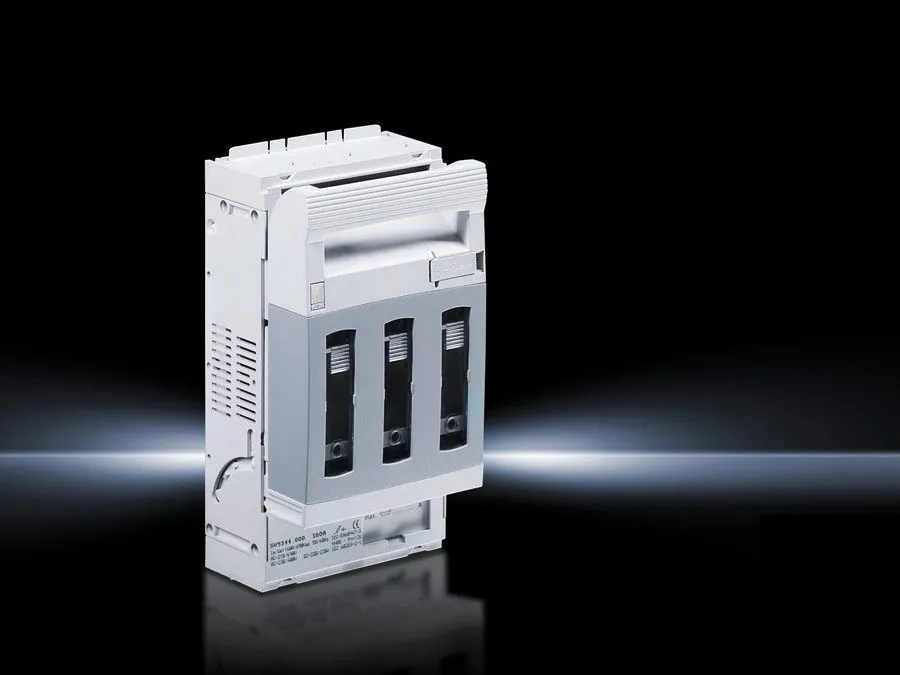

Rittal 9344000 NH Fuse-switch Disconnector - 3-pole

Feature: Rated current and voltage of 160 A at 690 V with a 3-pole NH size 00 layout. Business Impact: Supports heavy-load applications while keeping panel footprints compact, reducing enclosure size and material costs. Application: Ideal for industrial control panels requiring robust switching with minimal space allocation. Feature: Polyamide body with UL 94 fire protection and copper-silver plated contact tracks. Business Impact: Delivers flame-retardant safety alongside durable, low-resistance connections, lowering failure risk and long-term maintenance costs. Application: Suitable for harsh manufacturing environments where safety certifications are mandatory. Feature: Box terminal connection with a 4–95 mm² conductor range and clamping area for laminated copper bars (13 mm x 13 mm). Business Impact: Ensures secure, scalable wiring, lowers installation time, and improves electrical reliability. Application: Great for panels integrating copper busbars and modular wiring schemes. Feature: Mounting plate assembly compatibility and top/bottom cable outlets. Business Impact: Facilitates quick installation, simplifies service access, and supports modular panel architectures. Application: Works well in OEM builds and retrofit projects where mounting plate assemblies are standard. Feature: Dimensions 106 mm width and 194 mm height; weight 0.76 kg per pack; copper weight 0.15 kg. Business Impact: Predictable physical footprint and predictable thermal behavior; easier logistics and inventory planning. Application: Helpful for space planning in compact control enclosures and retrofit projects. Feature: Compliance with IEC/DIN EN 60 947-3 and documented mounting/connection specifications. Business Impact: Enhances regulatory alignment and procurement confidence, reducing risk during audits. Application: Essential for quality control in regulated manufacturing sectors.
