Rittal SV 9344.020 Fuse-Switch Disconnector - 3-Pole, 160 A, 400-690 V
Part Number: 9344020
Manufacturer
Rittal
Part number
9344020
Category
Alt Part Number
SV 9344.020
Quick Summary
Rittal SV 9344.020 fuse-switch disconnector is a robust three-pole solution for safe isolation in switchgear and control panels. Operators often face unreliable fuse monitoring and cramped enclosures that slow maintenance and increase downtime. This unit complies with IEC/DIN EN 60947-3 and UL 94 fire-rated polyamide housing, while supporting mounting plate assemblies for standardized installations. Its compact footprint and box-terminal copper connections enable efficient, scalable power distribution and easier serviceability in industrial environments.
Product Information
Extended Description

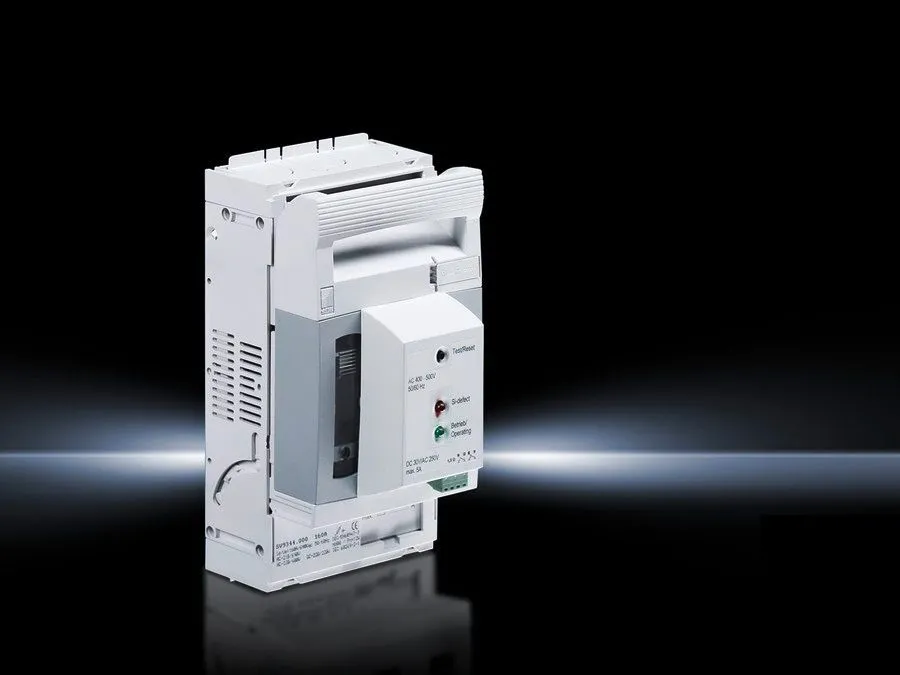

9344020 Rittal: SV NH fuse-switch disconnector, size 00, 160 A, 400-690 V, 3-pole, box terminal, with electronic fuse monitoring, for mounting plate assembly
Article number
SV 9344.020
Material
Polyamide | Fire protection corresponding to UL 94 | Contact tracks: Electrolytic copper, silver-plated
Colour
Chassis: RAL 7035 | Cover: RAL 7035/7001
Clamping area for laminated copper bars
Clamping area width: 13 mm | Clamping area height: 13 mm
for mounting plate assembly
Yes
Cable outlet
Top/bottom
Type of electrical connection
Box terminal
Rated operating current max.
160 A
For NH size
00
Test specification
IEC/DIN EN 60 947-3
Dimensions
Width: 106 mm | Height: 194 mm
Connection for round conductor
4 ‐ 95 mm²
Rated operating voltage
400 V - 690 V, 3~
Number of poles
3-pole
Packs of
1 pc(s).
Weight/pack
0.86 kg
Copper weight (kg per piece)
0.15
Customs tariff number
85369095
EAN
4028177540521
ETIM 9
EC001040
ECLASS 8.0
27371401
Product description
SV NH fuse-switch disconnector, size 00, 160 A, 400-690 V, 3-pole, box terminal, with electronic fuse monitoring, for mounting plate assembly
Feature: NH size 00, 3-pole design with 160 A rating and 400-690 V operation. Business Impact: Safe, reliable isolation for main feeders with a compact footprint, reducing enclosure footprint and wiring complexity. Application: Suitable for control panels and switchgear assemblies requiring high-current, up-to-date protection. Feature: Box terminal connections with top/bottom cable outlets and a 13 mm x 13 mm clamping area for laminated copper bars. Business Impact: Faster, error-free terminations and reduced termination time during assembly and maintenance. Application: Dense panel layouts where tidy wiring and secure terminations are critical. Feature: Electronic fuse monitoring. Business Impact: Real-time fault detection and improved uptime by early warning of fuse conditions. Application: Critical circuits in production lines and energy distribution networks that demand continuous visibility. Feature: Polyamide housing with UL 94 fire protection and color-coded chassis and cover. Business Impact: Enhanced safety, compliance with fire resistance requirements, and easier identification within panels. Application: Industrial enclosures where safety and material performance matter. Feature: Mounting plate assembly compatibility. Business Impact: Simplifies integration with standard Rittal mounting plates and frames, accelerating installation. Application: Modular switchgear projects and scalable power distribution systems.
