Rittal SV 9344.040 SV NH Fuse-Switch - 3-pole, 690 V
Part Number: 9344040
Manufacturer
Rittal
Part number
9344040
Category
Alt Part Number
SV 9344.040
Quick Summary
Rittal SV 9344.040 is a high-capacity SV NH fuse-switch disconnector designed for 3-pole, 690 V applications. Engineers often face challenges delivering reliable fault isolation in compact panels without sacrificing accessibility or serviceability. This unit aligns with IEC/DIN EN 60 947-3 electrical safety standards and UL 94 flame-rated material for safe enclosure use, helping you meet stringent requirements. By offering mounting plate compatibility, top/bottom cable outlets, and a clear conductor range, it supports faster installation and easier maintenance. For panel builders and electrical contractors, the combination of robust performance and modular adaptability translates into reduced downtime and lower lifecycle costs while maintaining compliance across diverse automation environments.
Product Information
Extended Description

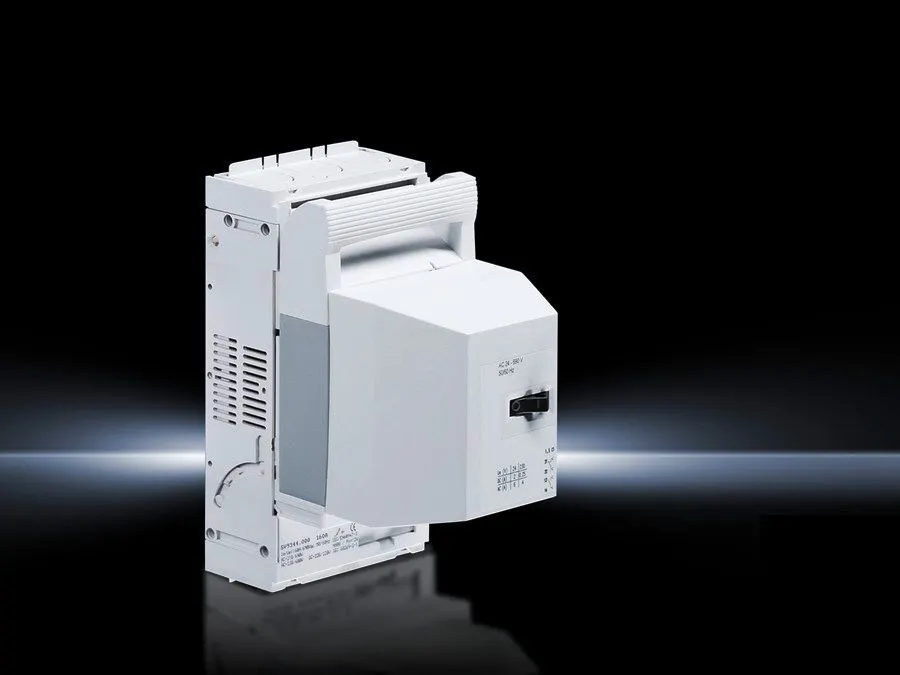

9344040 Rittal: SV NH fuse-switch disconnector, size 00, 160 A, 690 V, 3-pole, box terminal, with electromechanical fuse monitoring, for mounting plate assembly
Article number
SV 9344.040
Material
Polyamide | Fire protection corresponding to UL 94 | Contact tracks: Electrolytic copper, silver-plated
Colour
Chassis: RAL 7035 | Cover: RAL 7035/7001
Clamping area for laminated copper bars
Clamping area width: 13 mm | Clamping area height: 13 mm
for mounting plate assembly
Yes
Cable outlet
Top/bottom
Type of electrical connection
Box terminal
Rated operating current max.
160 A
For NH size
00
Test specification
IEC/DIN EN 60 947-3
Dimensions
Width: 106 mm | Height: 194 mm
Connection for round conductor
4 ‐ 95 mm²
Rated operating voltage
690 V, 3~
Number of poles
3-pole
Packs of
1 pc(s).
Weight/pack
1.18 kg
Copper weight (kg per piece)
0.15
Customs tariff number
85369095
EAN
4028177540545
ETIM 9
EC001040
ECLASS 8.0
27371401
Product description
SV NH fuse-switch disconnector, size 00, 160 A, 690 V, 3-pole, box terminal, with electromechanical fuse monitoring, for mounting plate assembly
Feature: High current handling up to 160 A at 690 V. Business Impact: Enables switching for demanding motor and distribution loads without over-sizing panels. Application: Power distribution in industrial automation cabinets where compact form factors are essential. Feature: 3-pole, box terminal with electromechanical fuse monitoring. Business Impact: Improves fault detection and isolation, reducing unplanned outages. Application: Control panels requiring reliable protection and clear status indication. Feature: Mounting plate assembly compatibility. Business Impact: Streamlines modular enclosure design, accelerating assembly and replacement. Application: Rittal enclosure systems where standard plate-mounted disconnections are used. Feature: Top/bottom cable outlets and laminated copper bar connections (13 mm x 13 mm). Business Impact: Improves wiring flexibility and minimizes contact resistance for stable current paths. Application: Heavy-duty DC/AC power routing in compact switchgear. Feature: UL 94 compliant polyamide material with fire protection. Business Impact: Enhances safety and reduces enclosure fire risk during faults. Application: Enclosures in industrial environments with strict flame-retardancy requirements. Feature: Defined dimensions and weight (106 mm width, 194 mm height, 1.18 kg per pack). Business Impact: Facilitates precise panel planning and predictable installation weight. Application: Layout planning for modular switchgear and space-constrained panels.
