Rittal SV 9344.250 fuse-switch disconnector - IEC/DIN EN 60 947-3
Part Number: 9344250
Manufacturer
Rittal
Part number
9344250
Category
Alt Part Number
SV 9344.250
Quick Summary
The Rittal SV 9344.250 fuse-switch disconnector provides robust isolation for power distribution panels. Engineers often struggle with reliable fuse monitoring and mounting flexibility in compact switchgear. This unit meets IEC/DIN EN 60 947-3, UL 94 fire protection, and CE compliance for safer, regulatory-ready installations. Its 3-pole, 400 A rating at 690 V supports scalable panel designs, while plate-mount compatibility reduces assembly time. By integrating electromechanical fuse monitoring, you gain actionable status signals that streamline maintenance and minimize downtime.
Product Information
Extended Description

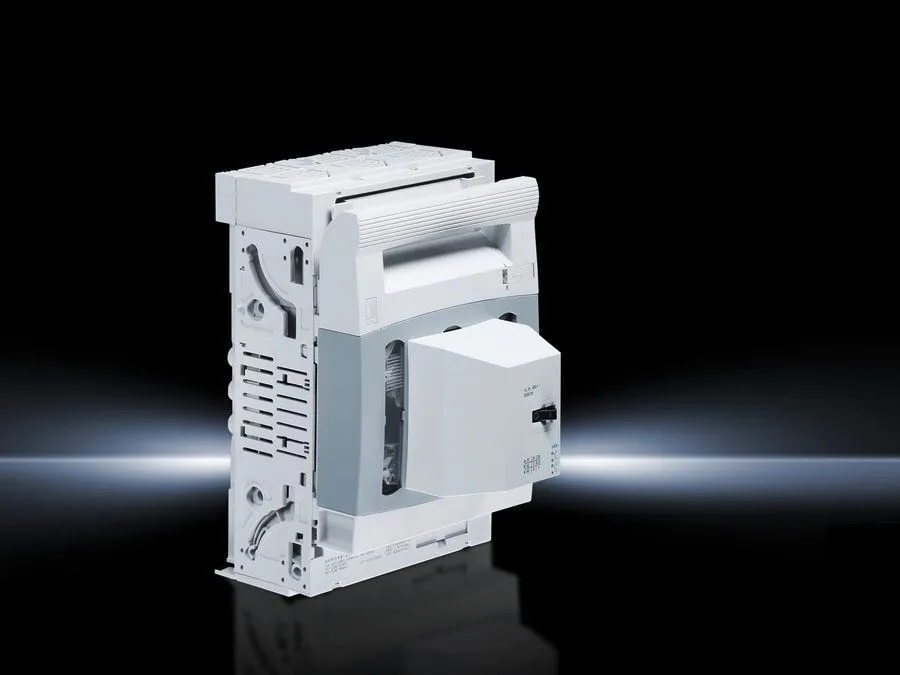

9344250 Rittal: SV NH fuse-switch disconnector, size 2, 400 A, 690 V, 3-pole, screw M10, with electromechanical fuse monitoring, for mounting plate assembly
Article number
SV 9344.250
Material
Polyamide | Fire protection corresponding to UL 94 | Contact tracks: Electrolytic copper, silver-plated
Colour
Chassis: RAL 7035 | Cover: RAL 7035/7001
Clamping area for laminated copper bars
Clamping area width: 50 mm | Clamping area height: 10 mm
for mounting plate assembly
Yes
Cable outlet
Top/bottom
Type of electrical connection
Screw M10
Rated operating current max.
400 A
For NH size
2
Test specification
IEC/DIN EN 60 947-3
Dimensions
Width: 210 mm | Height: 298 mm
Connection for round conductor
10 ‐ 240 mm²
Rated operating voltage
690 V, 3~
Number of poles
3-pole
Packs of
1 pc(s).
Weight/pack
4.04 kg
Copper weight (kg per piece)
1
Customs tariff number
85369095
EAN
4028177540712
ETIM 9
EC001040
ECLASS 8.0
27371401
Product description
SV NH fuse-switch disconnector, size 2, 400 A, 690 V, 3-pole, screw M10, with electromechanical fuse monitoring, for mounting plate assembly
Feature → Business Impact → Application: Electromechanical fuse monitoring built into the SV 9344.250 provides early fault detection, enabling proactive maintenance and reducing unplanned downtime in critical power circuits; ideal for control panels and switchgear where reliability matters. Feature → 3-pole, 400 A at 690 V → High-current switching with safe isolation for large distribution boards, improving overall system safety and resilience in industrial environments. Feature → Cable termination 10–240 mm² with screw M10 → Flexible, secure connections that simplify wiring during panel assembly and reduce torque-related contact issues. Feature → Mounting plate compatibility and laminated copper bar clamping area (50 mm x 10 mm) → Faster installation and cleaner bus-bar integration in compact enclosures. Feature → Polyamide body with UL 94 fire protection → Enhanced fire safety compliance and long-term cabinet integrity in harsh environments. Feature → Top/bottom cable outlets → Versatile routing options to fit diverse panel layouts and minimize interference between components.
