Rittal SV 9344.510 Micro-switch - 5 A, NH 1-3
Part Number: 9344510
Manufacturer
Rittal
Part number
9344510
Category
Alt Part Number
SV 9344.510
Quick Summary
Rittal SV 9344.510 micro-switch is a position-indicating switch for NH fuse-switch disconnectors used in control panels. Installers and panel builders often struggle with reliable mounting and accurate status indication in harsh electrical environments. This part references ETIM 9 EC001900 and ECLASS 8.0 27400613, helping procurement systems map the component and ensuring interoperability across your bill of materials. Designed to support NH fuse-switch disconnectors in sizes 1 through 3, it offers a compact mounting solution with a plastic lug for quick, secure installation. By delivering a two-pack of rugged micro-switches with straightforward wiring, it reduces install time, improves fault diagnostics, and supports safer, more available switchgear for OEMs and service teams.
Product Information
Extended Description

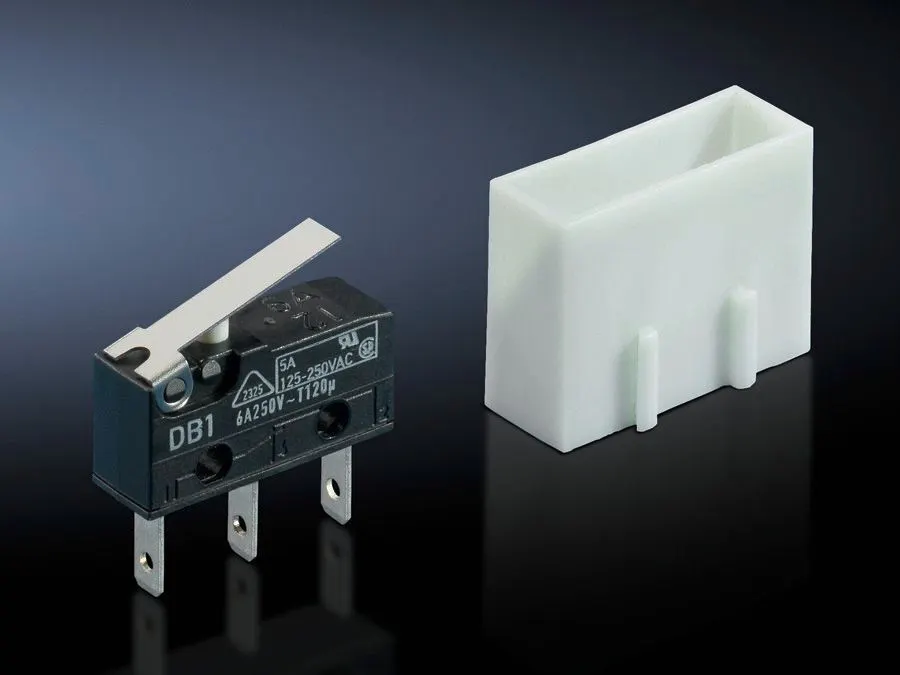

9344510 Rittal: SV Micro-switch, for NH fuse-switch disconnector size 1-3, including plastic lug
Article number
SV 9344.510
Product description
To indicate the switch position of the NH unit (cover).
Supply includes
Including plastic lug for attaching the micro-switch to the disconnector chassis
Rated operating current max.
5 A
For size
NH fuse-switch disconnectors, size 1 - 3
Packs of
2 pc(s).
Weight/pack
0.008 kg
Customs tariff number
85389099
EAN
4028177540835
ETIM 9
EC001900
ECLASS 8.0
27400613
Product description
SV Micro-switch, for NH fuse-switch disconnector size 1-3, including plastic lug
Feature: Compact, lightweight design (0.008 kg per pack) enables space-efficient installation in crowded control panels. Business Impact: Frees rack space and lowers weight-driven shipping costs; Application: Fits in tight panel enclosures alongside NH fuse-switch disconnector assemblies. Feature: Includes plastic lug for attaching the micro-switch to the disconnector chassis. Business Impact: Speeds up mounting and minimizes additional hardware sourcing; Application: Quick retrofit or new-build installations in NH unit housings. Feature: Rated operating current max. 5 A. Business Impact: Ensures reliable signal switching for status indication without overloading control circuits; Application: Position sensing interfaces for NH 1-3 disconnectors. Feature: Packs of 2 pieces. Business Impact: Reduces stocking complexity and unit cost per installation; Application: Stocking kits for panel builders and service teams. Feature: Compliance alignment with ETIM EC001900 and ECLASS 27400613. Business Impact: Facilitates accurate procurement data integration and BOM mapping; Application: Cross-system sourcing and supplier qualification. Feature: Product purpose is to indicate the switch position of the NH unit (cover). Business Impact: Improves operational visibility, accelerates diagnostic workflows, and supports safer maintenance practices; Application: Control cabinet and switchgear status indication.
