Rittal 9344520 SV Connection Space Cover - Size 00
Part Number: 9344520
Manufacturer
Rittal
Part number
9344520
Category
Alt Part Number
SV 9344.520
Quick Summary
The SV 9344.520 connection space cover protects contact hazards in NH fuse-switch disconnectors. When using ring terminals with long collars, it extends the protective cover at the top and bottom to fit tight panel layouts. Certification details are not listed in the data; verify CE, IP, or SIL compliance with the supplier for project-specific requirements. This polyamide accessory in RAL 7035 color simplifies installation, supports scalable safety upgrades, and helps standardize spare parts across panels. It ships in packs of two, offering cost-efficient stocking for routine maintenance and future refurbishments.
Product Information
Extended Description

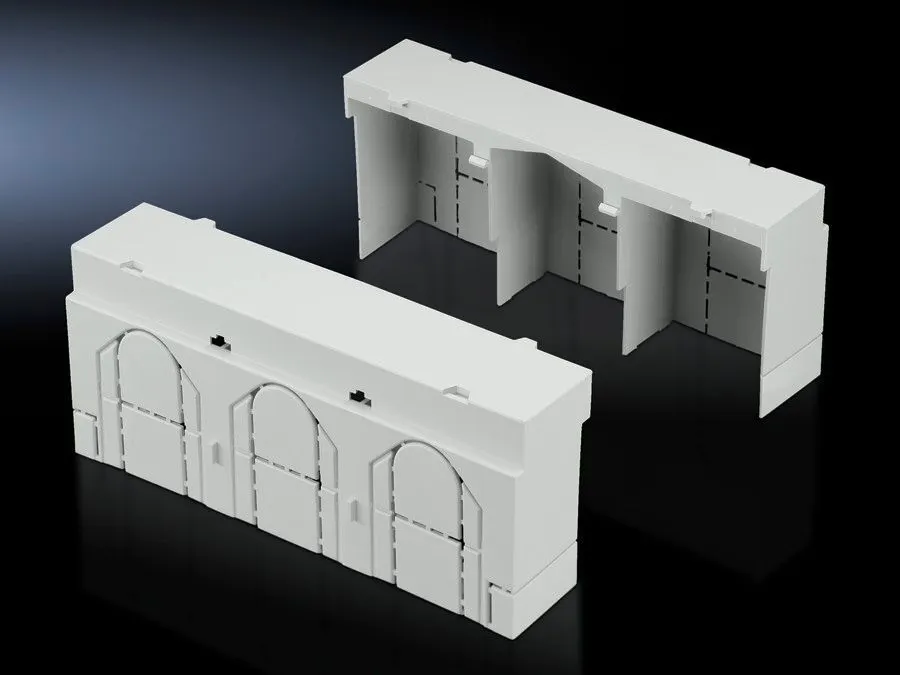

9344520 Rittal: SV Connection space cover, for NH fuse-switch disconnector, size 00
Article number
SV 9344.520
Product description
For extending the contact hazard protection cover, e.g. when using ring terminals with a long collar. Bayable as required at the top and bottom.
Material
Polyamide
Colour
RAL 7035
For size
00
Packs of
2 pc(s).
Weight/pack
0.064 kg
Customs tariff number
85472000
EAN
4028177540859
ETIM 9
EC000775
ECLASS 8.0
27142414
Product description
SV Connection space cover, for NH fuse-switch disconnector, size 00
Feature: Extends contact hazard protection cover to accommodate long collar ring terminals → Business Impact: Improves operator safety by eliminating exposed conductors in NH fuse-switch disconnector assemblies → Application: Use in control panels and compact enclosures where terminal accessories extend beyond standard covers. Feature: Polyamide construction in RAL 7035 → Business Impact: Delivers chemical and temperature resistance with a consistent aesthetic for industrial cabinets → Application: Suitable for harsh factory environments and color-matched deployments. Feature: Size 00 compatibility with packs of 2 → Business Impact: Reduces part variety and lowers inventory costs while ensuring quick replacements → Application: Ideal for small-footprint disconnectors in modular enclosures. Feature: Bayable at top and bottom → Business Impact: Provides flexible mounting options to fit diverse configurations without extra hardware → Application: Streamlines retrofits and upgrades in evolving control layouts. Feature: Designed for NH fuse-switch disconnector installations with long collar rings → Business Impact: Minimizes accessory mismatch and installation time, boosting project throughput → Application: Common in panels requiring extended hazard protection without major rework.
Get a Quick Quote for a Rittal 9344520
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9344520?
Enquire Now
FAQs
Install the SV 9344.520 by aligning the cover with the NH fuse-switch disconnector sized for 00, using the bayable top and bottom features to secure it without additional fasteners. Ensure the long-collar ring terminals are positioned within the extended cover to maintain full hazard protection and cabinet clearance.
Yes. The design specifically accommodates long-collar ring terminals, extending the contact hazard protection cover at the top and bottom to fit panels with tighter clearances and maintain compliant protection in confined spaces.
The part is made from polyamide and finished in RAL 7035. This combination provides robust mechanical properties and a consistent industrial appearance across standard Rittal enclosures.
The SV 9344.520 is sold in packs of two pieces, with a combined weight of 0.064 kg per pack, supporting economical stocking and quick replacements in maintenance cycles.
The provided data does not list explicit CE, IP, or SIL certifications for this item. Confirm regulatory compliance with the supplier to ensure alignment with your project’s certification requirements.
