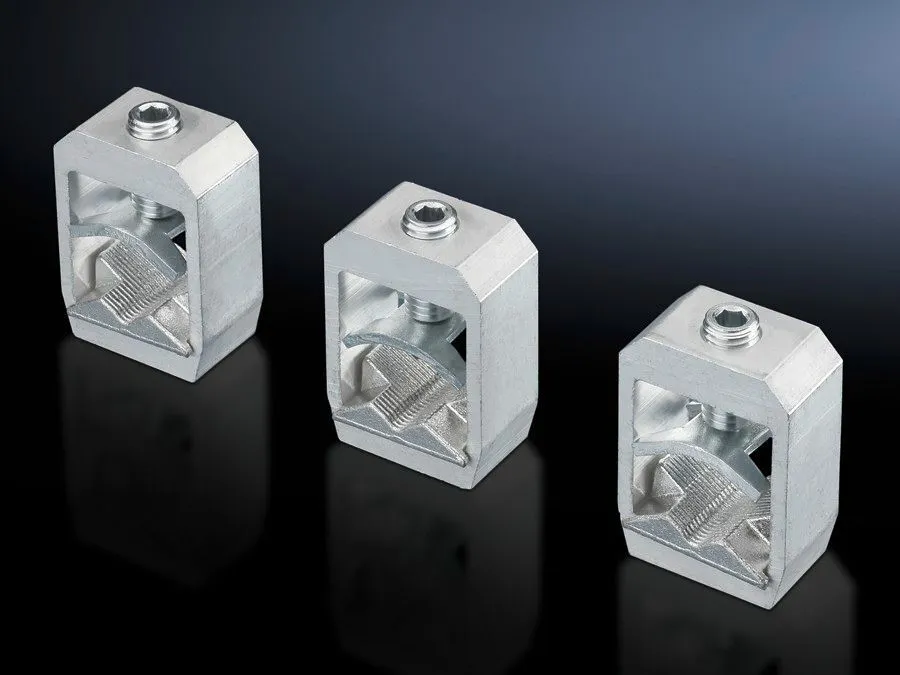

Rittal SV 9344.610 SV Box Terminal - Nickel-plated
Part Number: 9344610
Manufacturer
Rittal
Part number
9344610
Category
Alt Part Number
SV 9344.610
Quick Summary
Rittal SV 9344.610 SV Box Terminal provides direct connections for NH fuse-switch disconnectors in control panels and switchgear. Engineers often struggle with safe, reliable terminations when space is limited and mixed conductor types must be joined securely. Certification details are not listed in the data; verify CE, IP or SIL markings in the datasheet to ensure regulatory alignment. Designed for size 1, this nickel-plated cast brass terminal supports round conductors 35–150 mm² and laminated copper bars with a 20x14 mm clamping area, delivering robust, corrosion-resistant terminations. In practice, this translates to faster assembly, reduced torque variation, and improved long-term reliability, helping you meet compliance while lowering total installation costs. It also complements Rittal enclosures and other NH fuse-switch accessories.
Product Information
Extended Description
9344610 Rittal: SV Box terminal, for NH fuse-switch disconnector, size 1 (with screw terminal), round conductor connection 35-150 mm², clamping area WH: 20x14 mm
Article number
SV 9344.610
Product description
For direct connection of round and sector-shaped conductors and laminated copper bars. Suitable for NH fuse-switch disconnectors with screw terminal.
Material
Cast brass
Surface finish
Nickel-plated
Clamping area for laminated copper bars
Clamping area width: 20 mm | Clamping area height: 14 mm
For size
1
OUT_COL_CROSS_SECTION_SECTOR_CONDUCTOR
50 ‐ 150 mm²
Connection for round conductor
35 ‐ 150 mm²
Packs of
3 pc(s).
Weight/pack
0.174 kg
Customs tariff number
73182900
EAN
4028177540972
ETIM 9
EC001894
ECLASS 8.0
27400609
Product description
SV Box terminal, for NH fuse-switch disconnector, size 1 (with screw terminal), round conductor connection 35-150 mm², clamping area WH: 20x14 mm
Feature → Business Impact → Application: Direct connection capability reduces soldering and field wiring time, increasing installation speed and consistency in panel assemblies. This leads to lower labor costs and tighter quality control when terminating NH fuse-switch disconnector circuits in switchgear. Application: Control panels and switchgear where space is at a premium and quick, secure terminations are required. Feature → Business Impact → Application: Nickel-plated cast brass provides superior corrosion resistance in harsh environments, extending service life in industrial cabinets. Benefit: Reduced maintenance cycles and lower replacement costs in manufacturing and process plants. Application: Enclosures exposed to humidity or grime where reliable terminations matter. Feature → Business Impact → Application: Accommodates both round conductors and laminated copper bars with clear clamping dimensions (20x14 mm), enabling mixed- conductor terminations without adapters. Benefit: Fewer parts, simpler procurement, and faster commissioning in power distribution. Application: NH fuse-switch disconnector terminations that combine different conductor types. Feature → Business Impact → Application: Packs of 3 units at 0.174 kg per pack streamline logistics and inventory planning. Benefit: Lower storage footprint and predictable reorder quantities for bulk purchasing in distributors and OEMs. Application: High-volume projects and multi-panel deployments. Feature → Business Impact → Application: Screw terminal design supports straightforward installation and field service; torque data is provided in the datasheet for repeatable performance. Benefit: Consistent clamping force, reduced risk of loosening, and easier maintenance. Application: Routine service and retrofit work in industrial automation. Industry context: The SV 9344.610 aligns with typical Rittal enclosure ecosystems, enabling modular, compliant, and scalable power management.
