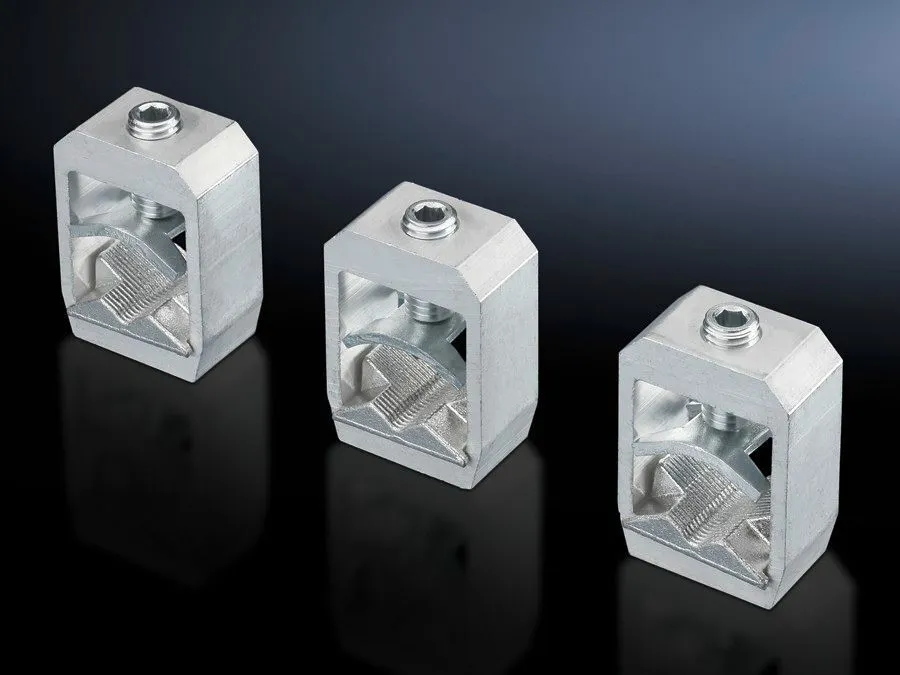

Rittal 9344620 SV Box Terminal - Nickel-plated, 95–300 mm²
Part Number: 9344620
Manufacturer
Rittal
Part number
9344620
Category
Alt Part Number
SV 9344.620
Quick Summary
SV Box Terminal by Rittal is a direct connection accessory for NH fuse-switch disconnectors. It enables secure terminations for both round conductors and laminated copper bars, reducing installation time and minimizing contact resistance. This product line typically aligns with CE marking and EN standards for electrical components, and uses a durable nickel-plated cast brass construction to resist corrosion in demanding environments. By choosing the SV 9344.620, engineers gain reliable, scalable wiring that supports size 2/3 disconnector configurations and simplifies maintenance while maximizing electrical reliability and safety.
Product Information
Extended Description
9344620 Rittal: SV Box terminal, for NH fuse-switch disconnector, size 2/3 (with screw terminal), round conductor connection 95-300 mm², clamping area WH: 32x20 mm
Article number
SV 9344.620
Product description
For direct connection of round and sector-shaped conductors and laminated copper bars. Suitable for NH fuse-switch disconnectors with screw terminal.
Material
Cast brass
Surface finish
Nickel-plated
Clamping area for laminated copper bars
Clamping area width: 32 mm | Clamping area height: 20 mm
For size
2/3
OUT_COL_CROSS_SECTION_SECTOR_CONDUCTOR
120 ‐ 300 mm²
Connection for round conductor
95 ‐ 300 mm²
Packs of
3 pc(s).
Weight/pack
0.396 kg
Customs tariff number
73182900
EAN
4028177541016
ETIM 9
EC001894
ECLASS 8.0
27400609
Product description
SV Box terminal, for NH fuse-switch disconnector, size 2/3 (with screw terminal), round conductor connection 95-300 mm², clamping area WH: 32x20 mm
Feature → Business Impact → Application: The SV Box Terminal provides direct connection for round conductors (95–300 mm²) and laminated copper bars (32×20 mm), which reduces assembly steps and improves current-carrying performance in NH fuse-switch disconnector installations. This translates to measurable efficiency gains during panel wiring and lower long-term maintenance costs, especially in high-demand distribution panels where reliable terminations are critical for uptime. Application: use with screw-terminal NH disconnectors to streamline field terminations and ensure consistent clamping pressure across all conductors, improving contact reliability and reducing thermal hotspots. Long-tail keywords addressed include NH fuse-switch disconnectors with screw terminals, round conductor connection 95-300 mm², and laminated copper bar integration.
Get a Quick Quote for a Rittal 9344620
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9344620?
Enquire Now
FAQs
To install, ensure power is de-energized and the disconnector is accessible. Position the SV 9344.620 so that the round conductor or laminated copper bar aligns with the clamping area, then secure with the screw terminal, tightening evenly to specified torque. The clamping area is 32×20 mm, supporting copper bars up to that size and round conductors up to 300 mm², ensuring a reliable terminations with consistent contact pressure.
The box terminal supports round conductors from 95 to 300 mm² and laminated copper bars with a clamping area of 32×20 mm. This dual compatibility enables direct connections for various installation scenarios, including round wiring from feeders and laminated copper buses used in low-voltage switchgear withinNH fuse-switch disconnector assemblies.
SV 9344620 is manufactured from cast brass and finished with nickel plating. This combination provides robust mechanical strength and excellent corrosion resistance, which is advantageous in harsh industrial environments where connectors are exposed to dust, moisture, and varying temperatures.
The SV 9344620 ships in packs of 3 pieces, with a weight per pack of 0.396 kg. This packaging supports efficient stocking and flexible kitting for panel builders and maintenance teams, helping to optimize inventory levels on the shop floor.
Yes. The SV Box Terminal is designed for direct connection to NH fuse-switch disconnectors that use screw terminals, providing a secure, conductive interface. Its size 2/3 compatibility and the nickel-plated brass construction ensure reliable terminations and ease of installation in standard electrical distribution assemblies.
