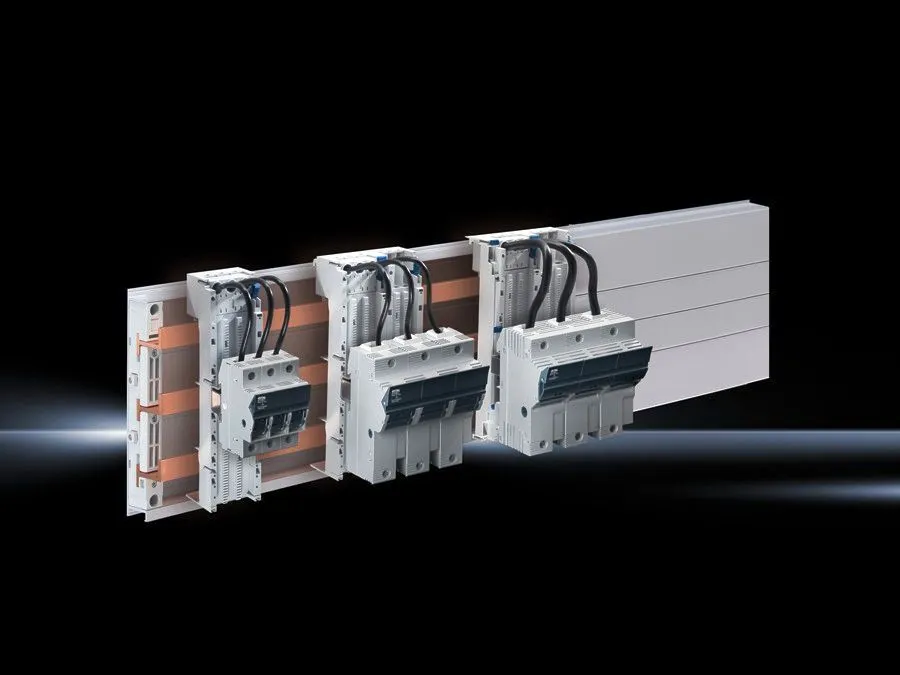

Rittal SV 9345.005 Fuseholder - Class CC UL 248-4
Part Number: 9345005
Manufacturer
Rittal
Part number
9345005
Category
Alt Part Number
SV 9345.005
Quick Summary
The SV 9345.005 fuseholder from Rittal provides reliable 3-pole protection for industrial power distribution. Engineers often wrestle with secure mounting on 35 mm rails and seamless RiLine adaptor integration in compact cabinets. It is certified to UL 248-4 for fuse compatibility and tests under UL 4248-1, with a 600 V operating rating to support safe, scalable protection. Coupled with DIN-rail snap-on ease and versatile conductor connections (AWG 8–18, 0.75–25 mm²), this solution reduces installation time and procurement complexity while delivering consistent performance in evolving control architectures.
Product Information
Extended Description
9345005 Rittal: SV Fuseholder, Class CC, 30 A, 600 V, 3-pole, (60 mm)
Article number
SV 9345.005
Material
Polyamide | Fire protection corresponding to UL 94-V0
Colour
RAL 7035
Connection for round conductor
AWG 8 - 18
For fuse type (class)
CC
Rated operating current max.
30 A
Fuse standard
UL 248-4
Note
For snap-on mounting on 35 mm (7.5 mm/15 mm high) support rails to DIN EN 60 715 or RiLine component adaptor combinations (OM adaptors/supports)
Test specification
UL 4248-1
Note on Model No.
Not suitable for accommodating fuses 10 x 38 mm to IEC 60 269-2/-4/-6
Dimensions
Width: 54 mm | Height: 81 mm
Connection for round conductor
0.75 ‐ 25 mm²
To fit fuses
Diameter: 10 mm | Length: 38 mm
Voltage range for indicator lights
110 ‐ 600 V
Rated operating voltage
600 V, 3~
Electrical ratings UL (SCCR)
200 kA - 600 V, Fuse Class CC max. 30 A, JDDZ/7
Number of poles
3-pole
Packs of
4 pc(s).
Weight/pack
0.596 kg
Copper weight (kg per piece)
0.018
Customs tariff number
85369095
EAN
4028177805385
ETIM 9
EC001900
ECLASS 8.0
27400613
Product description
SV Fuseholder, Class CC, 30 A, 600 V, 3-pole, (60 mm)
Feature: 3-pole Class CC fuseholder rated at 30 A/600 V. Business Impact: Delivers reliable protection for three-phase circuits, supporting safe motor and control panel operation in demanding environments. Application: Control panels and power distribution enclosures in manufacturing facilities. Feature: Snap-on mounting on 35 mm DIN rails or RiLine adaptor combinations. Business Impact: Speeds up installation, enables modular upgrades, and minimizes field wiring errors. Application: New builds and retrofit projects in machine shops and process lines. Feature: Wide conductor compatibility AWG 8–18 and 0.75–25 mm². Business Impact: Simplifies wiring, reduces inventory variety, and lowers termination time. Application: Panel wiring and control cabinet terminations. Feature: Fuse compatibility with 10 mm x 38 mm elements, Class CC, UL 248-4. Business Impact: Ensures standardized replacement parts and compliant protection across systems. Application: 30 A protective paths in industrial controls. Feature: Compact dimensions 54 mm x 81 mm. Business Impact: Optimizes space in tight enclosures, enabling denser panel layouts. Application: Small to mid-size control panels with limited footprint. Feature: UL 4248-1 tested, 200 kA SCCR at 600 V. Business Impact: High short-circuit withstand capability improves system reliability and safety. Application: Critical power feeds in manufacturing lines and packaging equipment.
Get a Quick Quote for a Rittal 9345005
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9345005?
Enquire Now
FAQs
Use the snap-on mounting designed for 35 mm rails (DIN EN 60715) or RiLine adaptor combinations. Ensure proper seating and secure conductor termination (AWG 8–18 or 0.75–25 mm²). The 3-pole assembly fits standard control cabinets and reduces installation time when upgrading from older fuseholders.
The unit accommodates Class CC fuses with a 10 mm diameter and 38 mm length, up to a maximum of 30 A. This aligns with UL 248-4 requirements and ensures standardized replacement parts across protected circuits.
Yes. The fuseholder is rated for 600 V and supports a SCCR of up to 200 kA, providing robust protection for high-energy fault scenarios in modern power distribution topologies.
It supports round conductors in the range AWG 8–18 and 0.75–25 mm², with clamps designed for reliable terminations. This compatibility helps standardize wiring across mixed installations and simplifies future upgrades.
Key certifications include UL 248-4 fuse standard and UL 4248-1 test specification. The unit is designed for 600 V operation and supports compliant protection in regulated industrial environments.
