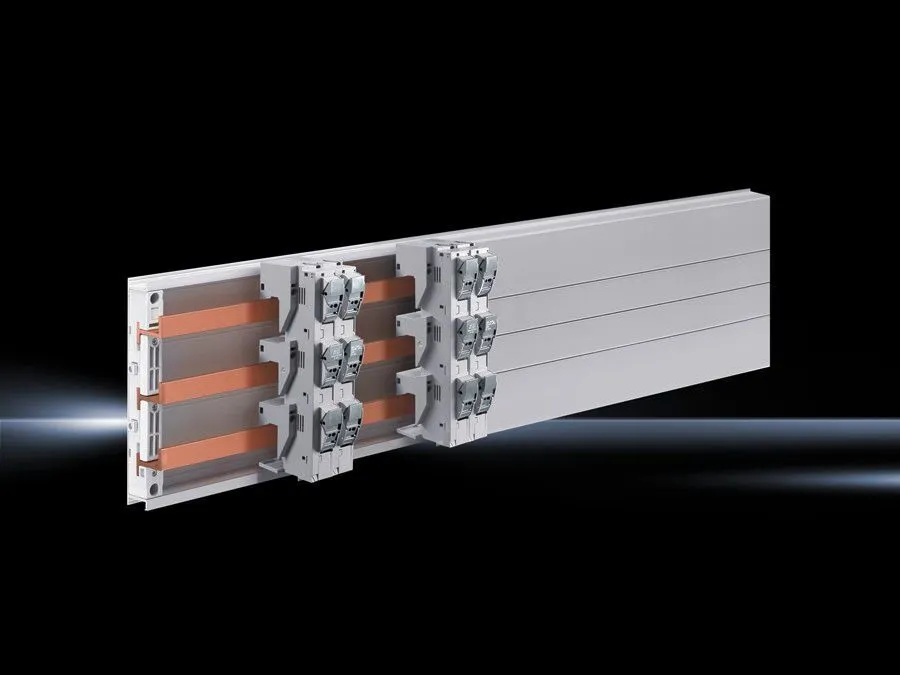

Rittal 9345040 Fuse Holder - 3-Pole CC, 60 mm UL 248-4
Part Number: 9345040
Manufacturer
Rittal
Part number
9345040
Category
Alt Part Number
SV 9345.040
Quick Summary
Rittal 9345040 fuse holder provides safe, compact 3-pole protection for 60 mm busbar systems. Engineers often struggle with finding a UL-listed, space-efficient solution that fits standard busbar layouts without complex mounting. This unit carries UL 248-4 fuse compatibility and UL 4248-4 test readiness, along with a UL 94-V0 flame-retardant polyamide body. Its robust construction, color-coded RAL 7035 housing, and clear terminal access help streamline panel assembly, reducing wiring errors and maintenance costs. For panel builders and industrial automation projects, this component supports compliance-driven assemblies and faster service replacements, while delivering reliable protection in electrical cabinets and power distribution panels.
Product Information
Extended Description
9345040 Rittal: SV Fuse holder, Class CC, 30 A, 600 V, 3-pole, (60 mm)
Article number
SV 9345.040
Material
Polyamide | Fire protection corresponding to UL 94-V0
Colour
RAL 7035
Connection for round conductor
AWG 10 - 16
For bar systems with centre-to-centre spacing
60 mm
For fuse type (class)
CC
Rated operating current max.
30 A
Fuse standard
UL 248-4
Note
Not suitable for accommodating fuses 10 x 38 mm to IEC 60 269-2/-4/-6
Test specification
UL 4248-4
Dimensions
Width: 27 mm | Height: 200 mm
Connection for round conductor
1.5 ‐ 6 mm²
To fit fuses
Diameter: 10 mm | Length: 38 mm
To fit busbars
Height: 5, 10 mm
Voltage range for indicator lights
110 ‐ 600 V
Rated operating voltage
600 V, 3~
Electrical ratings UL (SCCR)
200 kA - 600 V, Fuse Class CC max. 30 A, JDDZ/7
Number of poles
3-pole
Packs of
4 pc(s).
Weight/pack
0.752 kg
Copper weight (kg per piece)
0.032
Customs tariff number
85361090
EAN
4028177709294
ETIM 9
EC001900
ECLASS 8.0
27400613
Product description
SV Fuse holder, Class CC, 30 A, 600 V, 3-pole, (60 mm)
Feature → Business Impact → Application: The SV 9345.040 is a 3-pole Class CC fuse holder designed for 60 mm busbar spacing, delivering up to 30 A at 600 V. This combination ensures robust overcurrent protection while conserving panel space, reducing enclosure size, and simplifying assembly in control cabinets and power distribution panels. Application: Ideal for industrial automation panels where compact footprint and reliable circuit protection are critical, such as machine controls and process systems. Long-tail keywords integrated include 60 mm busbar systems, Class CC fuse holder, UL 248-4 compliance, and panel assembly efficiency.Feature → Business Impact → Application: Made from polyamide with UL 94-V0 flame protection, the housing boosts safety compliance and reduces fire risk in harsh environments. Application: Suitable for rugged electrical cabinets and indoor/outdoor installations where material durability and flame retardance are required, aligning with industrial standards and corporate safety programs.Feature → Business Impact → Application: Conductor and fuse compatibility (AWG 10-16; 1.5–6 mm²; fuse diameter 10 mm; length 38 mm) simplifies wiring and retrofit projects, enabling rapid upgrades without rewiring. Application: Replacement and expansion in existing panels, minimizing downtime and enabling scalable distribution in automation installations.Feature → Business Impact → Application: Clear dimensional and packaging data (Width 27 mm; Height 200 mm; packs of 4; copper weight 0.032 kg) supports accurate space planning and cost estimation. Application: Industry-grade enclosures and panel builds where precise mounting and predictable stock levels are essential for procurement and maintenance planning.Feature → Business Impact → Application: Certifications and standards (UL 248-4 fuse standard; UL 4248-4 test) provide interoperability with UL-listed components, reducing qualification time for new assemblies. Application: Automotive, food & beverage, and discrete manufacturing panels that require proven regulatory compliance and reliable component sourcing.
Get a Quick Quote for a Rittal 9345040
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9345040?
Enquire Now
FAQs
Yes, the SV 9345.040 is designed for 60 mm centre-to-centre busbar spacing and supports Class CC fuses rated up to 30 A at 600 V. It accepts fuses with a 10 mm diameter and 38 mm length, which aligns with UL 248-4 specifications. Ensure correct fuse type to match SCCR requirements in your panel.
The device provides a rated operating current up to 30 A and rated voltage of 600 V (3-phase). It is designed for round conductors in the AWG 10–16 range and conductor cross-sections from 1.5 to 6 mm², enabling flexible wiring while maintaining solid electrical contact and reliable protection in automation panels.
This fuse holder is well-suited for industrial automation panels, power distribution cabinets, and control enclosures in manufacturing environments. Its compact 27 mm width, 200 mm height, and 60 mm busbar spacing make it ideal for space-constrained panels in machine builders, packaging lines, and process automation projects.
The SV 9345.040 aligns with UL 248-4 fuse standards and UL 4248-4 test requirements, plus a UL 94-V0 flame rating for the polyamide housing. These certifications support safer panel build practices and easier integration with other UL-listed components in regulated industries.
By delivering a compact, UL-listed protection solution with straightforward wiring and universal conductor compatibility, the fuse holder reduces installation time and commissioning risk. Its durable housing and standardised dimensions also simplify spare parts sourcing, leading to lower maintenance downtime and a faster return on investment for industrial control projects.
