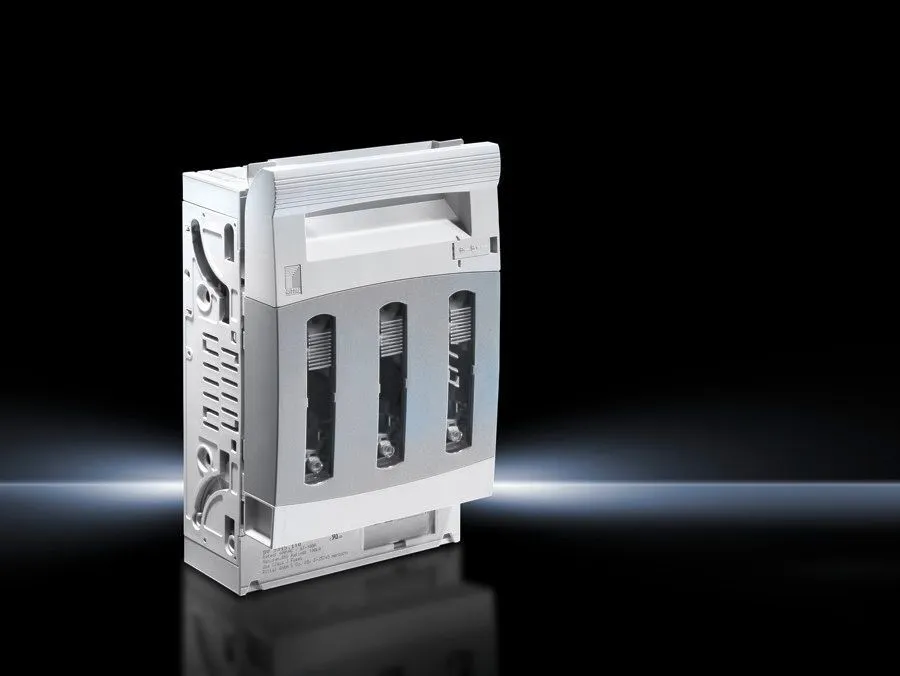

Rittal SV 9345.100 Fuse Holder - Class J, 600 V
Part Number: 9345100
Manufacturer
Rittal
Part number
9345100
Category
Alt Part Number
SV 9345.100
Quick Summary
Rittal SV 9345.100 Fuse Holder enables safe, centralized protection for RiLine busbar systems in industrial control panels. Engineers often face space constraints and inconsistent fuse seating that slow maintenance and compromise safety. The design meets UL 508, UL 248-8, and the UL 94‑V0 material standard, with UL-listed accessory status when used on RiLine busbars, ensuring compliance and safety. With a 3-pole configuration for Class J fuses and 60 mm center-to-center spacing, it delivers reliable protection without forcing extensive panel redesign. This solution blends robust electrical performance with installation accessibility, supporting uptime, regulatory compliance, and total cost of ownership improvements.
Product Information
Extended Description
9345100 Rittal: SV Fuse holder, Class J, 61-100 A, 600 V, 3-pole, (60 mm)
Article number
SV 9345.100
Design
For category J fuse type
Material
Polyamide | Fire protection corresponding to UL 94-V0 | Contact tracks: Electrolytic copper, silver-plated
Colour
Chassis: RAL 7035 | Cover: RAL 7035/7001
Connection for round conductor
AWG 2 – MCM 300
For bar systems with centre-to-centre spacing
60 mm
Cable outlet
Top/bottom
Type of electrical connection
Box terminal
For fuse type (class)
J
Rated operating current max.
100 A
Rated operating current (min.)
61 A
Fuse standard
UL 248-8
Note
UL (listed accessory) is met when using the fuse holder on RiLine busbar systems
Standards
UL 508
Dimensions
Width: 184 mm | Height: 288 mm
To fit fuses
Diameter: 29 mm | Length: 118 mm
To fit busbars
Height: 5, 10 mm
Rated operating voltage
600 V, 3~
Electrical ratings UL (SCCR)
100 kA - 600 V, Fuse Class J max. 100 A, JDDZ/7
Number of poles
3-pole
Packs of
1 pc(s).
Weight/pack
2.62 kg
Copper weight (kg per piece)
0.837
Customs tariff number
85366990
EAN
4028177615656
ETIM 9
EC001900
ECLASS 8.0
27400613
Product description
SV Fuse holder, Class J, 61-100 A, 600 V, 3-pole, (60 mm)
Feature: 3-pole Class J fuse holder designed for 61–100 A at 600 V. Business Impact: Delivers reliable, standardized protection for high-demand circuits, minimizing the risk of nuisance tripping and enabling predictable maintenance schedules. Application: Suited for RiLine busbar installations in control cabinets where space is at a premium and fuse coordination matters. Feature: 60 mm centre-to-centre spacing. Business Impact: Enables modular panel designs and quick retrofits across existing rigs, reducing engineering time and cabinet depth. Application: Ideal for multi-pole protection schemes on 60 mm busbar systems. Feature: Top/bottom cable outlets and box terminal connection. Business Impact: Simplifies wiring, lowers assembly time, and improves heat dissipation with flexible routing. Application: Fast installation in new builds and upgrades. Feature: Material and fire performance rated to UL 94-V0; copper contact tracks. Business Impact: Enhances safety margins and conductivity with durable, heat-resistant components. Application: Harsh industrial environments requiring long-term reliability. Feature: Standards compliance including UL 508 and UL 248-8; 100 kA SCCR. Business Impact: Reduces compliance risk and supports safety-critical applications with high fault current withstand. Application: Mission-critical factory automation and power distribution panels. Feature: Overall dimensions and compatibility (184 mm width, 288 mm height; 29 mm fuse diameter, 118 mm length). Business Impact: Predictable fit within standard enclosures, minimizing design changes and enabling repeatable installs. Application: Panel builders integrating standardized fuse holders with RiLine busbars. Industry Insight: Using the SV 9345.100 streamlines audits and preventive maintenance by aligning with common biasing and seating standards, improving install consistency across sites.
