Rittal SV 9345.600 Circuit-breaker adaptor - 65 kA UL SCCR
Part Number: 9345600
Manufacturer
Rittal
Part number
9345600
Category
Alt Part Number
SV 9345.600
Quick Summary

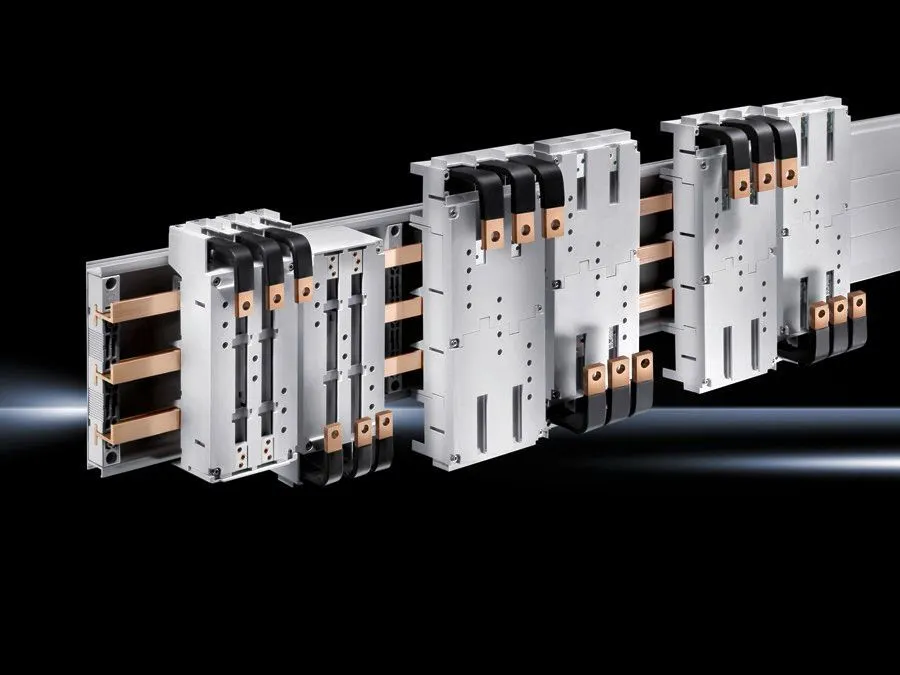

SV 9345.600 circuit-breaker adaptor enables universal, simplified mounting of three-pole circuit-breakers in 60 mm busbar centers. Designers often struggle with incompatible breakers and mounting schemes that increase installation time and risk wiring errors. This adaptor delivers UL SCCR 65 kA at 480 V and UL 94-V0 fire protection, with broad ABB compatibility and robust materials. By standardizing mounting interfaces, it reduces part proliferation and simplifies maintenance, while supporting scalable switchgear configurations and compliant, efficient assemblies across industrial environments.
Product Information
Extended Description
9345600 Rittal: SV Circuit-breaker component adaptor, 250 A, 690 V, 3-pole, cable outlet top, with connection straps
Article number
SV 9345.600
Material
Polyamide | Fire protection corresponding to UL 94-V0
Colour
RAL 7035
Supply includes
Connection straps | Sliding blocks
Rated current max.
250 A
Rated operating voltage
690 V, 3~
Electrical ratings UL (SCCR)
65 kA - 480 V, circuit breaker max. 250 A, DIVQ/7
Cable outlet
Top
For bar systems with centre-to-centre spacing
60 mm
Note
Cable outlet: Switch outlet or as outgoing cable from the switchgear
Number of poles
3-pole
Dimensions
Width: 105 mm | Height: 240 mm
To fit busbars
Height: 5, 10 mm
To fit manufacturer (model)
ABB (S3, T3, T4/320 A, T3 UL, T4 UL, XT3, XT4)
Packs of
1 pc(s).
Weight/pack
1.508 kg
Copper weight (kg per piece)
0.77
Customs tariff number
85369095
EAN
4028177679962
ETIM 9
EC001531
ECLASS 8.0
27370304
Product description
SV Circuit-breaker component adaptor, 250 A, 690 V, 3-pole, cable outlet top, with connection straps
Feature → Business Impact → Application: The SV 9345.600 offers a three-pole adaptor rated to 250 A at 690 V, enabling reliable three-phase distribution for high-demand panels. This translates to faster installation, reduced part variety, and improved safety during assembly in switchgear cabinets. Application: suitable for ABB S3, T3, T4/320 A, T3 UL, T4 UL, XT3, XT4 models, with 60 mm centre-to-centre busbar spacing for streamlined retrofits and upgrades. Feature → Business Impact → Application: Top cable outlet with included connection straps and sliding blocks simplifies wiring routing and service access. Application: ideal where space is constrained inside compact enclosures, enabling tidy, compliant terminations. Feature → Business Impact → Application: Polyamide body with UL 94-V0 fire rating provides flame retardancy and long-term durability. Application: critical in confined switchgear environments requiring stringent safety compliance. Feature → Business Impact → Application: Weight and package details (1.508 kg per pack; 1 pc per pack) support predictable shipping and on-site handling. Application: convenient inventory planning and lean logistics for project-based deployments. Feature → Business Impact → Application: Documentation and standards coverage (UL SCCR, EAN, ETIM 9, ECLASS 8.0) streamline procurement, QA, and cross-system integration. Application: reduces audit time and accelerates parts qualification for industrial automation projects.
Get a Quick Quote for a Rittal 9345600
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9345600?
Enquire Now
FAQs
The adaptor is designed for ABB models including S3, T3, T4/320 A, T3 UL, T4 UL, and XT3/XT4 series, with a 60 mm centre-to-centre busbar spacing. It uses top cable outlet routing and ships with connection straps and sliding blocks to simplify mounting and ensure a secure fit in standard 60 mm busbar assemblies.
The SV 9345.600 supports up to 250 A and 690 V in a 3-pole configuration, with UL SCCR rated at 65 kA at 480 V. These ratings matter because they define safe fault-current handling and voltage compatibility in distributed switchgear, ensuring reliable protection and compliant operation in industrial panels.
Yes. It is specifically designed for panel-mmounted, 3-pole circuit-breaker integration in 60 mm busbar systems, with a top cable outlet and compatibility with common ABB models. The assembly is intended to reduce wiring complexity and improve serviceability in industrial distribution cabinets.
Key standards include UL 94‑V0 fire rating for the polyamide body and UL SCCR of 65 kA at 480 V for high-current applications. The product also aligns with EAN 4028177679962, ETIM 9 EC001531, and ECLASS 8.0 27370304 to support procurement, classification, and cross-system integration.
The adaptor ships with connection straps and sliding blocks, reducing the number of separate mounting components. Its standardized 60 mm spacing and ABB compatibility shorten installation time, lower labor costs, and simplify future upgrades or maintenance, producing tangible efficiency gains in project-based automation deployments.
