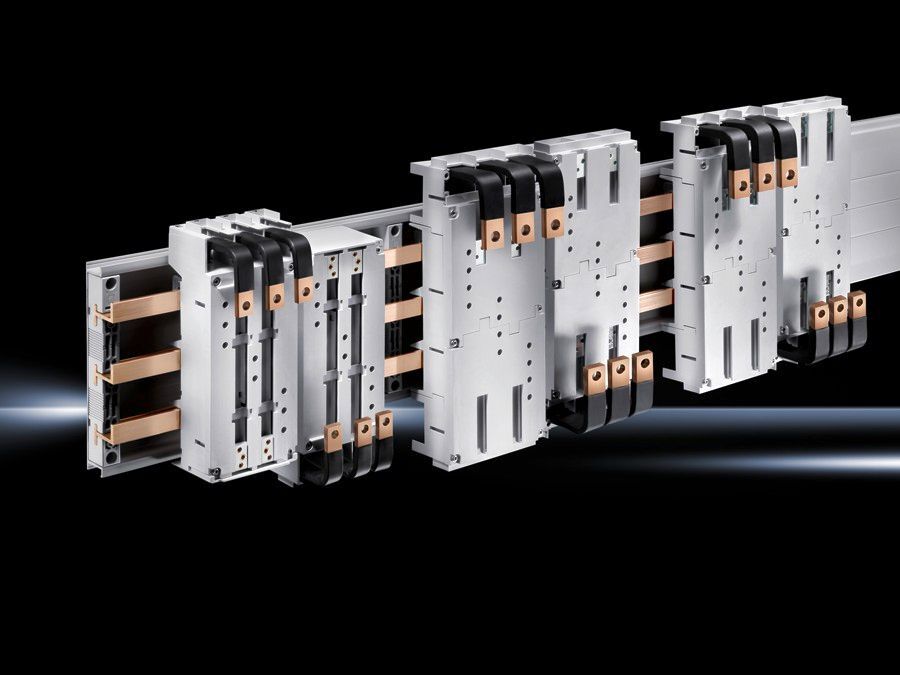

Rittal SV 9345.610 Circuit-breaker Adaptor - UL 65 kA
Part Number: 9345610
Manufacturer
Rittal
Part number
9345610
Category
Alt Part Number
SV 9345.610
Quick Summary
Rittal SV 9345.610 Circuit-breaker adaptor enables universal, simplified assembly of circuit-breakers in industrial switchgear. This adaptor addresses the common challenge of mismatched mounting patterns by providing a 3-pole, bottom cable outlet design that fits ABB S3, T3, T4 models and other compatible breakers. The component is rated for 250 A and 690 V, with UL SCCR performance up to 65 kA at 480 V and a UL 94-V0 fire rating for the housing. With its 60 mm center-to-center busbar compatibility and clearly defined dimensions, it accelerates commissioning while maintaining safety margins. Using Rittal hardware reduces mounting errors, minimizes wiring complexity, and supports scalable panel layouts for growing automation demands.
Product Information
Extended Description
9345610 Rittal: SV Circuit-breaker component adaptor, 250 A, 690 V, 3-pole, cable outlet bottom, with connection straps
Article number
SV 9345.610
Material
Polyamide | Fire protection corresponding to ULÂ 94-V0
Colour
RAL 7035
Supply includes
Connection straps | Sliding blocks
Rated current max.
250 A
Rated operating voltage
690 V, 3~
Electrical ratings UL (SCCR)
65 kA - 480 V, circuit breaker max. 250 A, DIVQ/7
Cable outlet
Bottom
For bar systems with centre-to-centre spacing
60 mm
Note
Cable outlet: Switch outlet or as outgoing cable from the switchgear
Number of poles
3-pole
Dimensions
Width:Â 105 mm | Height:Â 240 mm
To fit busbars
Height: 5, 10 mm
To fit manufacturer (model)
ABB (S3, T3, T4/320 A, T3 UL, T4 UL, XT3, XT4)
Packs of
1 pc(s).
Weight/pack
1.515 kg
Copper weight (kg per piece)
0.77
Customs tariff number
85369095
EAN
4028177679986
ETIM 9
EC001531
ECLASS 8.0
27370304
Product description
SV Circuit-breaker component adaptor, 250 A, 690 V, 3-pole, cable outlet bottom, with connection straps
Feature: 3-pole adaptor design provides universal mounting for ABB S3, T3, T4 breakers. Business Impact: standardizes interfaces across models, cutting installation time and reducing risk of misalignment. Application: accelerates panel builds in 60 mm busbar spacing environments. Feature: Bottom cable outlet improves wiring safety and simplifies cable management, reducing stress on switchgear terminations. Business Impact: safer installations and easier future maintenance. Application: relevant for compact layouts where top outlets conflict with components. Feature: Includes connection straps and sliding blocks for secure mounting. Business Impact: speeds assembly while ensuring robust mechanical stability. Application: ideal for high-volume panel shops and modular switchgear. Feature: Polyamide housing with UL 94-V0 rating and UL SCCR of 65 kA supports fire safety and high fault-current performance. Business Impact: compliance with stringent safety standards and reduced rework. Application: suitable for demanding 690 V distributions. Feature: Defined dimensions and weight (105 mm width, 240 mm height; 1.515 kg pack; copper 0.77 kg) enable accurate fit and handling. Business Impact: predictable logistics and safer field installation. Application: aids in BOM planning and installation timing for large electrical cabinets.
Get a Quick Quote for a Rittal 9345610
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9345610?
Enquire Now
FAQs
The SV 9345.610 adaptor is designed to mount 3-pole circuit-breakers and is compatible with ABB S3, T3, T4 models and similar devices. It supports 60 mm center-to-center busbar spacing and accommodates bottom cable outlets, making it suitable for compact switchgear in industrial environments.
The bottom cable outlet provides a clear exit path for outgoing cables, reducing cable bending and interference with adjacent components. This configuration simplifies cable management, minimizes strain on terminations, and supports safer, more maintainable wiring within 690 V distributions.
The adaptor is rated for 250 A and 690 V (3~) with UL SCCR performance up to 65 kA at 480 V. The housing material is UL 94‑V0 compliant, indicating strong fire-retardant properties, which supports safety compliance in demanding electrical assemblies.
Yes. The adaptor is specifically designed to fit ABB S3, T3, and T4 family breakers and supports 60 mm busbar spacing. Its 3-pole design and mounting interfaces standardize installation across multiple models, reducing engineering variation and commissioning time.
Key factors include the included connection straps and sliding blocks for fast, secure mounting, the bottom cable outlet for neater wiring, and the defined 105 mm by 240 mm footprint. These features minimize field adjustments, improve first-pass accuracy, and lower the total cost of ownership for retrofits and new builds.
