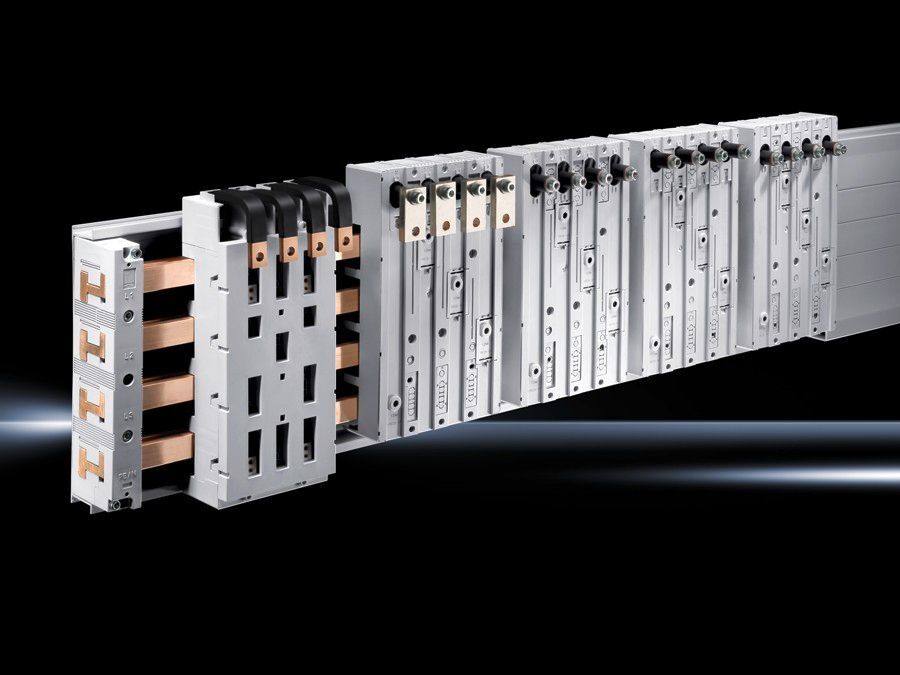

Rittal 9345614 SV Circuit-breaker adaptor - UL 65 kA SCCR
Part Number: 9345614
Manufacturer
Rittal
Part number
9345614
Category
Alt Part Number
SV 9345.614
Quick Summary
SV Circuit-breaker adaptor from Rittal provides a compact bottom-outlet connection solution for 4-pole switchgear. Engineers often wrestle with mounting compatibility and safe cable management in confined spaces. Its UL 65 kA SCCR rating and UL 94 V0 fire-rated polyamide housing support safe, compliant installations. Designed to fit 60 mm busbar centers and ABB T3S XT3 models, it accelerates installation while improving reliability and traceability. With cable outlet at the bottom and included connection straps, it simplifies wiring and service access. For procurement and maintenance teams, this means faster installation, lower error rates, and predictable lifecycle costs. In high-volume build-outs, its 1 piece per pack and documented compatibility with 60 mm busbars supports scalable, repeatable configurations.
Product Information
Extended Description
9345614 Rittal: SV Circuit-breaker component adaptor, 250 A, 690 V, 4-pole, cable outlet bottom, with connection straps
Article number
SV 9345.614
Material
Polyamide | Fire protection corresponding to ULÂ 94-V0
Colour
RAL 7035
Supply includes
Connection straps | Sliding blocks
Rated current max.
250 A
Rated operating voltage
690 V, 4~
Electrical ratings UL (SCCR)
65 kA - 480 V, circuit breaker max. 250 A, DIVQ/7
Cable outlet
Bottom
For bar systems with centre-to-centre spacing
60 mm
Note
Cable outlet: Switch outlet or as outgoing cable from the switchgear
Number of poles
4-pole
Dimensions
Width:Â 140 mm | Height:Â 310 mm
To fit busbars
Height: 5, 10 mm
To fit manufacturer (model)
ABB (T3S, XT3)
Packs of
1 pc(s).
Weight/pack
2.502 kg
Copper weight (kg per piece)
1.134
Customs tariff number
85369095
EAN
4028177679993
ETIM 9
EC001531
ECLASS 8.0
27370304
Product description
SV Circuit-breaker component adaptor, 250 A, 690 V, 4-pole, cable outlet bottom, with connection straps
The SV adaptor is a 4-pole component designed for 250 A at 690 V, featuring a bottom cable outlet and supplied connection straps for quick mounting. This configuration reduces wiring complexity and helps ensure orderly cable routing, which directly improves maintenance efficiency and traceability in panel assemblies. The 60 mm center-to-center busbar spacing compatibility simplifies enclosure design and interchangeability with ABB T3S XT3 models, enabling faster scoping and sourcing during projects. The polyamide housing offers UL 94 V0 fire protection, enhancing safety margins in cabinet environments and helping meet regulatory expectations. The unit weighs 2.502 kg per pack with copper weight of 1.134 kg, balancing robustness with manageable installation weight. Documentation supports easy procurement and predictable lead times for 1 piece packs. This adaptor is well suited for Rittal and ABB based turnkey builds, reducing part variety and installation risk.
Get a Quick Quote for a Rittal 9345614
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9345614?
Enquire Now
FAQs
The SV 9345.614 adaptor is designed for 60 mm busbar center systems and is compatible with ABB T3S and XT3 switchgear configurations. It features a bottom cable outlet and a 4-pole arrangement rated up to 250 A at 690 V, making it suitable for compact panel builds where space and wiring clarity are critical.
Key specifications include a rated current of 250 A, rated operating voltage of 690 V (4 conductor), and UL SCCR of 65 kA at 480 V. The housing material is polyamide with UL 94 V0 fire protection, contributing to flame retardancy and safety in enclosed electrical cabinets.
Yes. The bottom cable outlet, along with supplied connection straps and sliding blocks, simplifies wiring routes and access for service work. Its compact footprint and 60 mm busbar spacing align with common maintenance practices, helping technicians reach connections without removing major components.
The product is sold in packs of one unit per package. Each adaptor includes connection straps and sliding blocks necessary for installation. The item is designed for straightforward integration with ABB T3S XT3 and similar 60 mm center-to-center busbar systems, ensuring repeatable installations across multiple panels.
The adaptor carries UL SCCR 65 kA ratings and UL 94 V0 material, supporting fault tolerance and fire safety compliance in industrial environments. Its compatibility with ABB T3S XT3 and 60 mm busbar centers enables scalable upgrades within existing switchgear layouts while preserving wiring integrity and traceability.
