Rittal SV 9345.700 Circuit-breaker Adaptor - UL 65 kA
Part Number: 9345700
Manufacturer
Rittal
Part number
9345700
Category
Alt Part Number
SV 9345.700
Quick Summary
The Rittal SV 9345.700 circuit-breaker adaptor enables universal, simplified assembly of 3-pole breakers in compact switchgear. For engineers, mismatched mounting brackets and multiple tools across brands can slow projects and raise wiring risk. This adaptor uses UL94-V0 fire-rated polyamide and delivers UL SCCR of 65 kA at 480 V for reliable safety and performance. Standardized mounting with top cable outlet, plus included connection straps and sliding blocks, reduces parts complexity and speeds commissioning; it also supports ABB S5/T5 UL models and Siemens VL630 when paired with the required strip. In practice, this translates to shorter installation times, fewer field modifications, and a lower total cost of ownership for panel builders. The device also accommodates busbars with 60 mm centre-to-centre spacing and height adjustments of 5–10 mm for flexible layouts.
Product Information
Extended Description

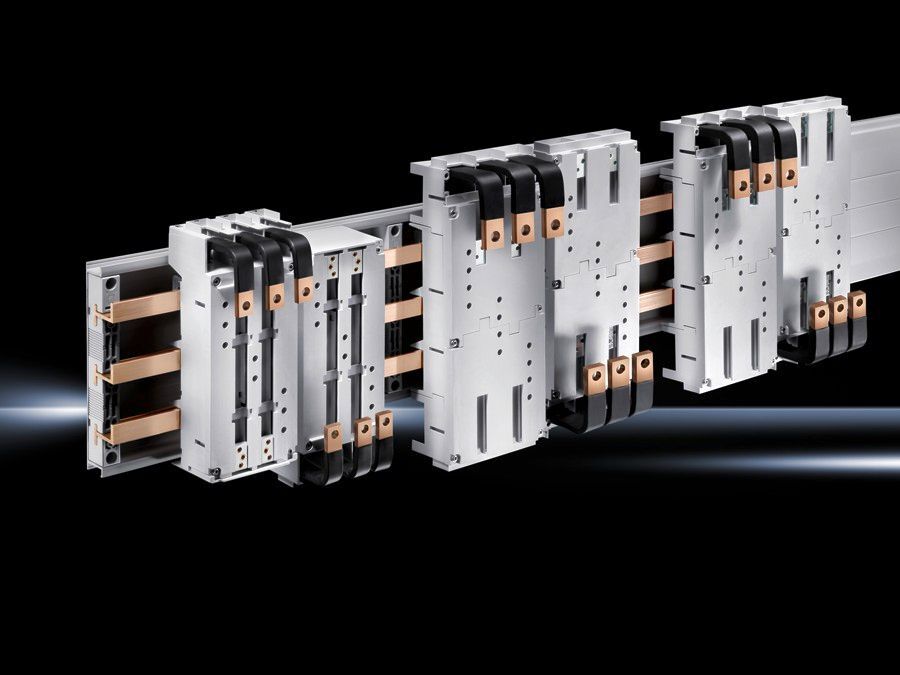

9345700 Rittal: SV Circuit-breaker component adaptor, 630 A, 690 V, 3-pole, cable outlet top, with connection straps
Article number
SV 9345.700
Material
Polyamide | Fire protection corresponding to ULÂ 94-V0
Colour
RAL 7035
Supply includes
Connection straps | Sliding blocks
Rated current max.
630 A
Rated operating voltage
690 V, 3~
Electrical ratings UL (SCCR)
65 kA - 480 V, circuit breaker max. 600 A, DIVQ/7
Cable outlet
Top
For bar systems with centre-to-centre spacing
60 mm
Note
Cable outlet: Switch outlet or as outgoing cable from the switchgear
Number of poles
3-pole
Note on Model No.
When using the Siemens VL630 switchgear, insert strip 9342.720 is additionally required
Dimensions
Width:Â 140 mm | Height:Â 345 mm
To fit busbars
Height: 5, 10 mm
To fit manufacturer (model)
ABB (S5, T5, T5 UL)
Packs of
1 pc(s).
Weight/pack
3.77 kg
Copper weight (kg per piece)
2.44
Customs tariff number
85369095
EAN
4028177680005
ETIM 9
EC001531
ECLASS 8.0
27370304
Product description
SV Circuit-breaker component adaptor, 630 A, 690 V, 3-pole, cable outlet top, with connection straps
Feature: 3-pole, 630 A, 690 V ratings with top cable outlet. Business impact: Enables high-power, clean wiring with a single adaptor, reducing part count and minimising wiring errors in dense switchgear. Application: Suitable for 630 A circuit-breaker assemblies in 690 V systems with top-entry cables, aligned to 60 mm busbar spacing. The adaptor streamlines procurement and installation in power distribution projects. Feature: Includes connection straps and sliding blocks. Business impact: Speeds mounting and aligns components precisely, shortening commissioning time and lowering on-site labour costs. Application: Ideal for panel builds where rapid, repeatable mounting is required across multiple brands. Feature: UL94-V0 material and UL SCCR 65 kA at 480 V. Business impact: Enhances safety compliance and fault-duty performance, reducing risk of fire events and improving protection margins. Application: Critical in industrial cabinets with stringent safety and reliability standards. Feature: Dimensional footprint Width 140 mm, Height 345 mm; weight 3.77 kg per pack; copper weight 2.44 kg. Business impact: Predictable enclosure fit and handling for shipping, inventory, and installation planning. Application: Useful when replacing or upgrading within existing enclosures. Feature: Compatibility notes for model alignment (ABB S5/T5 UL; Siemens VL630 with 9342.720 strip). Business impact: Minimises SKU proliferation and supports cross-brand deployments. Application: Ideal for multi-vendor sites seeking standardized mounting interfaces. Feature: Busbar and mounting flexibility (60 mm spacing; 5–10 mm height fit). Business impact: Supports diverse switchgear configurations and future-proofing, enabling scalable layouts. Application: Useful in retrofits and modular panel construction.
Get a Quick Quote for a Rittal 9345700
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9345700?
Enquire Now
FAQs
The SV 9345.700 adaptor is designed for universal 3-pole circuit-breaker mounting in switchgear up to 630 A and 690 V. It features a top cable outlet and works with busbar centers around 60 mm. For Siemens VL630, use the 9342.720 strip as noted by the model documentation to ensure a secure fit.
Key ratings include a maximum current of 630 A and a rated operating voltage of 690 V (3-phase). The unit supports UL SCCR up to 65 kA at 480 V and uses UL94-V0 fire-rated polyamide material, enhancing flame resistance and safety compliance in panel installations.
Yes. The adaptor is compatible with ABB S5 and T5 UL models and can be used with Siemens VL630 when paired with the required 9342.720 strip. This cross-brand compatibility helps standardize assemblies and reduces the number of bespoke brackets needed on multi-brand sites.
The package includes connection straps and sliding blocks, which simplify mounting and alignment. The top cable outlet provides straightforward wiring entry, reducing cabling complexity and assembly steps. Together, these features speed commissioning and improve repeatability across multiple enclosures.
Using the SV 9345.700 can lower total cost of ownership by reducing parts variety, accelerating installation, and minimizing field modifications. With standardized mounting and compatible interfaces for common brands, projects see faster timelines, fewer errors, and more predictable maintenance planning in ongoing power distribution tasks.
