Rittal SV 9345.710 Adaptor - 65 kA SCCR 630A 690V
Part Number: 9345710
Manufacturer
Rittal
Part number
9345710
Category
Alt Part Number
SV 9345.710
Quick Summary
SV 9345.710 Adaptor from Rittal is a circuit-breaker adaptor that enables universal, simplified assembly of circuit-breakers for modular switchgear. Engineers face mounting misalignments and brand discrepancies that slow wiring and raise risk; this adaptor standardizes connections and supports common busbar centers. It carries UL 94‑V0 fire protection and a robust 65 kA SCCR rating at 480 V, underscoring safety in high‑power panels. The design also accommodates 60 mm center‑to‑center busbars and a bottom cable outlet, improving wiring routes and serviceability. With ABB S5 UL compatibility and ready‑to‑fit connection straps, it reduces installation time and procurement complexity while delivering reliable performance in demanding electrical distribution applications.
Product Information
Extended Description

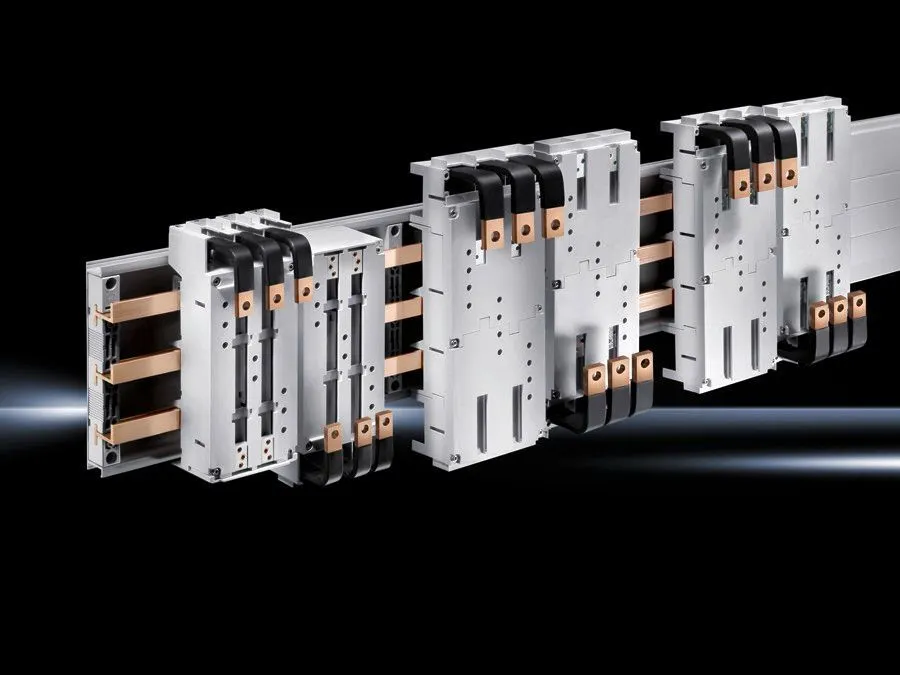

9345710 Rittal: SV Circuit-breaker component adaptor, 630 A, 690 V, 3-pole, cable outlet bottom, with connection straps
Article number
SV 9345.710
Material
Polyamide | Fire protection corresponding to UL 94-V0
Colour
RAL 7035
Supply includes
Connection straps | Sliding blocks
Rated current max.
630 A
Rated operating voltage
690 V, 3~
Electrical ratings UL (SCCR)
65 kA - 480 V, circuit breaker max. 600 A, DIVQ/7
Cable outlet
Bottom
For bar systems with centre-to-centre spacing
60 mm
Note
Cable outlet: Switch outlet or as outgoing cable from the switchgear
Number of poles
3-pole
Note on Model No.
When using the Siemens VL630 switchgear, insert strip 9342.720 is additionally required
Dimensions
Width: 140 mm | Height: 345 mm
To fit busbars
Height: 5, 10 mm
To fit manufacturer (model)
ABB (S5, T5, T5 UL)
Packs of
1 pc(s).
Weight/pack
3.774 kg
Copper weight (kg per piece)
2.44
Customs tariff number
85369095
EAN
4028177680012
ETIM 9
EC001531
ECLASS 8.0
27370304
Product description
SV Circuit-breaker component adaptor, 630 A, 690 V, 3-pole, cable outlet bottom, with connection straps
Feature is a circuit-breaker adaptor for 630 A at 690 V, enabling universal, simplified assembly of circuit-breakers. Business impact is faster, safer installation with reduced field wiring errors and standardized mounting; application spans Rittal, ABB, and VL630-compatible switchgear so engineers can deploy across mixed panels. Feature ensuring bottom cable outlet improves cable routing and reduces space, which translates to higher panel density and easier service. Application includes 3-pole configurations with 60 mm busbar centers, supporting compact, compliant switchgear layouts in data centers and manufacturing floors. Feature of connection straps and sliding blocks shortens assembly time, lowers labor cost, and enhances mechanical stability under vibration in industrial environments. This adaptor also aligns with UL 94‑V0 material certification for safer enclosure interiors and longer service life across harsh factory conditions.
Get a Quick Quote for a Rittal 9345710
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9345710?
Enquire Now
FAQs
The SV 9345.710 adaptor is designed for universal circuit-breaker assembly in modular switchgear and is compatible with ABB S5 UL models and other similar systems. It also notes the Siemens VL630 compatibility with the optional 9342.720 strip when used in that family. For other brands, verify busbar center spacing of 60 mm and 3-pole configuration to ensure correct fitment.
Key ratings include a rated current up to 630 A and rated operating voltage of 690 V (3-phase). The UL SCCR rating is 65 kA at 480 V, and the adaptor supports a 3-pole configuration with bottom cable outlet. These specs support safe operation in high‑power switchgear while preserving flexibility for diverse distributions.
For ABB S5 UL, the adaptor is designed to integrate with these assemblies, offering straightforward mounting with connection straps and sliding blocks. When using VL630 Siemens gear, you may need accessory strip 9342.720 to ensure proper mechanical alignment. Always confirm a 60 mm busbar center and the 3‑pole configuration for a seamless fit.
Dimensions are Width 140 mm and Height 345 mm. The unit weighs 3.774 kg per pack, with copper weight of 2.44 kg per piece. Material is Polyamide with UL 94‑V0 fire protection, and the color is RAL 7035. These attributes support reliable enclosure fit and safe operation within standard Rittal enclosures.
The adaptor standardizes circuit-breaker assemblies, reducing installation time and wiring errors, which lowers labor costs and commissioning risk. It supports 60 mm busbar centers for compact layouts, improves serviceability with a bottom cable outlet, and provides robust safety ratings (UL 94‑V0, 65 kA SCCR). In multi-brand environments, it helps procurement simplify sourcing and ensure consistent performance.
