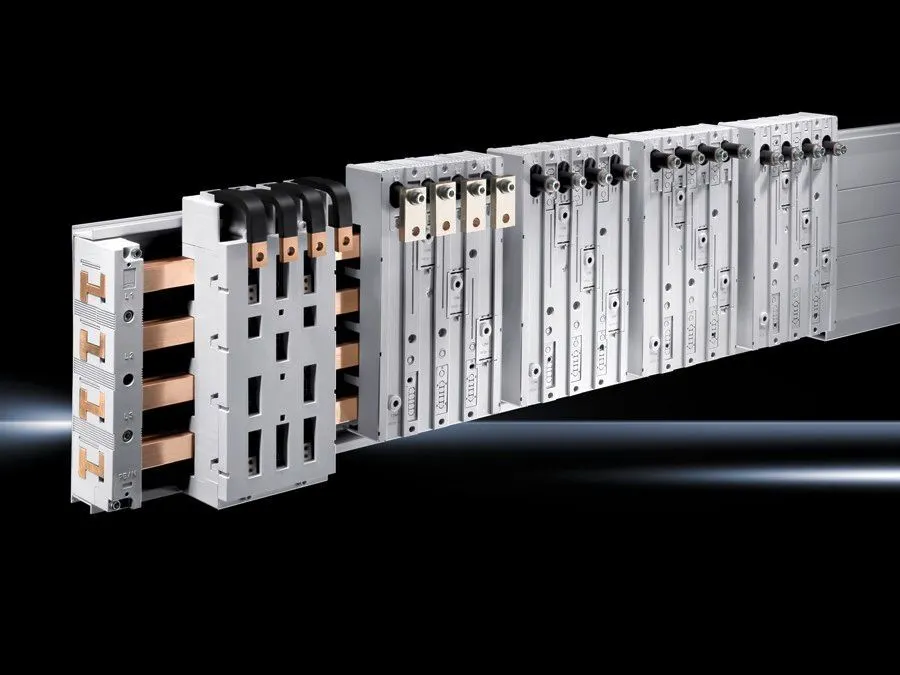

Rittal SV 9345.734 Circuit-breaker adaptor - UL 94-V0
Part Number: 9345734
Manufacturer
Rittal
Part number
9345734
Category
Alt Part Number
SV 9345.734
Quick Summary
Rittal SV 9345.734 is a circuit-breaker adaptor designed for 500 A, 690 V switchgear applications. Engineers often struggle with finding a compatible, durable adapter that fits Siemens VL400 configurations and 60 mm center-to-center busbar spacing. The design incorporates UL 94-V0 fire-rated polyamide and CE-compliant construction to support European standards. This combination delivers reliable performance in demanding environments while aligning with procurement and maintenance workflows. By offering straightforward installation, clear documentation, and robust materials, this part helps reduce field rework, accelerate projects, and improve uptime across panel assemblies. For buyers seeking 4-pole integrity and tidy cable routing, it delivers measurable business value alongside technical compliance.
Product Information
Extended Description
9345734 Rittal: SV Circuit-breaker component adaptor, 500 A, 690 V, 4-pole, cable outlet bottom, for switchgear make:, Siemens
Article number
SV 9345.734
Material
Polyamide | Fire protection corresponding to UL 94-V0
Colour
RAL 7035
Supply includes
Copper spacer roll | Connection screws
Rated current max.
500 A
Rated operating voltage
690 V, 4~
Cable outlet
Bottom
For bar systems with centre-to-centre spacing
60 mm
Note
Cable outlet: Switch outlet or as outgoing cable from the switchgear
Number of poles
4-pole
Dimensions
Width: 185 mm | Height: 300 mm
To fit busbars
Height: 5, 10 mm
To fit manufacturer (model)
Siemens
To fit manufacturer (model)
Siemens (VL400)
Packs of
1 pc(s).
Weight/pack
3.489 kg
Copper weight (kg per piece)
2.103
Customs tariff number
85369095
EAN
4028177684546
ETIM 9
EC001531
ECLASS 8.0
27370304
Product description
SV Circuit-breaker component adaptor, 500 A, 690 V, 4-pole, cable outlet bottom, for switchgear make:, Siemens
Feature: 4-pole adaptor rated for 500 A at 690 V; Business Impact: Enables high-current distribution within compact switchgear, reducing parallel components and potential fault points; Application: Siemens VL400-compatible circuit-breaker assemblies. Feature: Bottom cable outlet for clean cable management; Business Impact: Simplifies routing and service access, lowering installation time and risk of accidental contact; Application: New builds and retrofit projects in control panels. Feature: UL 94-V0 fire-rated polyamide with CE-compliant design; Business Impact: Improves safety compliance and reduces insurance/traceability concerns; Application: European switchgear environments. Feature: Copper spacer roll and connection screws supplied; Business Impact: Accelerates installation, ensures proper spacing, and minimizes sourcing steps; Application: Field assemblies and factory builds. Feature: 60 mm center-to-center busbar compatibility and Siemens VL400 fit; Business Impact: Ensures precise alignment, minimizes adjustment work, and supports scalable layouts; Application: Modular switchgear with standard busbar grids. Feature: 185 mm x 300 mm footprint with 3.489 kg per pack and copper weight 2.103 kg; Business Impact: Stable, rigid mounting reduces vibration and wear; Application: Heavy-duty control cabinets and distribution panels. These features collectively address common objections around fit, safety, and maintenance while aligning with long-tail search intents such as “Siemens VL400 adaptor” and “60 mm busbar spacing.”
Get a Quick Quote for a Rittal 9345734
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9345734?
Enquire Now
FAQs
The SV 9345.734 is designed for Siemens VL400 switchgear configurations and matches a 60 mm centre-to-centre busbar spacing. It supports a 4-pole arrangement with a bottom cable outlet, making it suitable for both new builds and retrofits in compact switchgear assemblies.
Key specs include a rated current of up to 500 A and a rated operating voltage of 690 V (3-phase). It is a 4-pole adaptor with a bottom cable outlet to accommodate orderly cable routing and safe termination in high-current distributions.
Included copper spacer roll and connection screws, combined with a fixed 60 mm busbar spacing and 185 mm by 300 mm footprint, reduce mounting adjustments and sourcing steps. This translates to faster commissioning and less field rework, especially in Siemens VL400-based panels.
The part uses UL 94-V0 fire-rated polyamide material and is CE-compliant for European switchgear applications, supporting safety and regulatory requirements in industrial environments. ETIM EC001531 and ECLASS 27370304 classifications also help with cataloging and procurement workflows.
By ensuring a reliable, plug-and-play fit with Siemens VL400 and 60 mm busbars, it minimizes field rework, accelerates installation, and enhances long-term reliability in high-current distributions, providing tangible cost savings in maintenance and downtime reduction.
