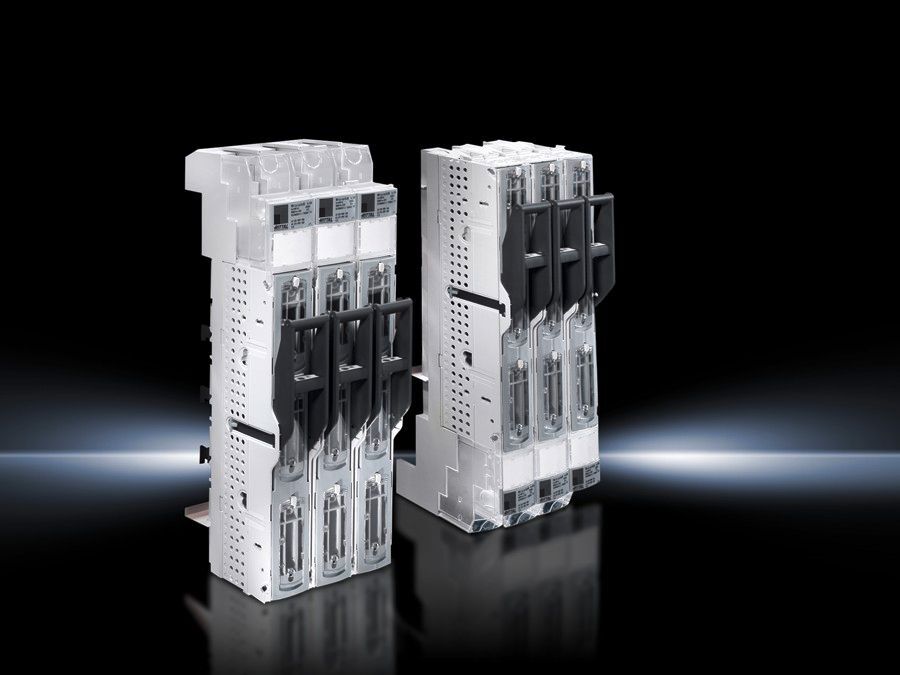

Rittal SV 9346.000 Fuse-Switch Disconnector - 3-Pole
Part Number: 9346000
Manufacturer
Rittal
Part number
9346000
Category
Alt Part Number
SV 9346.000
Quick Summary
Rittal SV 9346.000 fuse-switch disconnector is a compact 3-pole protection device designed for industrial control cabinets and switchgear. Operators often struggle with space constraints and the need for reliable isolation in compact panels. This unit meets IEC/DIN EN 60 947-3 and UL 94-V0 fire protection requirements, aligning with modern safety standards. Its fibreglass-reinforced polyamide body combines durability with heat resistance, while a box-terminal connection supports clean, low-resistance wiring. The NH 00 size and 60 mm busbar spacing enable scalable installations in modular systems, and the included mounting hooks simplify retrofits. These features translate into faster commissioning, reduced downtime, and safer, compliant electrical distribution in automation environments.
Product Information
Extended Description
9346000 Rittal: SV NH slimline fuse-switch disconnector, size 00, 160 A, 690 V, 3-pole, box terminal, 60 mm
Article number
SV 9346.000
Material
Fibreglass-reinforced polyamide | Fire protection corresponding to UL 94-V0 | Contact tracks: Silver-plated hard copper
Colour
Chassis: RAL 7035 | Cover: RAL 7001 | Handle: RAL 7016
Supply includes
3 mounting hooks
For bar systems with centre-to-centre spacing
60 mm
Cable outlet
Top/bottom
Type of electrical connection
Box terminal
Rated operating current max.
160 A
For NH size
00
Test specification
IEC/DIN EN 60 947-3
Dimensions
Width: 50 mm | Height: 400 mm
Connection for round conductor
2.5 ‐ 95 mm²
To fit busbars
Height: 5, 10 mm
Rated operating voltage
690 V, 3~
Number of poles
3-pole
Packs of
1 pc(s).
Weight/pack
1.26 kg
Copper weight (kg per piece)
0.75
Customs tariff number
85369095
EAN
4028177628748
ETIM 9
EC001046
ECLASS 8.0
27371402
Product description
SV NH slimline fuse-switch disconnector, size 00, 160 A, 690 V, 3-pole, box terminal, 60 mm
SV 9346.000 uses an NH 00 slimline footprint with a 60 mm busbar spacing and a 3-pole configuration, rated at 160 A and 690 V. This high-density arrangement frees panel space and simplifies wiring, enabling compact protection blocks in modern control cabinets. The durable construction leverages fibreglass-reinforced polyamide with fire protection corresponding to UL 94-V0 and silver-plated copper contact tracks, delivering long service life and reliable switching under demanding industrial conditions. Installation is streamlined by top and bottom cable outlets and the inclusion of three mounting hooks, supporting quick retrofits and neat, accessible wiring within cabinet interiors. The 50 mm wide by 400 mm high footprint suits modular busbar systems and supports 60 mm center-to-center spacing, improving scalability for evolving automation needs. Electrical performance—160 A, 690 V, 3-pole—meets typical panel protection requirements, while the box-terminal connection handles 2.5–95 mm² conductors for versatile wiring. Weight, packaging, and copper content (1.26 kg per pack, 0.75 kg copper) aid BOM planning and maintenance budgeting.
Get a Quick Quote for a Rittal 9346000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9346000?
Enquire Now
FAQs
Install the SV 9346.000 in a compatible Rittal enclosure using the included 3 mounting hooks for secure mounting. Take advantage of the top/bottom cable outlets and the 60 mm busbar spacing to align with existing busbars, ensuring a neat, compliant installation in NH 00 racks.
This device is rated for up to 160 A at 690 V in a 3-pole configuration and accepts 2.5–95 mm² round conductors via the box-terminal connection, with NH 00 sizing and 60 mm busbar spacing to match typical modular systems.
Yes. It conforms to IEC/DIN EN 60 947-3 for electrical safety and features fire protection rated to UL 94-V0, supporting safe operation and regulatory compliance in industrial cabinets.
The package includes 3 mounting hooks to facilitate quick installation, along with the unit itself, designed for easy retrofit into existing 60 mm center-to-center busbar installations.
The fuse-switch disconnector has a width of 50 mm and a height of 400 mm. It ships in packs of 1 piece with a weight of 1.26 kg per pack and a copper weight of 0.75 kg, aiding BOM and logistics planning.
