Rittal SV 9346.015 Fuse-Switch Disconnector - 690V
Part Number: 9346015
Manufacturer
Rittal
Part number
9346015
Category
Alt Part Number
SV 9346.015
Quick Summary
Rittal SV 9346.015 fuse-switch disconnector is a compact 3-pole device designed for safe power switching in industrial control panels. Engineers often struggle with reliable fuse monitoring and space constraints when upgrading legacy cabinets. This solution complies with IEC/DIN EN 60 947-3 and UL 94-V0 fire protection standards, ensuring safe operation and regulatory compliance. Its NH00 slimline footprint and 60 mm busbar compatibility support compact, scalable power distribution in automation and machine-building environments.
Product Information
Extended Description

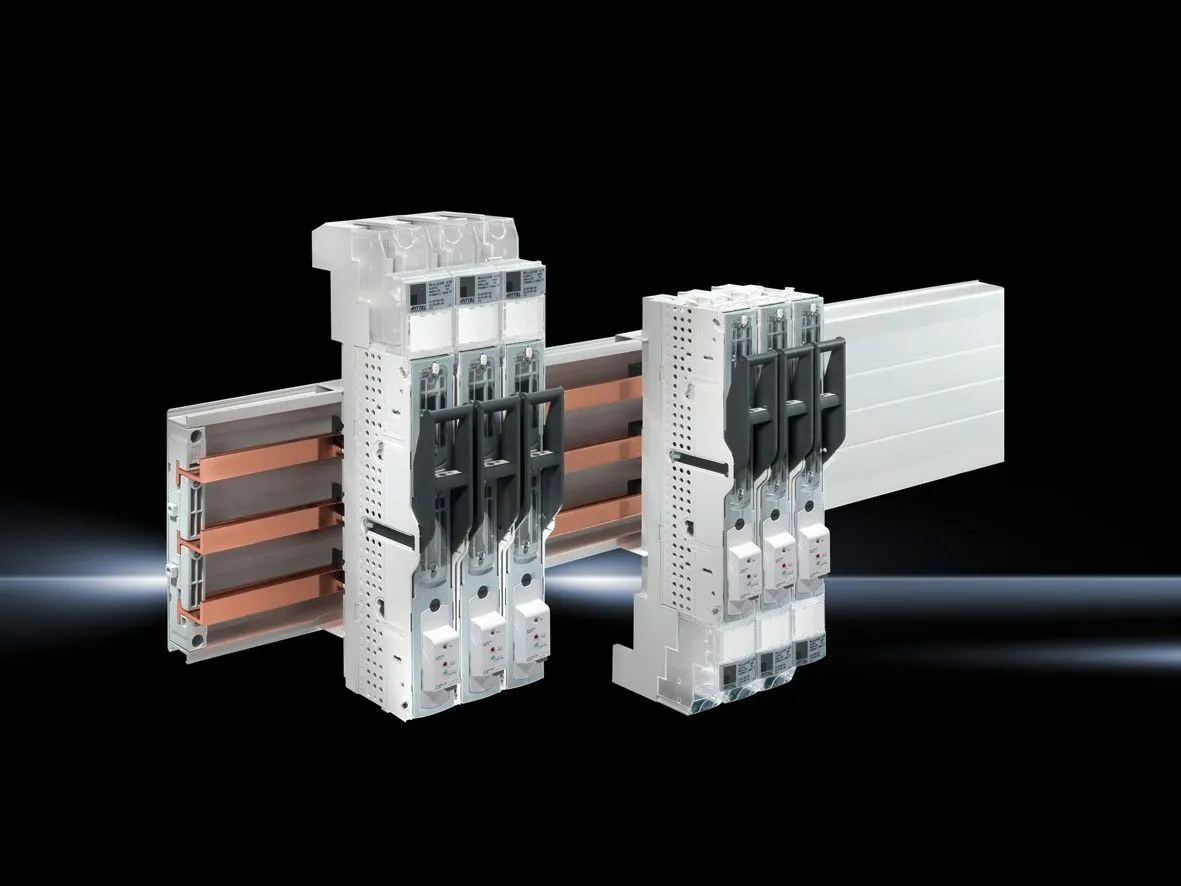

9346015 Rittal: SV NH slimline fuse-switch disconnector, size 00, 160 A, 690 V, 3-pole, screw M8, 60 mm, with electronic fuse monitoring
Article number
SV 9346.015
Material
Fibreglass-reinforced polyamide | Fire protection corresponding to UL 94-V0 | Contact tracks: Silver-plated hard copper
Colour
Chassis: RAL 7035 | Cover: RAL 7001 | Handle: RAL 7016
Supply includes
3 mounting hooks
For bar systems with centre-to-centre spacing
60 mm
Cable outlet
Top/bottom
Type of electrical connection
Screw M8
Rated operating current max.
160 A
For NH size
00
Test specification
IEC/DIN EN 60 947-3
Dimensions
Width: 50 mm | Height: 400 mm
Connection for round conductor
2.5 ‐ 95 mm²
To fit busbars
Height: 5, 10 mm
Rated operating voltage
690 V, 3~
Number of poles
3-pole
Packs of
1 pc(s).
Weight/pack
1.36 kg
Copper weight (kg per piece)
0.73
Customs tariff number
85369095
EAN
4028177668126
ETIM 9
EC001046
ECLASS 8.0
27371402
Product description
SV NH slimline fuse-switch disconnector, size 00, 160 A, 690 V, 3-pole, screw M8, 60 mm, with electronic fuse monitoring
Feature: Slimline NH00 design fits 60 mm busbars and saves panel space. Business Impact: Reduces cabinet width and simplifies retrofits, cutting enclosure costs by enabling denser power circuits. Application: Suitable for industrial automation panels and control cabinets where space is at a premium. Feature: 3-pole design with screw M8 connections for robust electrical contacts. Business Impact: Improves current handling up to 160 A and simplifies wiring, reducing installation time. Application: Three-phase distribution in machine controls and panel boards. Feature: Top/bottom cable outlet with conductor range 2.5–95 mm². Business Impact: Flexible wiring configurations support retrofit projects and complex layouts. Application: Factory automation panels with mixed conductor sizes. Feature: Electronic fuse monitoring integrated into the device. Business Impact: Enables real-time status visibility and faster fault diagnosis, lowering downtime costs. Application: Critical safety circuits in automation lines. Feature: Fibreglass-reinforced polyamide with UL 94-V0 fire protection. Business Impact: Enhances enclosure safety and regulatory compliance, reducing risk and insurance considerations. Application: Harsh manufacturing environments requiring high fire safety performance. Feature: Compatibility with NH size 00 and 60 mm busbar spacing. Business Impact: Quick mounting and scalable expansion for growing control systems. Application: Panel builders upgrading legacy systems to modern, compact power distribution.
Get a Quick Quote for a Rittal 9346015
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9346015?
Enquire Now
FAQs
SV 9346.015 is designed for NH size 00 and a 60 mm busbar spacing, with top or bottom cable outlets and M8 screw connections. This enables straightforward DIN rail mounting in standard control panels and supports quick retrofits without reorganizing entire boards.
The fuse-switch disconnector is rated for up to 160 A at 690 V AC, with a 3-pole configuration. It accepts conductor ranges from 2.5 to 95 mm² and uses a screw M8 connection, delivering robust, reliable three-phase switching for demanding industrial applications.
Yes. The slim NH00 design and 60 mm bar spacing offer a compact footprint ideal for dense automation panels. The 50 mm width and 400 mm height provide a balance between mounting practicality and electrical capacity, supporting scalable power distribution in automation lines.
The device complies with IEC/DIN EN 60 947-3 for electrical safety and features UL 94-V0 fire protection. These standards support safer operation and regulatory alignment in industrial environments.
Electronic fuse monitoring offers real-time status insights, enabling quicker fault isolation and reduced downtime. When combined with its compact form and robust construction, this can shorten maintenance cycles and improve overall equipment effectiveness (OEE) in production lines.
