Rittal 9346060 SV NH Slimline Fuse-Switch - IEC 60 947-3
Part Number: 9346060
Manufacturer
Rittal
Part number
9346060
Category
Alt Part Number
SV 9346.060
Quick Summary
Rittal SV NH slimline fuse-switch disconnector protects and isolates electrical circuits in switchgear assemblies. Engineers often struggle with accurate current ratings, safe isolation, and space constraints in control panels. This device meets IEC/DIN EN 60 947-3 and CE requirements, uses UL 94‑V0 fire-rated materials, and is suitable for 3-pole NH size 00 configurations. Built for current transformer installations, it supports top or bottom cable outlets and 100 mm bar spacing, enhancing installation flexibility. By delivering 160 A at 690 V in a compact 50 mm width by 400 mm height footprint, it reduces panel depth and installation time, while maintaining robust safety and reliability for NH busbar systems.
Product Information
Extended Description

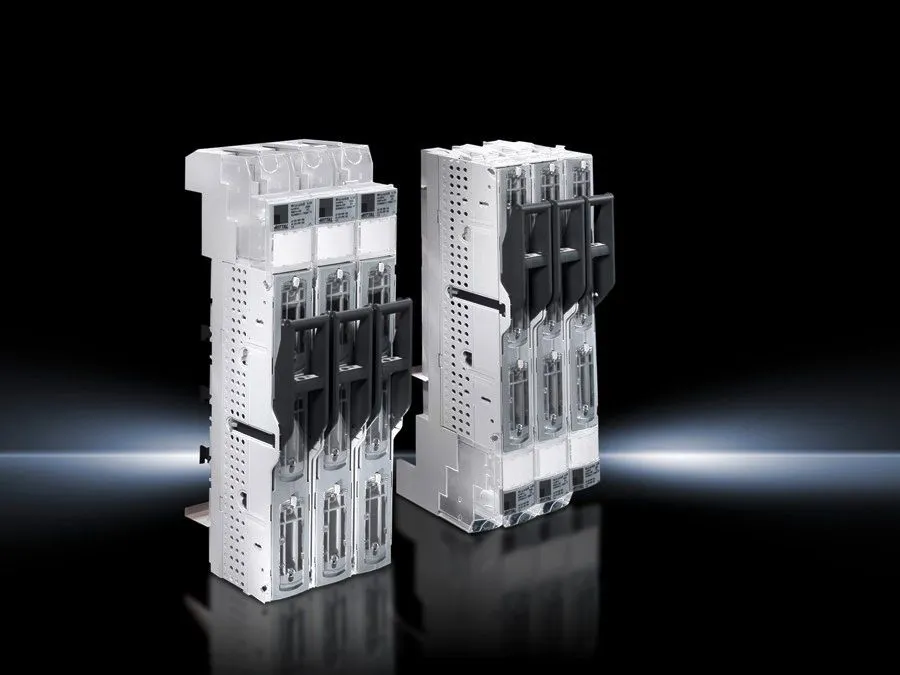

9346060 Rittal: SV NH slimline fuse-switch disconnector, size 00, 160 A, 690 V, 3-pole, screw M8, 100 mm, for current transformer installation
Article number
SV 9346.060
Material
Fibreglass-reinforced polyamide | Fire protection corresponding to UL 94-V0 | Contact tracks: Silver-plated hard copper
Colour
Chassis: RAL 7035 | Cover: RAL 7001 | Handle: RAL 7016
For bar systems with centre-to-centre spacing
100 mm
Cable outlet
Top/bottom
Type of electrical connection
Screw M8
Rated operating current max.
160 A
For NH size
00
Test specification
IEC/DIN EN 60 947-3
For converter installation
Yes
Dimensions
Width: 50 mm | Height: 400 mm
Connection for round conductor
2.5 ‐ 95 mm²
To fit busbars
Height: 5, 10 mm
Rated operating voltage
690 V, 3~
Number of poles
3-pole
Packs of
1 pc(s).
Weight/pack
1.18 kg
Copper weight (kg per piece)
0.65
Customs tariff number
85365080
EAN
4028177668133
ETIM 9
EC001046
ECLASS 8.0
27371402
Product description
SV NH slimline fuse-switch disconnector, size 00, 160 A, 690 V, 3-pole, screw M8, 100 mm, for current transformer installation
Compact footprint and NH00 compatibility: The SV NH slimline fuse-switch disconnector fits 3-pole NH00 configurations in a 50 mm wide, 400 mm high enclosure, delivering space savings in control cabinets and enabling efficient busbar layouts with 100 mm center-to-center spacing. Business impact: higher packing density, easier future expansion, and reduced cabinet depth. Application: modern automation panels with tight layout constraints and energy management schemes. Top/bottom cable outlets with M8 screw connections and conductor range 2.5–95 mm²: This wiring flexibility lowers installation time and minimizes rework when upgrading protection or adding current transformers. Business impact: faster commissioning and lower labor costs. Application: retrofit projects and greenfield builds in power distribution. Fibreglass-reinforced polyamide with UL 94‑V0 and silver-plated copper contacts: Improves fire safety, contact reliability, and long-term performance under heavy loads. Business impact: enhanced safety compliance and reduced maintenance costs. Application: harsh industrial environments and critical protection circuits. Height-for-busbar fit (5–10 mm) and 100 mm spacing support seamless integration with NH busbars: Simplifies alignment with existing protection schemes and reduces miswiring risk. Business impact: predictable installation and lower risk of panel rework. Application: energy-management and converter installations where precise busbar integration is essential. Packaged as 1 pc, with copper weight of 0.65 kg per piece: Improves procurement budgeting and shipping predictability. Application: centralized sourcing for panel builders and system integrators.
