Rittal 9350075 Busbar Connector - No Drilling Required
Part Number: 9350075
Manufacturer
Rittal
Part number
9350075
Category
Alt Part Number
SV 9350.075
Quick Summary
Rittal 9350075 Busbar Connector for E‑Cu busbars provides a drill‑free mounting solution for compact power distribution assemblies. This design eliminates the need for on‑site drilling, reducing assembly time and the risk of misalignment or damage to conductors. It references ETIM 9 EC000713 and ECLASS 8.0 27400606 for standard classification, and uses nickel‑plated copper contact plates for reliable conductivity and corrosion resistance. Note that CE, SIL and IP certifications are not listed in the provided data; verify requirements with the supplier. This connector supports scalable procurement and predictable performance in demanding industrial environments.
Product Information
Extended Description

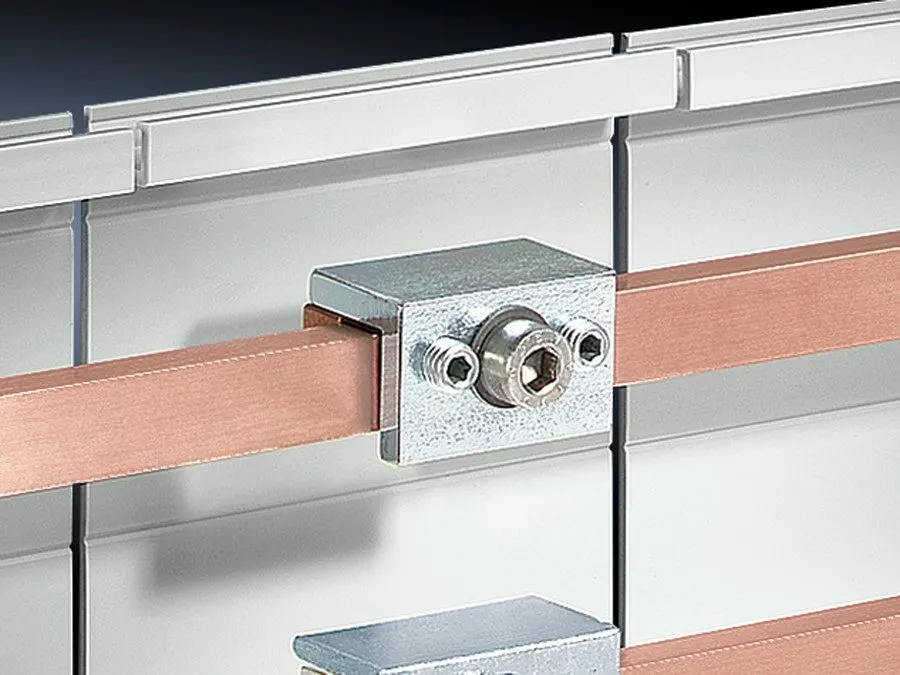

9350075 Rittal: SV Busbar connector, for E-Cu 12x5-15x10 mm, single connection
Article number
SV 9350.075
Product description
For connecting rectangular busbars, no drilling required.
Material
Console: St 37, nickel-plated | Contact plate: E-Cu, nickel-plated
Connection type
Single connection
To fit busbars
12 x 5 - 15 x 10 mm
Packs of
3 pc(s).
Weight/pack
0.411 kg
Copper weight (kg per piece)
0.05
PCF per pack (cradle-to-gate)
1.6 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
85369010
EAN
4028177504844
ETIM 9
EC000713
ECLASS 8.0
27400606
Product description
SV Busbar connector, for E-Cu 12x5-15x10 mm, single connection
Drill-free connection for rectangular busbars within 12 x 5 to 15 x 10 mm increases installation speed and reduces the risk of misdrilling, enabling faster line upgrades and less scrap in panel assemblies. Single connection design simplifies wiring paths, minimizes miswiring risk, and accelerates commissioning in control cabinets and switchgear retrofits. Material composition—console made of St 37, nickel-plated; contact plate in E-Cu, nickel-plated—delivers robust mechanical strength and durable, corrosion‑resistant conductivity in harsh factory environments. Packs of three pieces per bag with a total weight of 0.411 kg per pack and copper weight of 0.05 kg per piece support lean inventory and predictable logistics, while a cradle‑to‑gate PCF of 1.6 kg CO2 eq (Category B) aligns with sustainability targets. Compatibility with standard E-Cu busbars ensures easy adoption across existing installations and supplier ecosystems. The combination of no‑drill installation, verified classifications (ETIM/ECLASS), and clear procurement data simplifies purchasing and reduces total cost of ownership in mass deployments. Installation anxiety is eased by proven assembly procedures and the reliability of nickel‑plated interfaces that resist oxidation over service life.
Get a Quick Quote for a Rittal 9350075
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9350075?
Enquire Now
FAQs
Begin by confirming the busbar size range (12 x 5 to 15 x 10 mm). Align the connector with the busbar, insert the E‑Cu contact plate, and tighten the mounting hardware per the panel’s installation practices. The device is designed for single connection, eliminating the need for holes or drilling, which reduces risk of panel damage and speeds up commissioning.
The SV 9350.075 fits rectangular busbars in the 12 x 5 to 15 x 10 mm range and uses a single connection type. This simplifies wiring topology and reduces potential misconnection during panel assembly, making it ideal for compact power distribution in automation cabinets and switchgear.
Yes. The connector is designed to integrate with standard Rittal E-Cu busbar systems and follows common industry classifications (ETIM 9 EC000713 and ECLASS 8.0 27400606). Always verify physical dimensions and clearance in your enclosure to ensure seamless fit with your existing assemblies.
The data specifies ETIM 9 EC000713 and ECLASS 8.0 27400606 classifications. CE, SIL, and IP certifications are not listed in the provided data; confirm with Rittal for your regulatory requirements and any site‑specific compliance needs prior to deployment.
The product ships in packs of three with a total pack weight of 0.411 kg and a copper weight of 0.05 kg per piece, supporting compact inventory and easier logistics. PCF is 1.6 kg CO2 eq per pack (Category B), aligning with eco‑aware manufacturing goals while maintaining reliable electrical performance in panel builds.
