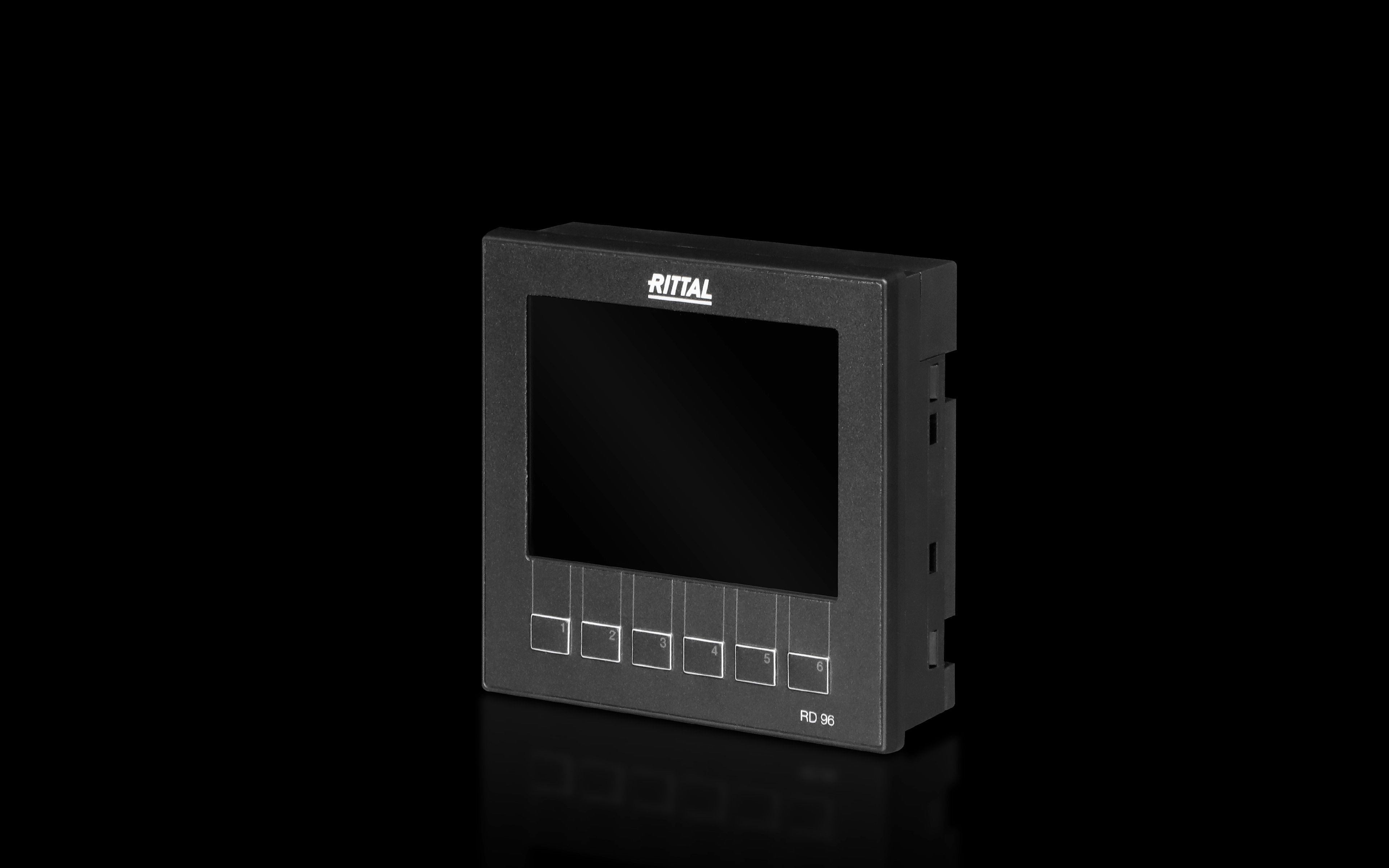

Rittal 9393222 External Display - Front IP40 Rated
Part Number: 9393222
Manufacturer
Rittal
Part number
9393222
Category
Alt Part Number
SV 9393.222
Quick Summary
Rittal 9393222 External Display is a compact interface designed to configure and display REM 801 network analyser parameters. In the field, engineers often struggle with translating REM outputs to readable on-site readings, leading to delays and misinterpretations. This accessory enhances visibility at the point of measurement, reducing setup time and boosting diagnostic speed. It handles rugged industrial conditions with an IP40 front protection rating and a broad operating temperature range from -10 °C to 55 °C, plus storage tolerance to -25 °C, 70 °C. The unit supports USB 2.0 connectivity and ships with a 1.8 m cable, enabling flexible in-plant deployment. Secondary benefits include consistent data interpretation and streamlined maintenance for REM 801 ecosystems.
Product Information
Extended Description
9393222 Rittal: SV External display REM RD 96 for network analyser REM 801
Article number
SV 9393.222
Supply includes
Display | Connection cable USB 2.0 (type A to type B connector), 1.8 m long
Operating temperature range
-10 °C...55 °C
Storage temperature range
-25 °C...70 °C
Ambient humidity (non-condensing)
0...75 %
Contamination level
2
IP protection category to IEC 60 529
Front IP 40
Packs of
1 pc(s).
Customs tariff number
85389099
EAN
4028177984943
Product description
SV External display REM RD 96 for network analyser REM 801
Feature: External display for REM 801 data visualization. Business Impact: Accelerates setup, reduces operator guesswork, and shortens downtime during commissioning. Application: Field installations where REM 801 readings must be interpreted quickly at the point of measurement. Long-tail keywords: REM 801 accessories, SV external display, industrial display interface, REM RD 96 compatibility. Feature: Rugged environmental specs with Front IP 40 protection. Business Impact: Improves reliability in typical factory environments and mitigates dust ingress. Application: On the shop floor where equipment operates near dust and drafts. Long-tail keywords: IP40 protection, rugged industrial display, harsh environment compatibility. Feature: Wide operating and storage temperature range. Business Impact: Prevents performance drops in temperature swings common to manufacturing lines. Application: Temperature-sensitive measurement setups and remote monitoring stations. Long-tail keywords: -10 to 55 °C operation, -25 to 70 °C storage, environmental tolerance. Feature: USB 2.0 connectivity with 1.8 m supply cable. Business Impact: Easy plug-and-play installation reduces cabling overhead and installation time. Application: Quick deployment at REM 801 measurement points. Long-tail keywords: USB 2.0 display cable, 1.8 m USB cable, plug-and-play installation. Feature: Packaged as a single unit for straightforward procurement. Business Impact: Simplifies procurement and reduces logistically complexity. Application: Standardised REM 801 accessory kit for maintenance and upgrades. Long-tail keywords: compact packaging, single-pack display accessory, procurement efficiency.
Get a Quick Quote for a Rittal 9393222
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9393222?
Enquire Now
FAQs
The SV 9393.222 is designed as an easy, plug-and-play extension for the REM 801. It ships with a USB 2.0 cable (A to B) of 1.8 m, enabling straightforward setup at the REM 801 measurement point without custom adapters. Ensure the REM 801 is powered and connect the USB cable to establish the display link; no additional drivers are required in typical configurations.
The device operates from -10 °C to 55 °C and stores from -25 °C to 70 °C. It tolerates non-condensing ambient humidity up to 75% and features Front IP 40 protection, making it suitable for most standard industrial environments where dust exposure is possible but liquid ingress is minimal.
Yes. The SV 9393.222 is designed to function with REM 801 in demanding environments due to its IP40 front protection and robust operating range. Its 1.8 m USB connection supports flexible placement near the measurement point, improving readability and reducing operator error during diagnostics on the factory floor.
By enabling immediate visibility of REM 801 parameters at the measurement site, the display reduces setup time, lowers interpretation errors, and speeds maintenance diagnostics. The included USB cable streamlines installation, while the rugged design minimizes downtime due to environmental factors, contributing to faster issue resolution and higher uptime.
Official resources include PDF documentation and the DE/EN instruction sheets. Access the variant page PDF and Instructions_DE_EN via the provided download links, which cover installation steps, operating ranges, and product descriptions to support quick onboarding and reference during maintenance.
