Rittal 9393230 SV Connection Module REM 800-CON - IP20
Part Number: 9393230
Manufacturer
Rittal
Part number
9393230
Category
Alt Part Number
9393.230
Quick Summary
Rittal 9393230 SV connection module REM 800-CON enables distributed measurement points in control panels. When wiring spatially remote sensors, engineers often struggle with tangled cables and crowded enclosures. It offers IP20 protection (IEC 60 529) and DIN-rail mounting compatibility, helping maintain safety and regulatory alignment in harsh environments. This reduces installation time and wiring errors, while supporting scalable automation in industrial panels and OEM integrations.
Product Information
Extended Description

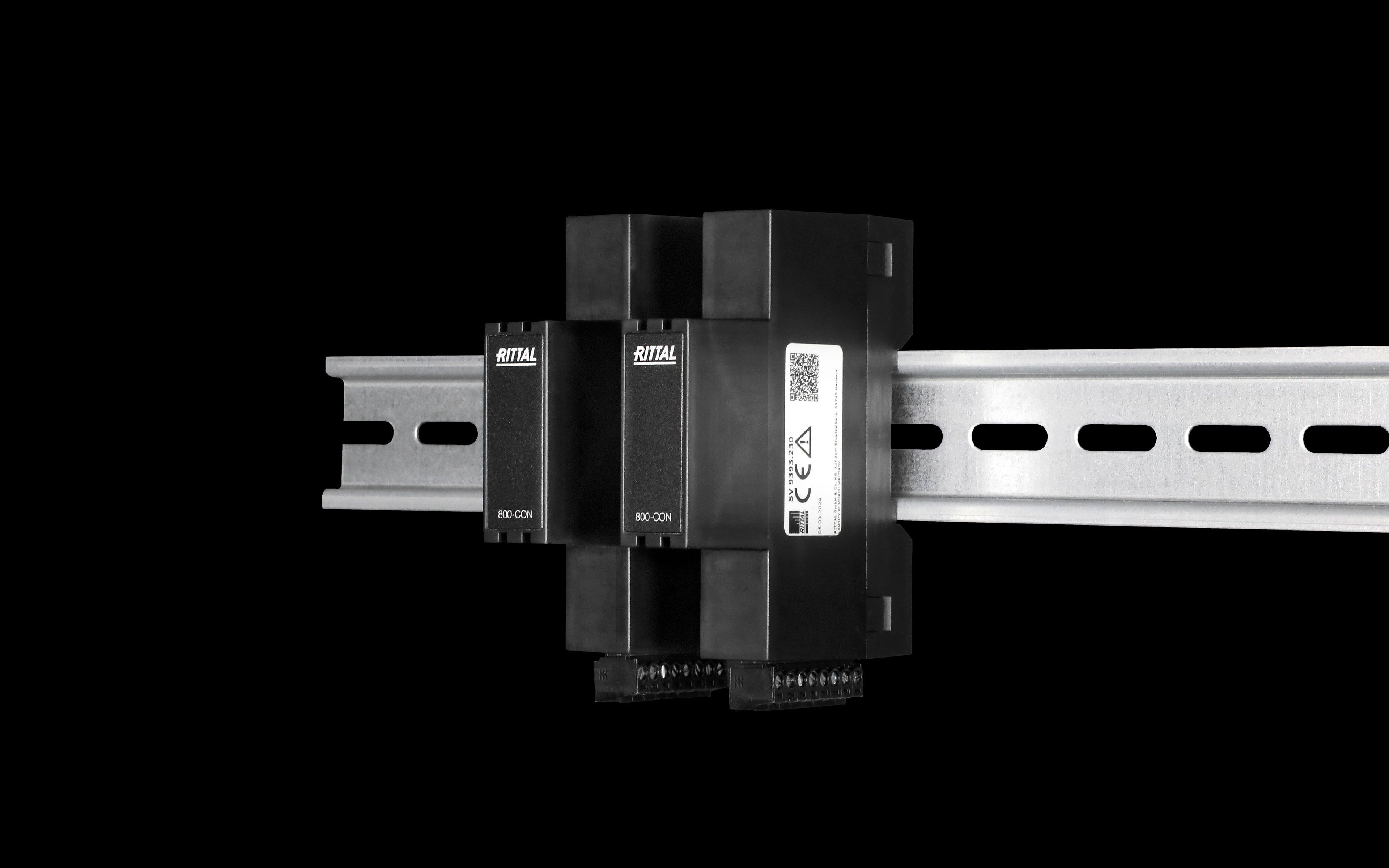

9393230 Rittal: SV Connection module REM 800-CON
Article number
9393.230
Product description
For connecting spatially remote measuring points.
Supply includes
2 connection modules | 2 bus connectors (left/right) | 2 shield clamps | 2 screw terminals | 2 end brackets
Operating temperature range
-10 °C...55 °C
Storage temperature range
-25 °C...70 °C
Ambient humidity (non-condensing)
5...25 %
Contamination level
2
IP protection category to IEC 60 529
IP 20
For mounting on support rails
Yes
Connection of round conductors, fine wire with wire end ferrule
0.2 ‐ 1.5 mm²
Connection of round conductors, fine wire without wire end ferrule
0.2 ‐ 1.5 mm²
Connection of round conductors, single-wire
0.2 ‐ 1.5 mm²
Connection of round conductors, multi-wire
0.2 ‐ 1.5 mm²
Connection for round conductor
AWG 16 - 24
Packs of
2 pc(s).
Customs tariff number
85389099
EAN
4028177984974
Product description
SV Connection module REM 800-CON
Feature: Modular contents and compact design provide a ready-made solution for connecting distributed sensors. Business Impact: Cuts assembly time, lowers procurement complexity, and minimizes on-site wiring mistakes. Application: Ideal for new builds and panel retrofits in automotive, food & beverage, and process automation environments. Feature: Robust operating range and environmental tolerance (-10 °C to 55 °C; storage -25 °C to 70 °C; 5–25% humidity; contamination level 2). Business Impact: Improves reliability in demanding factory floors and vibration-prone installations. Application: Suitable for short- to mid-term deployments inside industrial enclosures. Feature: IP 20 protection and DIN-rail mounting support. Business Impact: Enhances safe enclosure integration and accelerates installation with standard mounting rails. Application: Fits standard Rittal enclosures and panel assemblies. Feature: Flexible wire connectivity (0.2–1.5 mm²; AWG 16–24) and included terminals, clamps, and bus connectors. Business Impact: Enables direct sensor wiring without extra adapters, reducing material costs. Application: Remote sensing networks and distributed measurement points. Feature: Pack contents (2 connection modules, 2 bus connectors, shield clamps, screw terminals, end brackets) support scalable configurations. Business Impact: Streamlines procurement for multi-point installations; reduces stock keeping. Application: Medium to large panel projects requiring parallel sensing channels.
Get a Quick Quote for a Rittal 9393230
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9393230?
Enquire Now
FAQs
The 9393.230 kit is designed for DIN-rail mounting inside standard Rittal enclosures and supports the REM 800-CON connection scheme. It includes two connection modules, two bus connectors, shield clamps, screw terminals, and end brackets, enabling straightforward retrofits in existing panels without custom adapters.
Connection inputs cover 0.2 to 1.5 mm² conductors and AWG 16 to 24, with terminals designed for round conductors and ferrules. This flexibility supports a wide range of sensors and signal types while maintaining reliable termination and signal integrity in industrial environments.
Yes. The module is explicitly intended to connect spatially remote measuring points and supports multiple points through its two connection modules and bus connectors. Its DIN-rail compatibility and included hardware simplify deployment in panel-based remote sensing networks.
The unit provides IP20 protection under IEC 60 529 and operates reliably from -10 to 55 °C with storage from -25 to 70 °C. Ambient humidity should stay between 5% and 25% non-condensing. These specs support safe operation in typical manufacturing and automation environments.
By consolidating wiring for remote measurement points and including all required components in a two-pack kit, installation time and labor costs are reduced. Fewer connectors and simpler terminations lower maintenance risk, while scalable 2-pack configurations support growing sensor networks without frequent stock changes.
