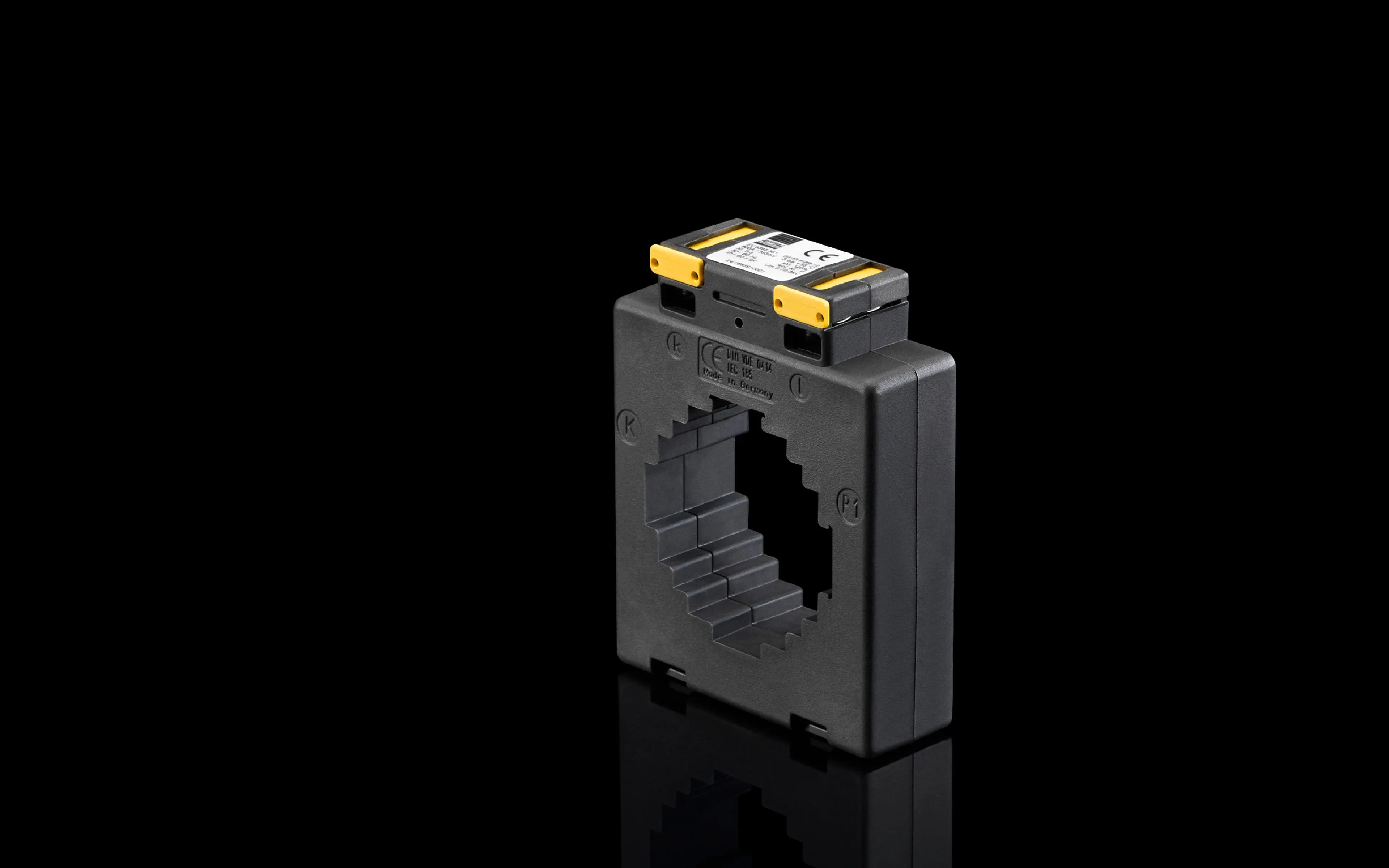

Rittal SV 9393.558 Power Management - EN 61869-1/2
Part Number: 9393558
Manufacturer
Rittal
Part number
9393558
Category
Alt Part Number
SV 9393.558
Quick Summary
Rittal SV 9393.558 is a power management accessory that supports secure busbar connections in control panels and switchgear. Too often, engineers encounter inconsistent insulation, bulky mounting hardware, or non-compliant parts that slow assembly and compromise safety. It complies with EN 61869-1/2, uses UL 94 flame-retardant polyamide, and offers an accuracy class of 0.5 for precise measurements. With an 85 by 106 by 30 mm footprint and a 630 A primary current rating, it enables compact, dependable power distribution while simplifying installation and service. The included feet, caps, and clamps ease mounting in a variety of enclosures, helping maintain panel integrity during upgrades.
Product Information
Article number
SV 9393.558
Design
Output voltage 333 mV
Material
Polyamide | Fire protection corresponding to UL 94
Colour
RAL 9005
Supply includes
2 plug-in feet | 2 insulating caps | 1 primary bar clamp | 2 grub screws
To fit busbars
null mm
Primary current
630 A
Standards
EN 61869-1/ 2
Dimensions
Width: 85 mm | Height: 106 mm | Depth: 30 mm
Operating temperature range
-5 °C...55 °C
Storage temperature range
-25 °C...75 °C
Ambient humidity (non-condensing)
10...90 %
Connection for round conductor
0.5 ‐ 2.5 mm²
Fundamental frequency
50...60 Hz
Accuracy Class
0.5
Insuslation material (class)
F
Packs of
1 pc(s).
Customs tariff number
85043129
EAN
4028177048805
Feature: Flame-retardant polyamide construction with UL 94 compliance. Business Impact: Improves safety certification alignment and reduces flame risk in enclosure assemblies. Application: Ideal for control panels and switchgear in harsh or climate-controlled environments. The material choice supports durable performance across typical industrial operating temperatures. Feature → Business Impact → Application: Safe, compliant, and reliable mounting in industrial cabinets. Feature: Compact footprint (Width 85 mm, Height 106 mm, Depth 30 mm) with 630 A primary current rating. Business Impact: Maximizes usable space inside crowded panels while handling high current without oversizing. Application: Suitable for space-constrained distribution boards and motor control centers. Feature → Business Impact → Application: High-density busbar arrangements with robust current carrying capacity. Feature: Broad operating and storage ranges (-5 °C to 55 °C; -25 °C to 75 °C; 10–90% RH non-condensing). Business Impact: Reliable operation and storage flexibility across environments, reducing downtime. Application: Outdoor or semi-enclosed industrial facilities and temperate control rooms. Feature → Business Impact → Application: Resilient performance in diverse plant conditions. Feature: Flexible connection for round conductors 0.5–2.5 mm2 and standard mounting access with plug-in feet, insulating caps, and clamps. Business Impact: Simplifies wiring and installation, lowering labor time and error rates. Application: Quick field upgrades and retrofit projects in existing panels. Feature → Business Impact → Application: Efficient commissioning and scalable panel builds. Feature: EN 61869-1/2 compliance and 0.5% accuracy class with F insulation. Business Impact: Ensures compatibility with measurement interfaces and reliable readings. Application: metering and protective-relay interfaces in power management systems. Feature → Business Impact → Application: Regulatory-aligned data integrity for control systems.
Get a Quick Quote for a Rittal 9393558
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9393558?
Enquire Now
FAQs
The SV 9393.558 includes two plug-in feet, two insulating caps, one primary bar clamp and two grub screws to simplify installation. It fits standard control cabinet layouts and connects to round conductors 0.5–2.5 mm2. Its 85 x 106 x 30 mm footprint fits compact panel spaces, and the included hardware supports fast, secure mounting with minimized risk of movement or vibration affecting connections.
Key specs include a 630 A primary current rating and a design output of 333 mV, suitable for high-current busbar applications. It supports 50–60 Hz operation and offers an accuracy class of 0.5. The conductor range (0.5–2.5 mm2) provides flexibility for common round conductors, while EN 61869-1/2 compatibility ensures reliable electrical measurement integration.
Yes. The device operates from -5 °C to 55 °C and stores from -25 °C to 75 °C, with 10–90% non-condensing humidity. This makes it suitable for a wide range of industrial environments, including manufacturing floors and equipment rooms, while maintaining measurement integrity and mechanical stability.
The SV 9393.558 adheres to EN 61869-1/2 standards for electrical measurement components and uses UL 94 flame-retardant polyamide. These certifications support safety, compatibility with measurement interfaces, and reliable performance in standard power distribution environments.
The combination of compact dimensions, high current capacity, and simple installation reduces panel footprint and labor time. EN 61869-1/2 compliance plus 0.5 accuracy minimizes integration risk with measurement systems, while robust insulation and flame resistance improve safety and regulatory alignment, translating to lower maintenance costs and reduced downtime over the panel’s life cycle.
