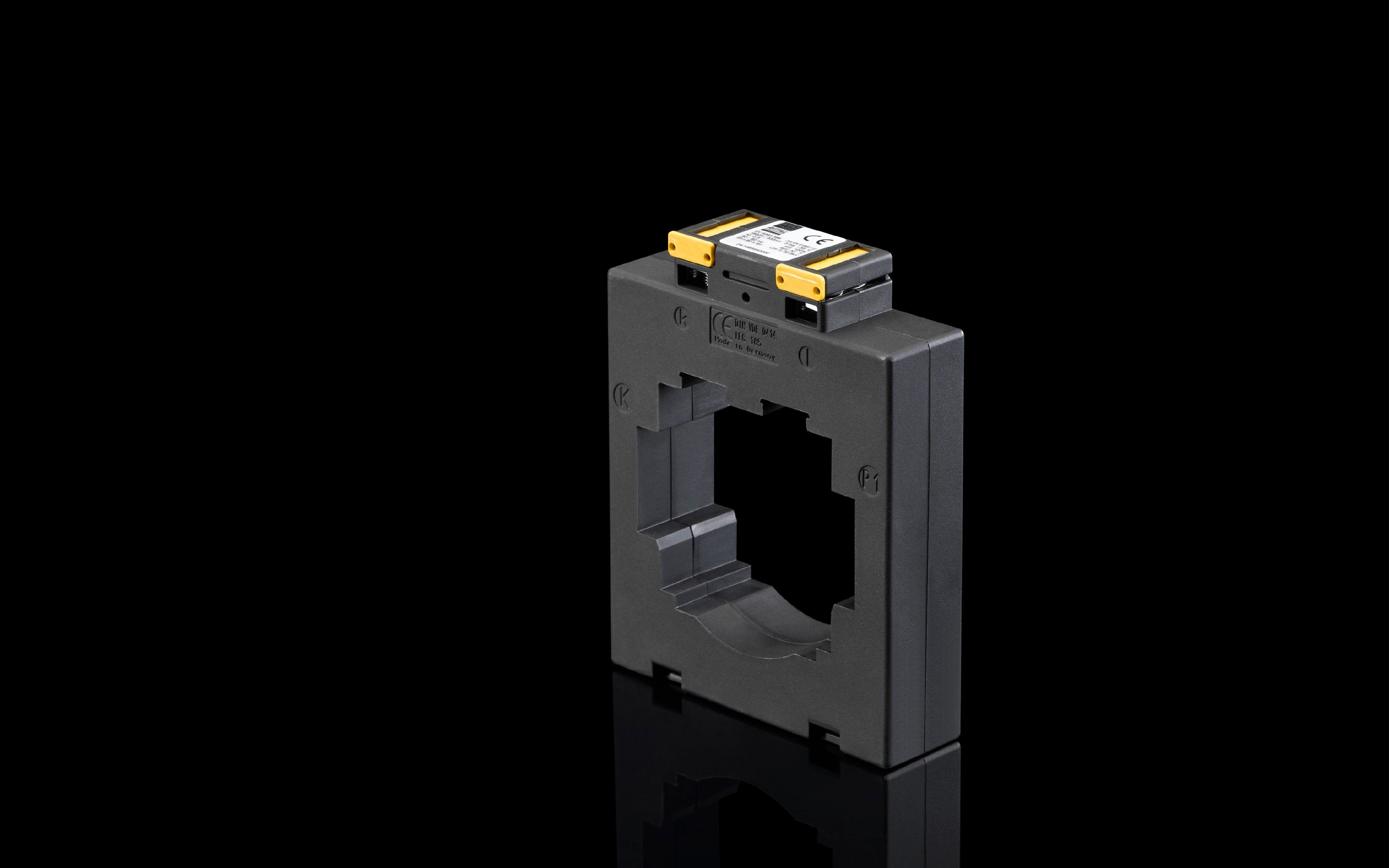

Rittal SV 9393.560 Current Sensor - EN 61869-1/2
Part Number: 9393560
Manufacturer
Rittal
Part number
9393560
Category
Alt Part Number
SV 9393.560
Quick Summary
Rittal SV 9393.560 current sensor offers precise current measurement for busbar systems in industrial control panels. It is designed to fit compact enclosures without sacrificing accuracy, addressing space constraints common in modern cabinets. Engineers often struggle with selecting devices that combine reliability, safety, and easy installation. The SV 9393.560 is EN 61869-1/2 compliant and uses UL 94 fire-rated material, delivering dependable performance in challenging environments. Its 333 mV output and 0.5 accuracy support accurate energy monitoring and protective relays logic, while the 630 A rating covers high-current applications. With compact dimensions and straightforward mounting alongside busbars in Rittal enclosures, it enables practical, scalable power management and distribution throughout modern manufacturing facilities.
Product Information
Article number
SV 9393.560
Design
Output voltage 333 mV
Material
Polyamide | Fire protection corresponding to UL 94
Colour
RAL 9005
Supply includes
2 plug-in feet | 2 insulating caps | 1 primary bar clamp | 2 grub screws
To fit busbars
null mm
Primary current
630 A
Standards
EN 61869-1/ 2
Dimensions
Width: 105 mm | Height: 132 mm | Depth: 30 mm
Operating temperature range
-5 °C...55 °C
Storage temperature range
-25 °C...75 °C
Ambient humidity (non-condensing)
10...90 %
Connection for round conductor
0.5 ‐ 2.5 mm²
Fundamental frequency
50...60 Hz
Accuracy Class
0.5
Insuslation material (class)
F
Packs of
1 pc(s).
Customs tariff number
85043129
EAN
4028177048829
Feature: Compact, UL 94 fire-rated polyamide housing provides enhanced safety in electrical cabinets. Business Impact: Reduces fire risk and enables reliable operation in tight enclosures. Application: Ideal for panel builders integrating busbar systems in high-density control panels. Feature: 333 mV output with 0.5 accuracy supports precise current measurement. Business Impact: Improves metering accuracy for energy management and protective relays, lowering misalarm risk. Application: Beneficial for motor control centers and distribution boards requiring dependable readings. Feature: High primary current rating of 630 A accommodates demanding loads without enlarging the installation footprint. Business Impact: Enables single-sensor coverage of large feeders, reducing parts count and space needs. Application: Suitable for main busbar segments in industrial plants. Feature: Connection for round conductors 0.5–2.5 mm² offers flexible wiring options. Business Impact: Simplifies installation and retrofit projects, saving commissioning time. Application: Useful in retrofits or expansions of existing Rittal enclosures. Feature: Dimensions (Width 105 mm, Height 132 mm, Depth 30 mm) and panel-friendly form factor. Business Impact: Maximizes cabinet real estate while maintaining accessible wiring; Improves serviceability. Application: Perfect for compact power distribution modules in control panels. Feature: EN 61869-1/2 compliance and 0.5 accuracy ensure regulatory alignment and consistent performance. Business Impact: Supports compliance programs and reduces risk during audits. Application: Essential for industries requiring formal conformity in metering and protection schemes.
Get a Quick Quote for a Rittal 9393560
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9393560?
Enquire Now
FAQs
The SV 9393.560 supports round conductors in the 0.5–2.5 mm² range. It ships with 2 plug-in feet, 2 insulating caps, 1 primary bar clamp, and 2 grub screws to simplify mounting and wiring. For best results, mount on a stable surface within the enclosure, connect the conductors per the rating, and secure with the included hardware to maintain measurement integrity.
The device complies with EN 61869-1/2 for current measurement performance and accuracy. It uses a UL 94 flame-rated material for improved safety, and the 0.5 accuracy class supports precise metering. These certifications help ensure regulatory alignment and reliable operation in standard industrial environments.
Yes. With a primary current rating of 630 A and a compact footprint (105 mm W x 132 mm H x 30 mm D), it is designed to monitor large busbar currents without expanding the panel footprint. The 333 mV output supports accurate readings for energy management and protective logic in demanding installations.
Leverage the supplied plug-in feet, insulating caps, and bar clamp for secure mounting in Rittal enclosures. The polyamide housing and compact dimensions are chosen to fit tight panel spaces, while the 0.5–2.5 mm² conductor connections simplify wiring. Ensure adequate venting and distancing per enclosure guidelines to maintain measurement accuracy.
The sensor is rated for operating temperatures from -5 °C to 55 °C and storage from -25 °C to 75 °C, with humidity tolerance of 10–90% non-condensing. Its insulation class is F, supporting stable performance in typical industrial environments and reducing maintenance needs over time, which improves total cost of ownership.
