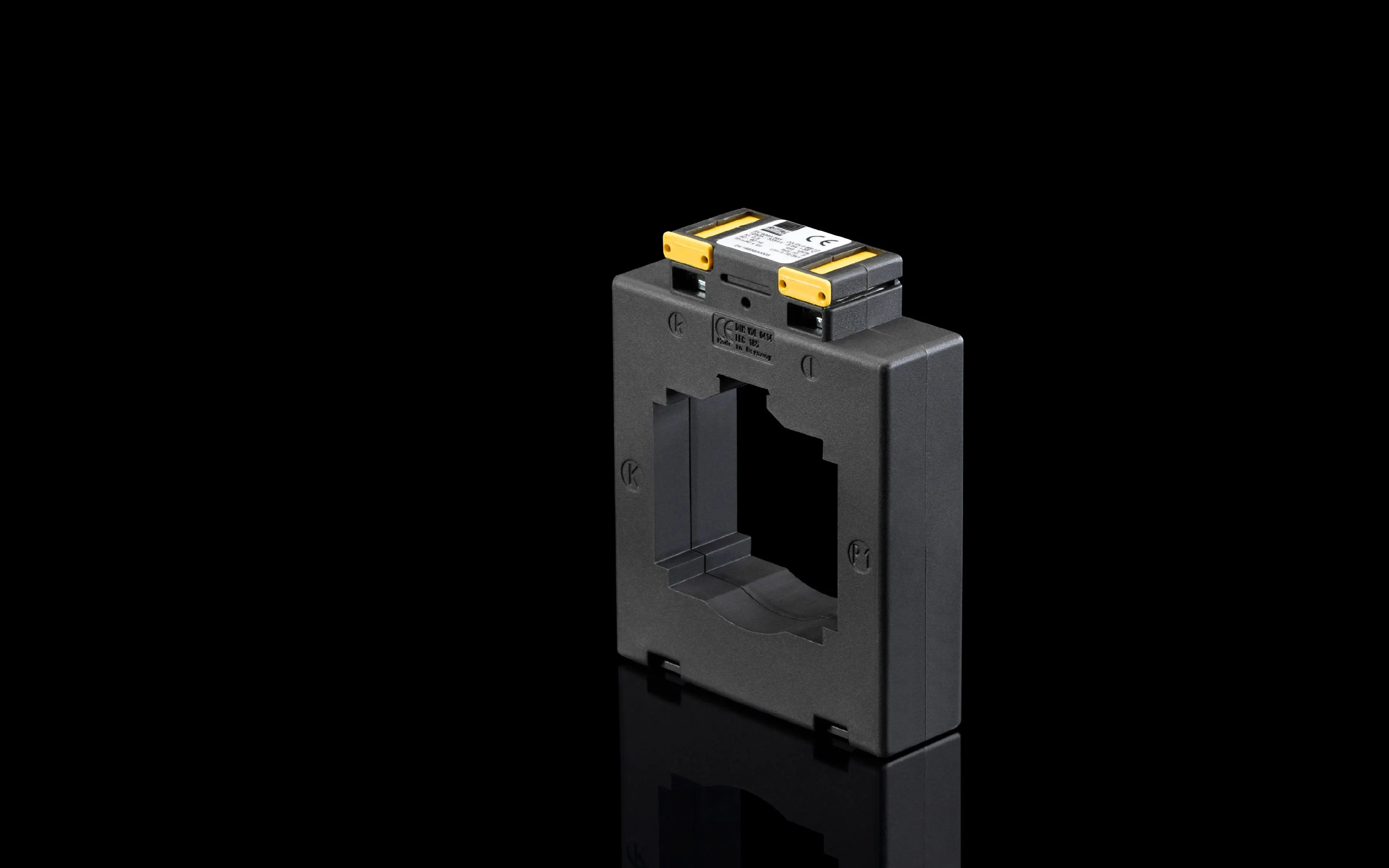

Rittal SV 9393.562 - 333 mV Output, EN 61869
Part Number: 9393562
Manufacturer
Rittal
Part number
9393562
Category
Alt Part Number
SV 9393.562
Quick Summary
Rittal SV 9393.562 is a compact measuring accessory designed for high-current busbar installations. Engineers often struggle with space constraints, installation complexity, and unreliable readings in rugged switchgear environments. The unit complies with EN 61869-1/2 and UL 94 fire protection, and uses insulation class F materials to enhance safety and longevity. With a robust polyamide housing and a 333 mV output, it integrates smoothly into power monitoring schemes while maintaining EN/IEC compatibility. Designed to fit standard enclosures and to connect easily to round conductors up to 2.5 mm2, it provides a reliable, scalable solution for energy management and protection relays.
Product Information
Article number
SV 9393.562
Design
Output voltage 333 mV
Material
Polyamide | Fire protection corresponding to UL 94
Colour
RAL 9005
Supply includes
2 plug-in feet | 2 insulating caps | 1 primary bar clamp | 2 grub screws
To fit busbars
null mm
Primary current
800 A
Standards
EN 61869-1/ 2
Dimensions
Width: 96 mm | Height: 121 mm | Depth: 30 mm
Operating temperature range
-5 °C...55 °C
Storage temperature range
-25 °C...75 °C
Ambient humidity (non-condensing)
10...90 %
Connection for round conductor
0.5 ‐ 2.5 mm²
Fundamental frequency
50...60 Hz
Accuracy Class
0.5
Insuslation material (class)
F
Packs of
1 pc(s).
Customs tariff number
85043129
EAN
4028177049468
Durable polyamide housing with UL 94 fire protection ensures safety and long-term reliability in harsh environments. For electrical installers, this reduces risk of housing failure during maintenance and enables consistent performance across temperature swings. The 333 mV output, 800 A primary current rating, and 0.5 accuracy class deliver precise, repeatable readings that improve protection coordination and energy accounting in switchgear. EN 61869-1/2 compliance guarantees seamless interoperability with metering and relay systems, simplifying integration into existing automation architectures and reducing engineering time. The included accessory kit—two plug-in feet, two insulating caps, one primary bar clamp, and two grub screws—speeds installation and ensures secure mounting in compact enclosures. These features cut installation time and maintenance costs while improving overall system reliability. Environmentally hardened design and compact footprint support quick retrofits in modern power distribution setups.
Get a Quick Quote for a Rittal 9393562
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9393562?
Enquire Now
FAQs
Install SV 9393.562 using its included components: plug-in feet for stable mounting, insulating caps to cover exposed connections, a primary bar clamp for secure busbar attachment, and grub screws to lock the assembly. Connect a round conductor 0.5–2.5 mm2 and verify mounting within the enclosure dimensions (96 mm W × 121 mm H × 30 mm D). Ensure EN 61869-1/2 compatibility with your protection relays.
Key specs include a primary current of up to 800 A, an output voltage of 333 mV, and an accuracy class of 0.5. It operates at 50–60 Hz and supports round conductor connections from 0.5 to 2.5 mm2. The device is designed for ambient temperatures from -5 to 55 °C and storage from -25 to 75 °C, with non-condensing humidity up to 90%.
Yes. The SV 9393.562 is designed for busbar monitoring in industrial power distribution, providing a 333 mV output suitable for metering and protection circuits. It complies with EN 61869-1/2, supports 800 A primary current, and integrates with standard enclosures and relay assemblies, offering reliable readings in 50–60 Hz systems.
The device uses a UL 94 fire-rated polyamide housing and insulation class F material, contributing to high fire safety standards. It meets EN 61869-1/2 for instrumentation transformers and is designed for safe operation in environments with up to 90% non-condensing humidity and temperatures from -5 to 55 °C.
The package includes two plug-in feet, two insulating caps, one primary bar clamp, and two grub screws. These items simplify mounting, ensure secure alignment with busbars, protect exposed conductors, and speed up field installation, reducing commissioning time and providing a robust, vibration-resistant connection suitable for industrial environments.
