Rittal SV 9393.564 Power Management Terminal - EN 61869-1/2
Part Number: 9393564
Manufacturer
Rittal
Part number
9393564
Category
Alt Part Number
SV 9393.564
Quick Summary

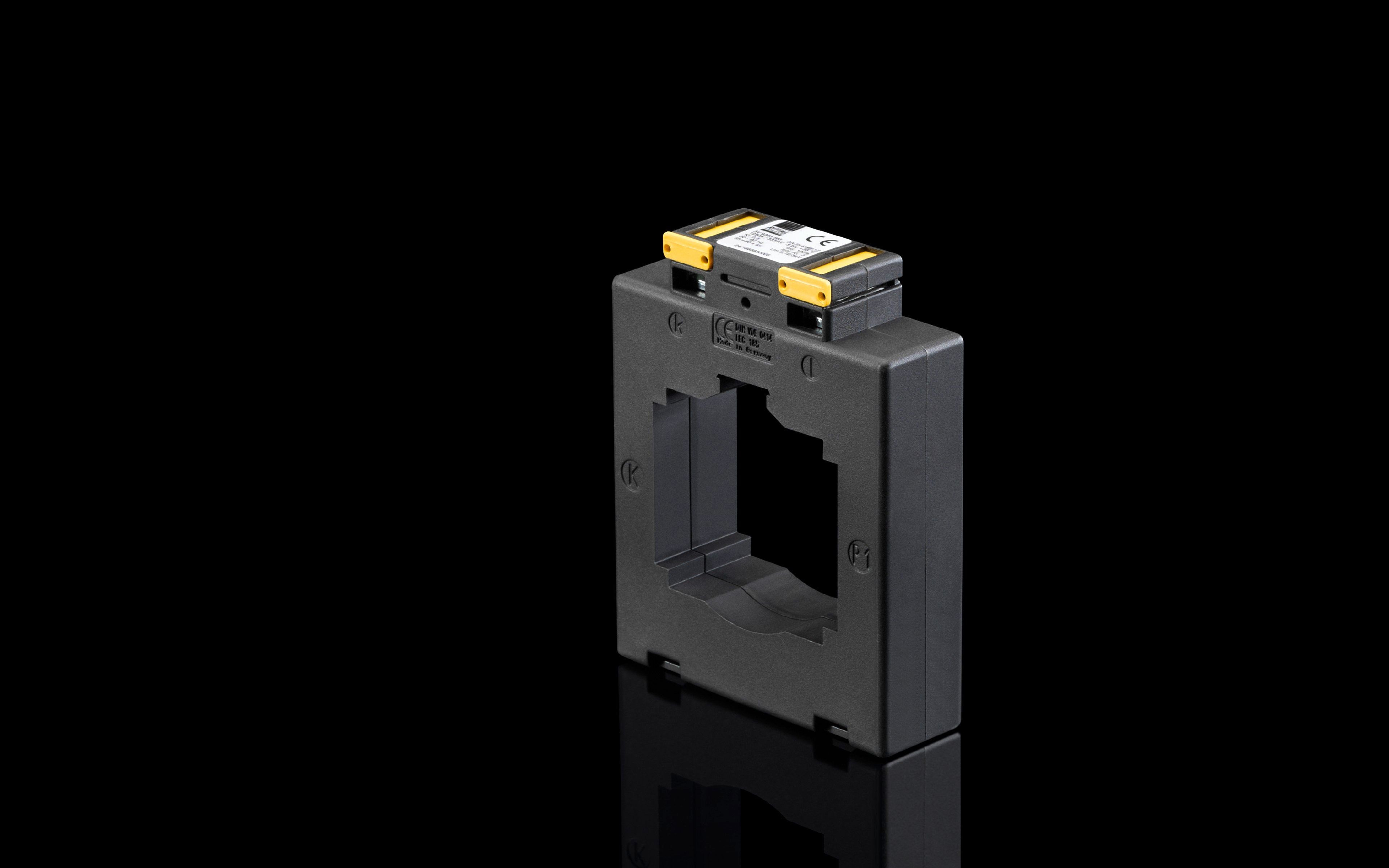

Rittal SV 9393.564 is a power management terminal designed for high-current monitoring in control panels and switchgear. Engineers often struggle with achieving accurate, reliable measurements under varying temperatures and harsh environments. It meets EN 61869-1/2 safety standards and UL 94 fire protection, providing robust performance in compact form. The unit’s 96 mm by 121 mm footprint fits tight panel layouts, while its polyamide enclosure resists wear in demanding environments. With a primary current rating up to 1,000 A and a 333 mV output, it supports busbar monitoring and current sensing without adding complexity to your wiring. This translates to easier commissioning, improved traceability, and safer operation across industrial plants.
Product Information
Article number
SV 9393.564
Design
Output voltage 333 mV
Material
Polyamide | Fire protection corresponding to UL 94
Colour
RAL 9005
Supply includes
2 plug-in feet | 2 insulating caps | 1 primary bar clamp | 2 grub screws
To fit busbars
null mm
Primary current
1,000 A
Standards
EN 61869-1/ 2
Dimensions
Width: 96 mm | Height: 121 mm | Depth: 30 mm
Operating temperature range
-5 °C...55 °C
Storage temperature range
-25 °C...75 °C
Ambient humidity (non-condensing)
10...90 %
Connection for round conductor
0.5 ‐ 2.5 mm²
Fundamental frequency
50...60 Hz
Accuracy Class
0.5
Insuslation material (class)
F
Packs of
1 pc(s).
Customs tariff number
85043129
EAN
4028177049543
High-current measurement capability up to 1,000 A enables direct monitoring in large feeders, reducing the need for external current transformers and simplifying wiring. The 333 mV output paired with EN 61869-1/2 compliance ensures compatibility with standard meters and PLC inputs, speeding integration and calibration. The UL 94 flame-rated polyamide housing adds resilience in cabinet environments, enhancing safety while maintaining a compact footprint that fits tight panel layouts. The unit ships with plug-in feet, insulating caps, a primary bar clamp, and grub screws, delivering installation-ready practicality and reducing procurement overhead. Its dimensions (96 × 121 × 30 mm) and round-conductor compatibility (0.5–2.5 mm²) support versatile busbar configurations. A wide operating range (-5 to 55 °C; -25 to 75 °C storage; 10–90% humidity) ensures reliability in varied environments, while a 50–60 Hz fundamental frequency covers typical industrial systems.
