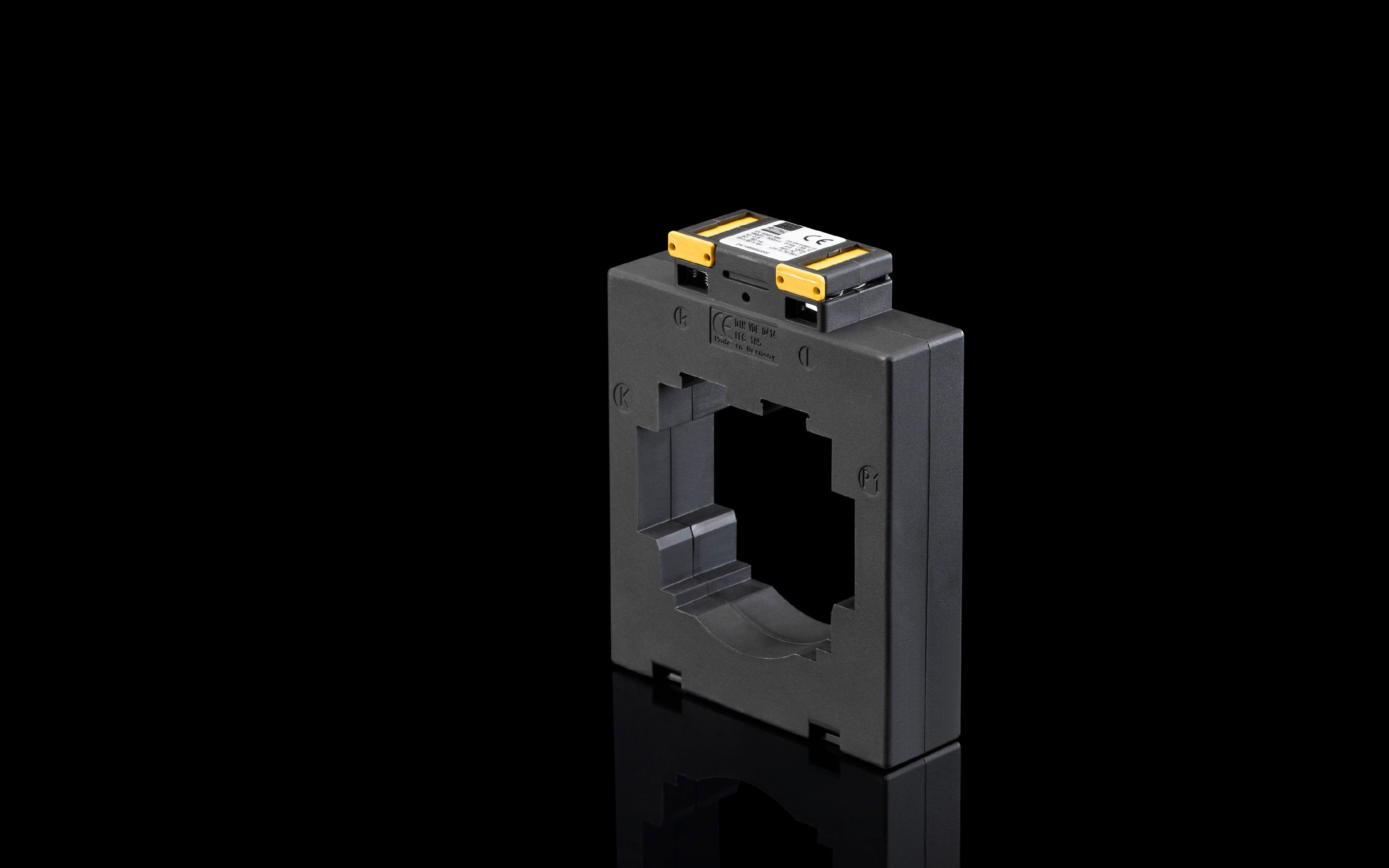

Rittal SV 9393.567 Power Management Component - EN 61869-1/2
Part Number: 9393567
Manufacturer
Rittal
Part number
9393567
Category
Alt Part Number
SV 9393.567
Quick Summary
Rittal SV 9393.567 is a power management component designed to streamline high-current busbar installations in control cabinets. Operators often struggle with space-constrained panels and the need for accurate current sensing in tight footprints. This part meets EN 61869-1/2 performance standards and UL 94 fire safety ratings, delivering reliable operation in demanding environments. Its compact footprint, 1,250 A rating, and 333 mV output enable seamless integration with protection relays and metering modules, supporting faster assembly and improved reliability. With included mounting hardware, it simplifies installation in new builds and retrofits, reducing wiring errors and maintenance downtime while ensuring compliance with essential standards.
Product Information
Article number
SV 9393.567
Design
Output voltage 333 mV
Material
Polyamide | Fire protection corresponding to UL 94
Colour
RAL 9005
Supply includes
2 plug-in feet | 4 insulating caps | 2 primary bar clamps | 4 grub screws
To fit busbars
null mm
Primary current
1,250 A
Standards
EN 61869-1/ 2
Dimensions
Width: 105 mm | Height: 132 mm | Depth: 30 mm
Operating temperature range
-5 °C...55 °C
Storage temperature range
-25 °C...75 °C
Ambient humidity (non-condensing)
10...90 %
Connection for round conductor
0.5 ‐ 2.5 mm²
Fundamental frequency
50...60 Hz
Accuracy Class
0.5
Insuslation material (class)
F
Packs of
1 pc(s).
Customs tariff number
85043129
EAN
4028177049772
Feature: High current capability and flame-resistant housing. Business Impact: Supports 1,250 A primary current in a compact enclosure, enabling central feeders in large switchgear without bulkier adapters. Application: Main distribution panels and power-ready cabinets. Feature: 333 mV output and round-conductor compatibility. Business Impact: Delivers a direct, standard-compatible signal to protection relays and meters, reducing additional signal conditioning. Application: Connection to energy meters and protection relays in automation racks. Feature: EN 61869-1/2 compliance. Business Impact: Ensures metering accuracy and regulatory conformity, lowering calibration costs and audit risk. Application: Metering interfaces and protective-relay circuits in industrial plants. Feature: Compact dimensions (105 x 132 x 30 mm). Business Impact: Maximizes cabinet density and simplifies retrofits in cramped enclosures. Application: Integration in compact control panels and switchgear. Feature: Included mounting hardware. Business Impact: Fast, reliable installation with plug-in feet, insulating caps, clamps, and screws, reducing commissioning time. Application: New builds and retrofits where quick, repeatable mounting matters.
Get a Quick Quote for a Rittal 9393567
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9393567?
Enquire Now
FAQs
SV 9393.567 accepts round conductors from 0.5 to 2.5 mm² and ships with two plug-in feet, four insulating caps, two primary bar clamps, and four grub screws. Mounting is designed for standard Rittal enclosures, enabling secure placement in tight panels with minimal wiring adjustments and reduced risk of loose connections.
The device provides a 1,250 A primary current rating and a 333 mV output. This enables direct interfacing with protection relays and metering inputs that expect a low-level, high-current sense signal, simplifying wiring and improving protection accuracy without additional signal conditioning.
Typical applications include industrial automation switchgear, power distribution panels in manufacturing facilities, data center infrastructure, and energy management cabinets. It supports high-current busbar installations, compact enclosures, and reliable current sensing for monitoring and protection within automated systems.
SV 9393.567 carries EN 61869-1/2 standards for metering and measurement accuracy and UL 94 fire-safety rating for housing material. These certifications help ensure safe operation in high-current environments, reduce compliance risk, and simplify regulatory approvals in industrial installations.
The included mounting kit and compact form factor speed installation, while robust polyamide construction enhances durability in harsh environments. EN 61869-1/2 conformity minimizes calibration needs, and UL 94 ensures fire safety, contributing to lower maintenance costs and reduced downtime over the equipment lifecycle.
