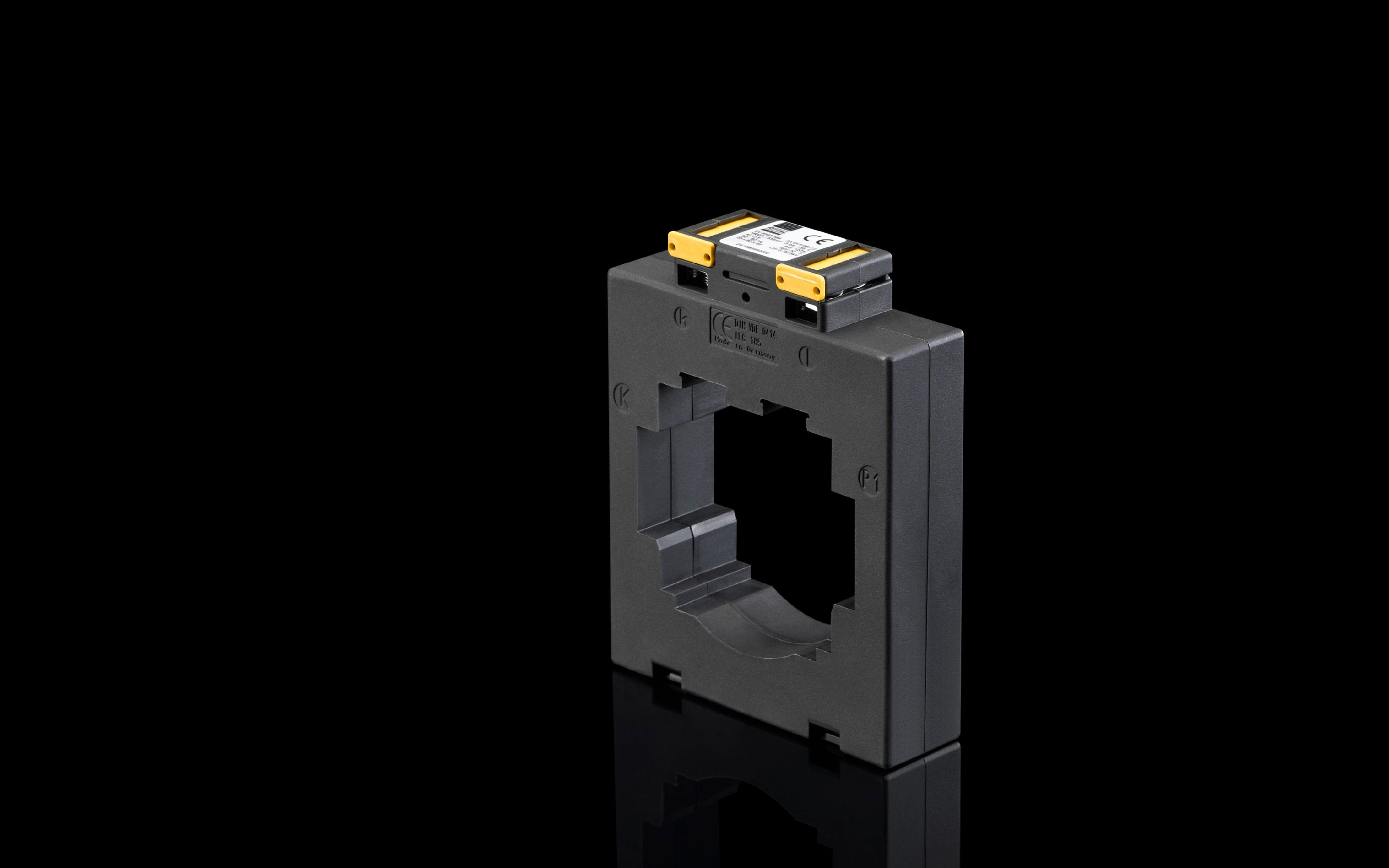

Rittal SV 9393.570 Power Distribution - EN 61869-1/2
Part Number: 9393570
Manufacturer
Rittal
Part number
9393570
Category
Alt Part Number
SV 9393.570
Quick Summary
Rittal SV 9393.570 is a compact busbar mounting accessory for reliable power distribution in electrical enclosures. Engineers often wrestle with securing insulation and maintaining clean, low-loss current paths in tight switchgear layouts. This part helps address those pains with a robust polyamide body, precise machining, and easy clamp assembly. It complies with EN 61869-1/2 and UL 94 fire protection, providing safety margins in harsh environments. The design also supports straightforward installation in standard control panels and switchgear, reducing assembly time and risk. By pairing high-current capability with durable materials, it offers a clear business value for panel builders and service providers, while complementing other Rittal power-management components.
Product Information
Article number
SV 9393.570
Design
Output voltage 333 mV
Material
Polyamide | Fire protection corresponding to UL 94
Colour
RAL 9005
Supply includes
2 plug-in feet | 4 insulating caps | 2 primary bar clamps | 4 grub screws
To fit busbars
null mm
Primary current
2,000 A
Standards
EN 61869-1/ 2
Dimensions
Width: 105 mm | Height: 132 mm | Depth: 30 mm
Operating temperature range
-5 °C...55 °C
Storage temperature range
-25 °C...75 °C
Ambient humidity (non-condensing)
10...90 %
Connection for round conductor
0.5 ‐ 2.5 mm²
Fundamental frequency
50...60 Hz
Accuracy Class
0.5
Insuslation material (class)
F
Packs of
1 pc(s).
Customs tariff number
85043129
EAN
4028177049888
Feature: High-current ready design supports up to 2,000 A primary current. Business Impact: Enables safe, stable current paths and reduces thermal stress in power distribution cabinets. Application: Ideal for Rittal switchgear and control panels needing robust busbar mounting. Feature: Output voltage 333 mV design. Business Impact: Improves accuracy in monitoring circuits and minimizes voltage drop in critical feeders. Application: Suitable for metering and protection circuits within compact enclosures. Feature: Supplied with 2 plug-in feet, 4 insulating caps, 2 primary bar clamps and 4 grub screws. Business Impact: Reduces installation time and ensures repeatable, reliable assembly. Application: Fast deployment in production lines and service projects. Feature: Dimensions 105 mm W × 132 mm H × 30 mm D. Business Impact: Delivers a compact footprint for dense cabinet layouts while preserving easy service access. Application: Fits in space-constrained control cabinets. Feature: Operating temperature -5 °C to 55 °C and ambient humidity 10–90%. Business Impact: Provides dependable performance across typical industrial environments and temperature swings. Application: Suitable for indoor electrical rooms and factory floors. Feature: Material Polyamide with UL 94 fire protection. Business Impact: Enhances fire safety compliance and material durability under electrical stress. Application: Indoor installations requiring certified insulation and mechanical resilience.
Get a Quick Quote for a Rittal 9393570
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9393570?
Enquire Now
FAQs
The SV 9393.570 ships with 2 plug-in feet, 4 insulating caps, 2 primary bar clamps and 4 grub screws. For installation, mount the accessory to the enclosure base, secure the busbars with the clamps, and fix using the grub screws. Ensure conductor cross-section is 0.5–2.5 mm² and verify the assembly is within the -5 to 55 °C operating window.
Key specs include a primary current rating of up to 2,000 A, an output voltage design of 333 mV, and a round-conductor connection capacity of 0.5–2.5 mm². The unit operates at 50–60 Hz and uses polyamide with UL 94 fire protection, supporting EN 61869-1/2 compliant metering and protection schemes.
Yes. It is designed for indoor electrical cabinets and control panels, with a -5 to 55 °C operating range and non-condensing humidity up to 90%. The polyamide body with UL 94 fire protection provides additional safety margins, making it suitable for dense, high-current installations within standard industrial environments.
The accessory complies with EN 61869-1/2 for current and voltage measurement assemblies and uses UL 94 fire protection-rated polyamide, supporting safety and compliance within typical switchgear and distribution cabinets.
The included hardware and robust construction reduce installation time and field errors, lowering commissioning costs. Durable materials and standard-compliant design help minimize maintenance needs and downtime, delivering longer service life in high-current distribution applications and improving overall return on investment.
