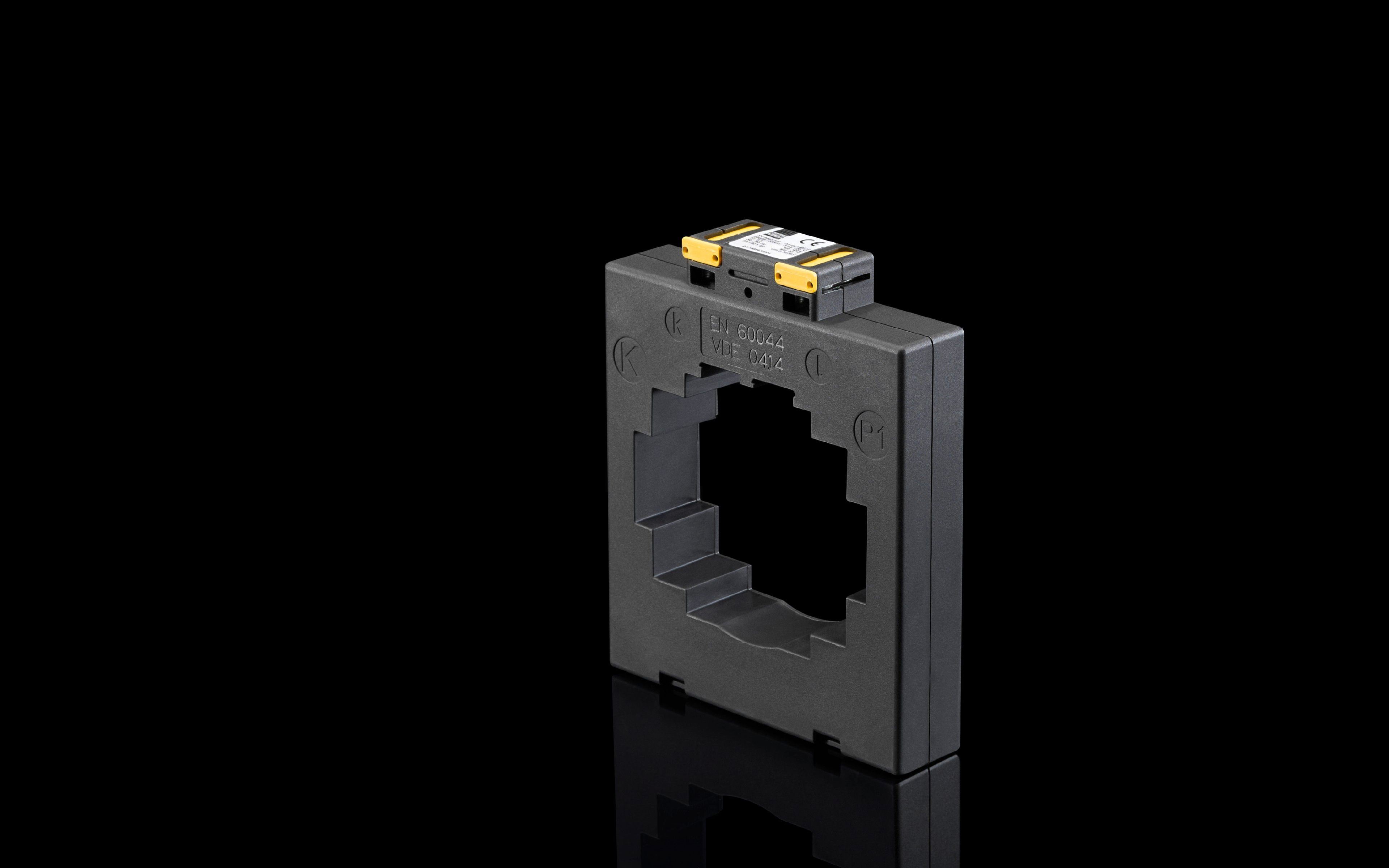

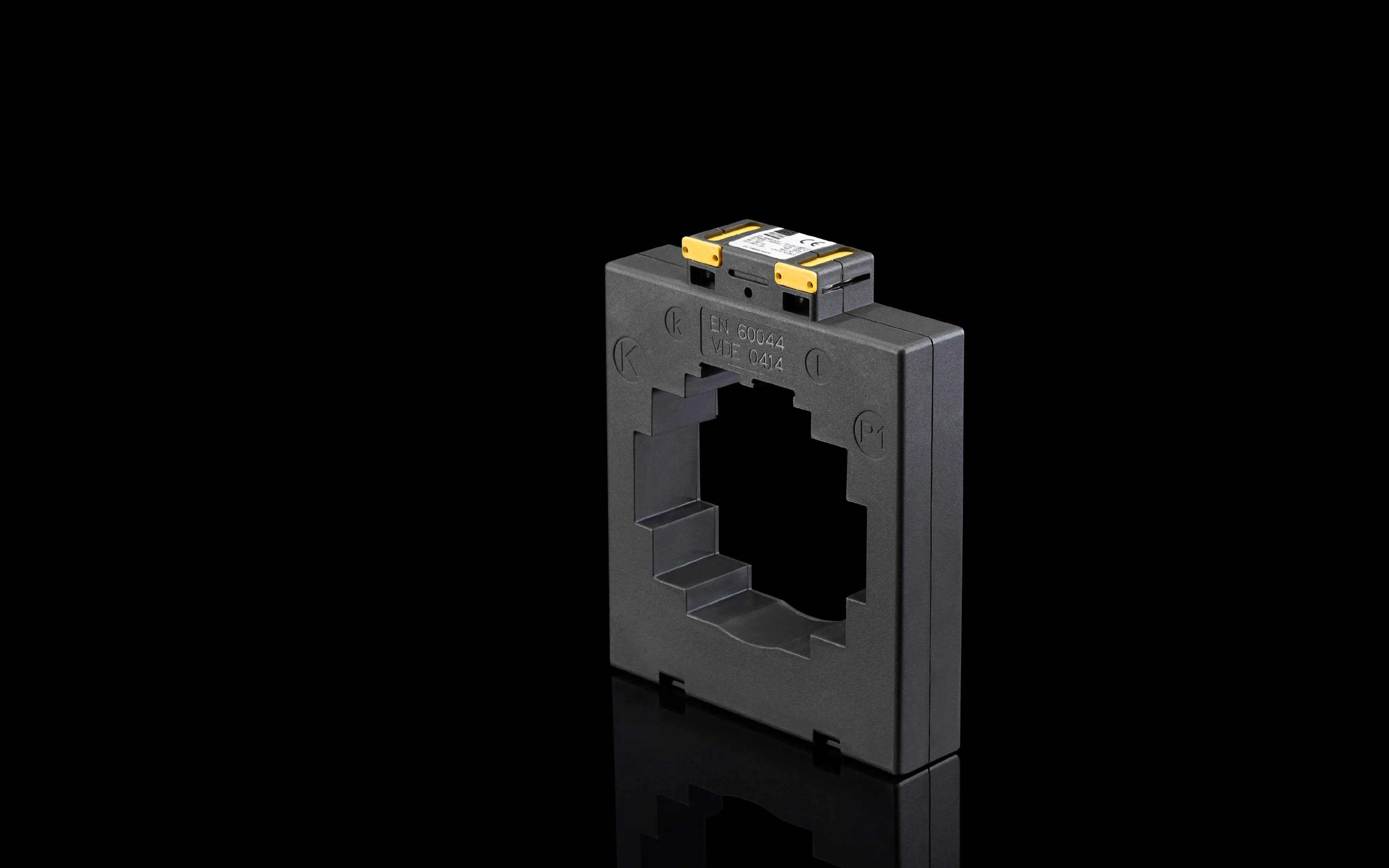

Rittal SV 9393.571 Power Meter - EN 61869-1/2
Part Number: 9393571
Manufacturer
Rittal
Part number
9393571
Category
Alt Part Number
SV 9393.571
Quick Summary
The Rittal SV 9393.571 power meter provides precise measurement for high-current busbar installations in industrial control panels. Engineers often struggle with accurate current sensing and compact integration within restricted enclosures. It complies with EN 61869-1/2 safety standards and uses UL 94 fire-rated polyamide material for reliability in harsh environments. This device delivers robust data for protection relays and energy management, while its compact 129x156x30 mm footprint simplifies panel layouts. By combining precise measurement with easy wiring, it reduces wiring errors and installation time. For manufacturers pursuing regulatory compliance and improved asset visibility, this unit offers a cost-effective, scalable solution within modern industrial automation ecosystems.
Product Information
Article number
SV 9393.571
Design
Output voltage 333 mV
Material
Polyamide | Fire protection corresponding to UL 94
Colour
RAL 9005
Supply includes
2 plug-in feet | 4 insulating caps | 2 primary bar clamps | 4 grub screws
To fit busbars
null mm
Primary current
2,000 A
Standards
EN 61869-1/ 2
Dimensions
Width: 129 mm | Height: 156 mm | Depth: 30 mm
Operating temperature range
-5 °C...55 °C
Storage temperature range
-25 °C...75 °C
Ambient humidity (non-condensing)
10...90 %
Connection for round conductor
0.5 ‐ 2.5 mm²
Fundamental frequency
50...60 Hz
Accuracy Class
0.5
Insuslation material (class)
F
Packs of
1 pc(s).
Customs tariff number
85043129
EAN
4028177049901
High-current measurement capability directly supports accurate protection and energy monitoring in busbar assemblies, reducing the risk of overcurrent events and improving system uptime. This translates to faster fault detection and safer operation in switchgear and control panels, while enabling precise data for PLCs and SCADA analytics. Compact, panel-friendly design saves enclosure space and simplifies integration in tight layouts, lowering enclosure redesign costs and speeding installation. The polyamide housing with UL 94 fire rating delivers reliable performance in harsh environments, supporting long service life with minimal maintenance. Ready-to-install with included feet, clamps, insulating caps, and screws, the unit reduces commissioning time and wiring errors. EN 61869-1/2 certification supports compliance across European installations, while the 0.5 accuracy class ensures stable measurements under varying loads. The device accepts 0.5–2.5 mm² round conductors, enabling flexible wiring schemes for diverse panel configurations. Its 50–60 Hz operation makes it suitable for global industrial applications, and the 2,000 A primary current rating accommodates demanding power modules. This combination supports cost-effective modernization and scalable energy management in automation projects.
Get a Quick Quote for a Rittal 9393571
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9393571?
Enquire Now
FAQs
SV 9393.571 ships with a ready-to-mount kit including 2 plug-in feet, 4 insulating caps, 2 primary bar clamps and 4 grub screws. It supports 0.5–2.5 mm² round conductors, enabling flexible wiring without excessive harnessing. The compact dimensions (width 129 mm, height 156 mm, depth 30 mm) allow mounting in space-constrained panels, while keeping reliable, screwless connections for quick commissioning.
Key specs include 0.5 class accuracy, primary current up to 2,000 A, and a 333 mV output voltage, which provides a simple interface to signal-processing stages. The device is rated for 50–60 Hz operation and uses UL 94 fire-rated polyamide. It conforms to EN 61869-1/2, ensuring compatibility with standard measurement and protection circuits in industrial controls.
Yes. It is designed for busbar monitoring with a primary current rating up to 2,000 A and a 333 mV output that interfaces neatly with standard instrumentation. The provided mounting and connection options support secure integration in switchgear and panel assemblies, while the compact form factor minimizes intrusion into the switchgear footprint.
The unit complies with EN 61869-1/2 for current and voltage measurement instruments, ensuring safe and reliable operation within typical industrial control environments. The housing material is UL 94 fire-rated polyamide, enhancing safety in applications exposed to elevated temperatures or fire-resistance requirements. These certifications support global deployment and regulatory alignment.
Installation is streamlined by the included mounting hardware, reducing time-to-value and wiring errors. Its compact size saves enclosure space, potentially lowering cabinet costs. The 0.5 accuracy class and robust material yield reliable data for protection and energy management, reducing nuisance trips and enabling better asset optimization, contributing to lower maintenance costs and improved overall equipment effectiveness (OEE).
