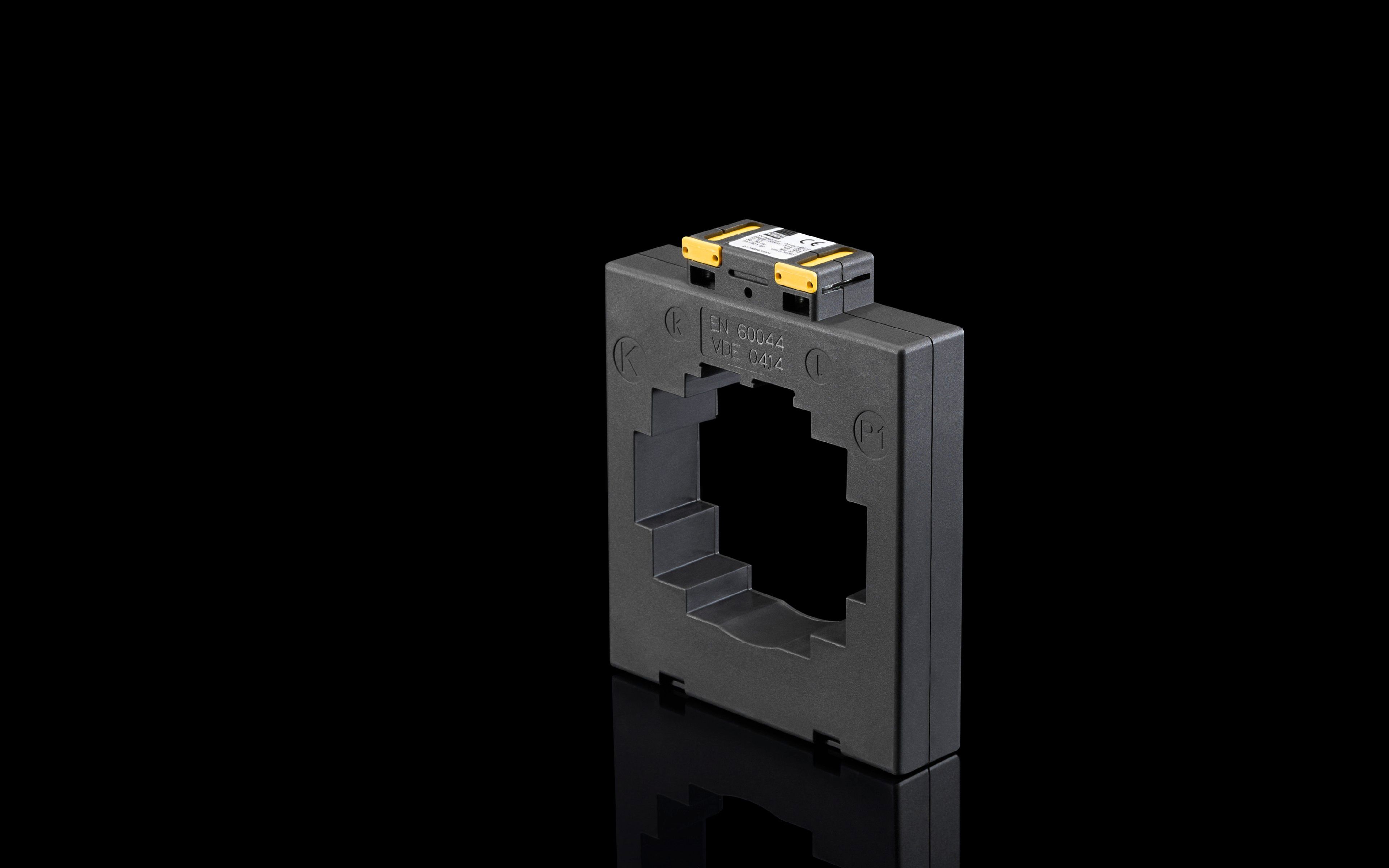

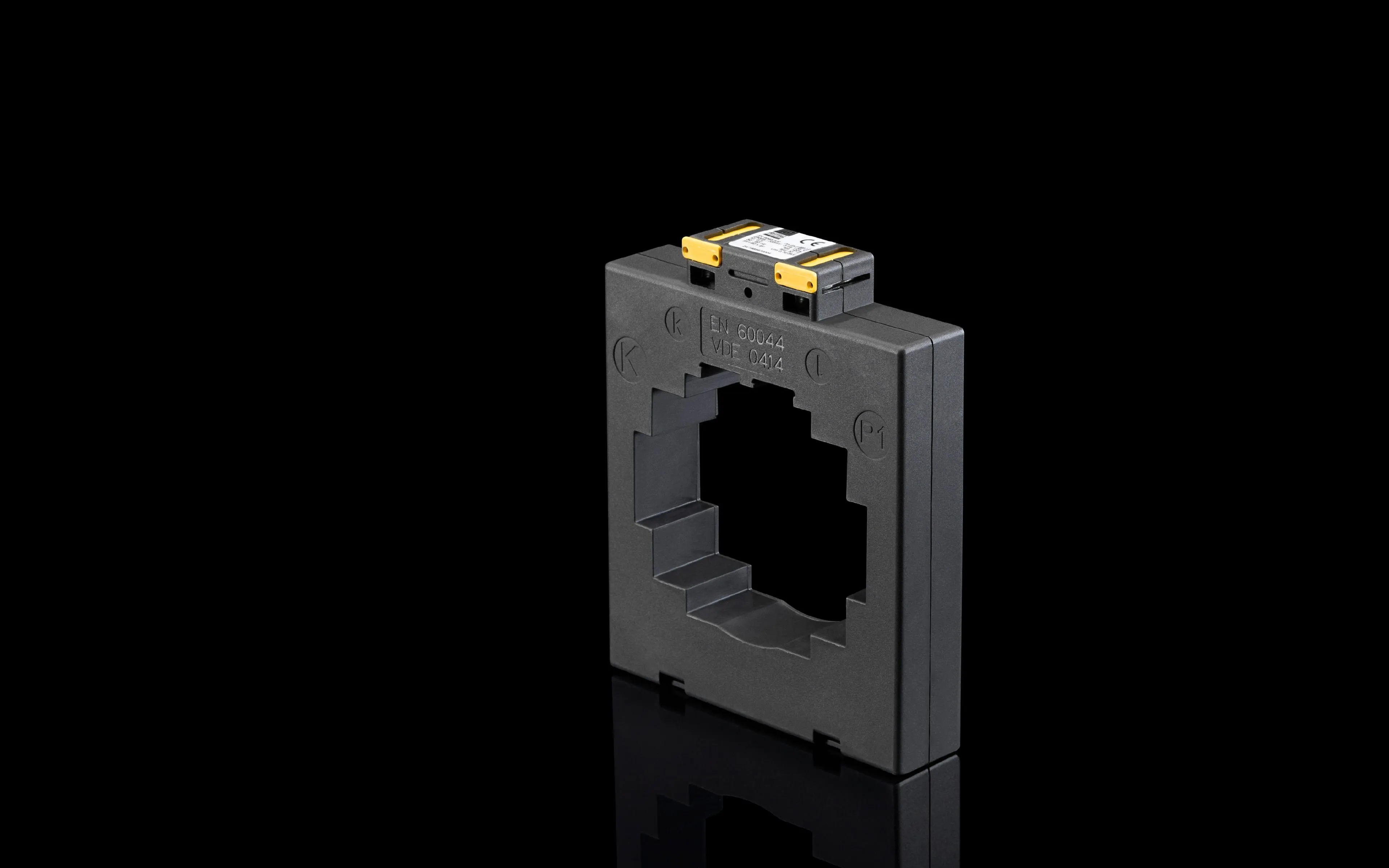

Rittal 9393573 Current Measurement Module - EN 61869-1/2
Part Number: 9393573
Manufacturer
Rittal
Part number
9393573
Category
Alt Part Number
SV 9393.573
Quick Summary
Rittal 9393573 current measurement module provides precise busbar monitoring for industrial distribution panels. Engineers often struggle with compact enclosures that demand accurate, reliable current sensing under harsh conditions. It complies with EN 61869-1/2 standards and UL 94 fire protection, helping you meet essential safety and regulatory requirements. The design supports 0.5–2.5 mm2 round conductors and a 2,500 A primary current rating, delivering clear value for switchgear and control cabinet applications while enabling scalable, compliant panel monitoring across projects.
Product Information
Article number
SV 9393.573
Design
Output voltage 333 mV
Material
Polyamide | Fire protection corresponding to UL 94
Colour
RAL 9005
Supply includes
2 plug-in feet | 4 insulating caps | 2 primary bar clamps | 4 grub screws
To fit busbars
null mm
Primary current
2,500 A
Standards
EN 61869-1/ 2
Dimensions
Width: 129 mm | Height: 156 mm | Depth: 30 mm
Operating temperature range
-5 °C...55 °C
Storage temperature range
-25 °C...75 °C
Ambient humidity (non-condensing)
10...90 %
Connection for round conductor
0.5 ‐ 2.5 mm²
Fundamental frequency
50...60 Hz
Accuracy Class
0.5
Insuslation material (class)
F
Packs of
1 pc(s).
Customs tariff number
85043129
EAN
4028177049949
Feature EN 61869-1/2 compliant measurement with 333 mV output → Business Impact Reduces integration time and minimizes measurement errors by aligning with standard instrumentation, improving overall panel accuracy. Application Suitable for busbar current sensing in control cabinets and switchgear. Feature Rugged polyamide enclosure with UL 94 fire protection → Business Impact Enhances safety compliance and enables use in challenging environments, reducing risk of fire-related failure. Application Ideal for industrial cabinets exposed to heat and vibration. Feature Conductors 0.5–2.5 mm2; 2,500 A primary current → Business Impact Supports diverse wiring schemes and high-current monitoring, enabling broader system coverage without multiple devices. Application Suitable for large power distribution panels and high-load feeders. Feature Compact footprint with included mounting hardware → Business Impact Frees panel space and speeds installation, lowering labor costs. Application Retrofits and new builds in space-constrained enclosures. Feature Operating range -5 to 55 °C; storage -25 to 75 °C; 10–90% humidity (non-condensing) → Business Impact Maintains reliable performance across varying plant environments, reducing maintenance calls. Application Factory floors and outdoor-rated enclosures. Feature Dimensions 129 mm width × 156 mm height × 30 mm depth → Business Impact Predictable fit for existing panel cutouts, simplifying redesigns and upgrades. Application Retrofit projects and modular cabinet builds.
Get a Quick Quote for a Rittal 9393573
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9393573?
Enquire Now
FAQs
Yes. The 9393573 is designed for standard panel installations with supplied plug-in feet and bar clamps, supporting round conductors from 0.5 to 2.5 mm2. Its compact footprint (129×156×30 mm) helps fit constrained enclosures in switchgear and control cabinets.
The device delivers an accuracy class of 0.5, a 333 mV output, and EN 61869-1/2 compliance. Its UL 94 fire-rated polyamide enclosure further supports safety requirements, making it suitable for certified panel monitoring in industrial environments.
Ideal for busbar current sensing in switchgear, power distribution panels, and control cabinets. It provides reliable, compact monitoring in space-limited enclosures while supporting 50–60 Hz systems and high-current applications up to 2,500 A.
Key certifications include EN 61869-1/2 and UL 94 fire protection. Operating temperature ranges from -5 to 55 °C with storage to -25 to 75 °C, and humidity tolerance of 10–90% non-condensing, ensuring dependable performance in typical industrial environments.
The module minimizes wiring complexity and installation time, reducing commissioning costs. Its robust polyamide enclosure and solid specifications translate to long service life with minimal maintenance, improving asset uptime and contributing to lower total cost of ownership in power-monitoring schemes.
