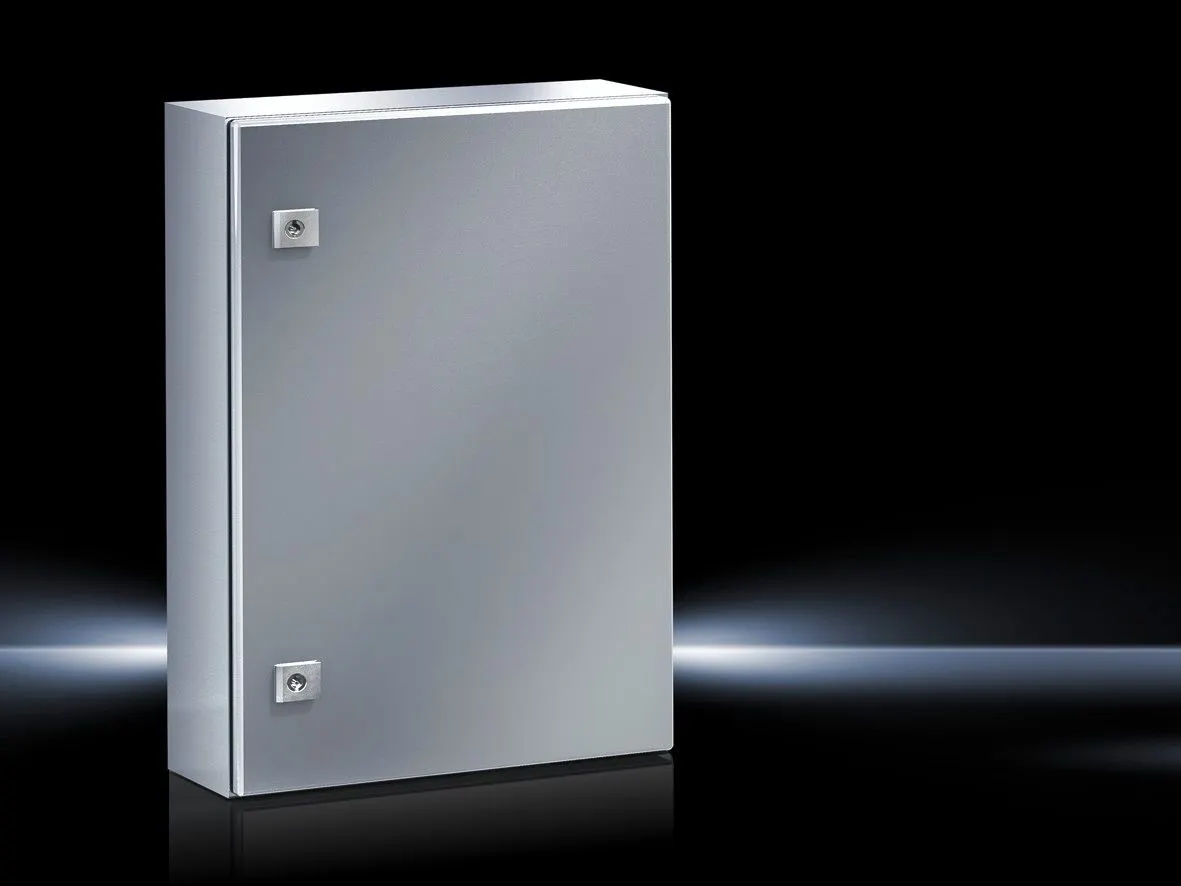

Rittal 9404600 Ex Enclosure - IP66/NEMA 4X Ex-Certified
Part Number: 9404600
Quick Summary
Rittal 9404600 Ex enclosure protects electrical gear in harsh, hazardous environments. Engineered to minimize ingress, corrosion, and downtime during panel maintenance, it addresses a common pain point for industrial teams. Certified for hazardous areas with IEC Ex PTB 09.0035U and PTB 02 ATEX 1082U, plus IP66 and NEMA 4X protection, it supports global compliance. With a mounting plate included and a brushed stainless steel body, it streamlines installation, reduces field adjustments, and helps maintenance teams keep critical equipment running, making it a dependable choice for automation projects in demanding facilities.
Product Information
Extended Description
9404600 Rittal: KEL Ex enclosure, WHD: 380x600x210 mm, Stainless steel 1.4301, with mounting plate, Empty enclosure with hinged door
Article number
KEL 9404.600
Design
Ex enclosures
Material
Enclosure: Stainless steel 1.4301 (AISI 304) | Door: Stainless steel 1.4301 (AISI 304), all-round foamed-in silicone seal | Mounting plate: Sheet steel
Surface finish
Enclosure: Brushed, grain 400, peak-to-valley height < 0.8 µm | Mounting plate: Zinc-plated
Supply includes
Enclosure | Door | Mounting plate
Dimensions
Width:Â 380 mm | Height:Â 600 mm | Depth:Â 210 mm
Dimensions mounting plate (W x H)
334 mm x 570 mm
Certificate IEC EX PTB 09.0035U
Yes
Certificate PTB 02 ATEX 1082U
Yes
Basic material
Stainless steel 1.4301 (AISIÂ 304)
Lock
Lock version:Â Cam | Number of locks:Â 2 | Lock insert:Â 3 mm double-bit
IP protection category to IEC 60 529
IP 66
Protection category NEMA
NEMA 4X
Type rating to UL 50E
Type 1
Packs of
1 pc(s).
Weight/pack
16.9 kg
Customs tariff number
94032080
EAN
4028177138773
ETIM 7.0
EC002503
ECLASS 8.0
27180502
Product description
KEL Ex enclosure, WHD: 380x600x210 mm, Stainless steel 1.4301, with mounting plate, Empty enclosure with hinged door
Feature: Stainless steel construction 1.4301; Business Impact: Superior corrosion resistance in chemical, washdown, and outdoor environments reduces replacement costs and downtime; Application: Ideal for hazardous-area control panels and outdoor automation cabinets. Feature: IP66 and NEMA 4X protection; Business Impact: Ensures ingress protection against dust, water, and harsh cleaning regimes, extending service life and lowering maintenance frequency; Application: Suitable for production floors, chemical plants, and exterior installations. Feature: Hinged door with all-round silicone seal; Lock: two cam locks with 3 mm double-bit; Business Impact: Fast, secure access combined with reliable sealing minimizes leakage risks and downtime during servicing; Application: Regular inspection schedules and live-panel access. Feature: Mounting plate included; Dimensions mounting plate: 334 mm x 570 mm; Business Impact: Simplifies internal component layout and reduces the need for separate mounting hardware; Application: Panel build-outs and customization scenarios. Feature: Certifications and UL rating; IEC Ex PTB 09.0035U; PTB 02 ATEX 1082U; UL Type 1; Business Impact: Demonstrates regulatory compliance across zones, enabling global deployments and risk reduction; Application: Hazardous-area installations across oil, gas, and processing industries. Feature: Dimensions and weight; WHD: 380x600x210 mm; Weight per pack 16.9 kg; Business Impact: Manageable installation footprint and predictable handling for field crews; Application: System integrator projects and retrofit programs.
Get a Quick Quote for a Rittal 9404600
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9404600?
Enquire Now
FAQs
Yes. The enclosure is certified for hazardous areas with IEC Ex PTB 09.0035U and PTB 02 ATEX 1082U, and it also carries IP66 and NEMA 4X ratings. This combination ensures safe operation in ATEX/IEC Ex zones, while meeting stringent environmental protection requirements for electrical enclosures.
The enclosure dimensions are Width 380 mm, Height 600 mm, Depth 210 mm (WHD 380x600x210). It ships with a mounting plate measuring 334 mm x 570 mm, which facilitates internal component layout and simplifies installation on standard frames or enclosures.
Constructed from stainless steel 1.4301 (AISI 304), the enclosure features IP66 protection and NEMA 4X rating for reliable ingress protection in harsh environments. The door and enclosure are designed for rugged service, with a brushed surface finish and durable silicone sealing.
Yes. The supply includes the enclosure, door, and mounting plate. It also offers two cam locks with a 3 mm double-bit insert for added security. This turnkey package reduces the need for separate components and accelerates deployment on site.
Installers should ensure proper sealing against dust and water ingress, verify regulatory markings for the exact zone, and use the included mounting plate for accurate panel layout. The stainless steel construction reduces corrosion-related maintenance, contributing to longer service life and lower total cost of ownership in hazardous-area automation projects.
