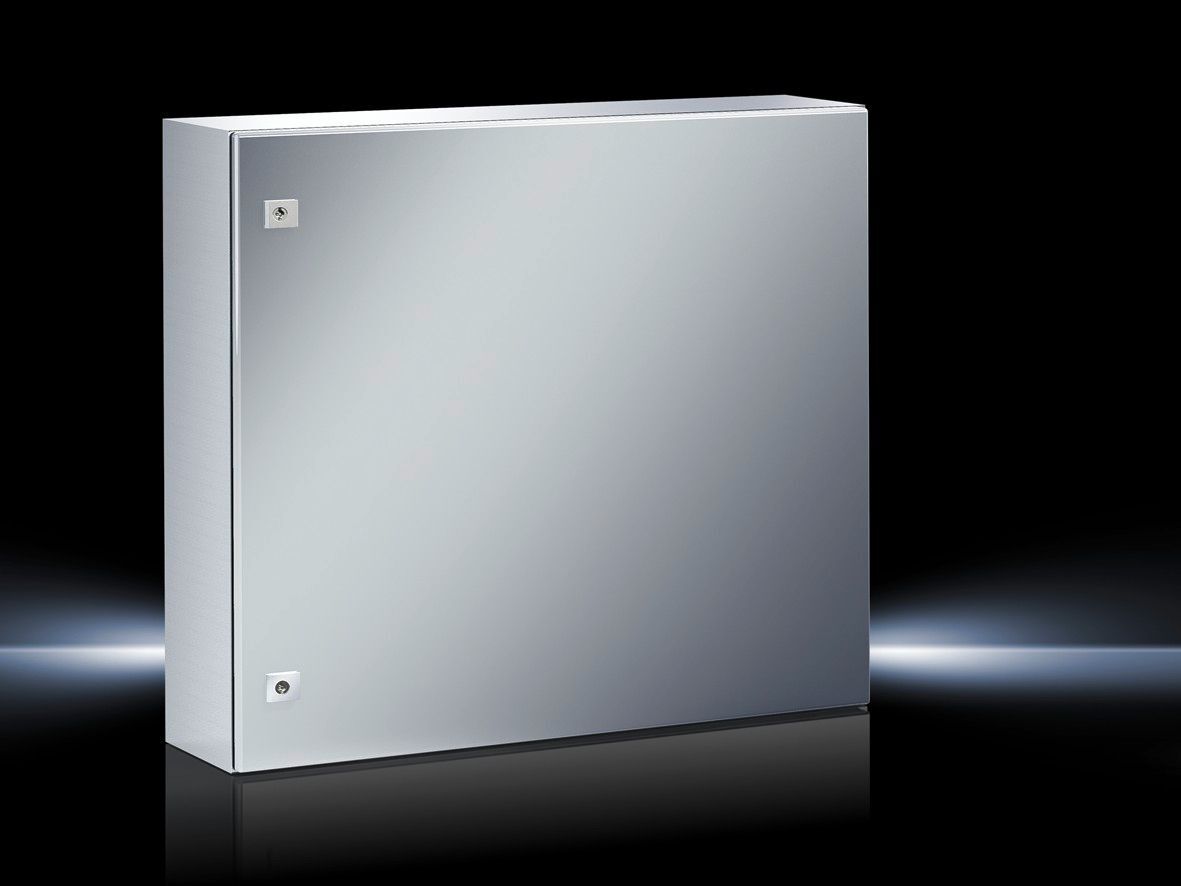

Rittal 9407600 Ex Enclosure - IP66, NEMA 4X, ATEX/IEC
Part Number: 9407600
Quick Summary
Rittal 9407600 Ex enclosure safely houses electrical equipment in hazardous environments. This stainless steel enclosure provides explosion protection and robust sealing for reliable operation in demanding process industries. Operators often struggle with corrosion, contamination, and compliance paperwork; the 1.4301 stainless steel construction offers excellent corrosion resistance, while the integrated mounting plate streamlines panel assembly. With IEC Ex PTB 09.0035U and PTB 02 ATEX 1082U certifications, IP66 ingress protection, and NEMA 4X rating, the unit meets global safety standards without compromising accessibility. The rugged design supports secure locking and long service life, reducing maintenance downtime. For engineering teams, the KEL 9407.600 helps achieve compliance, streamline installation, and protect control electronics in harsh environments, delivering clear lifecycle value.
Product Information
Extended Description
9407600 Rittal: KEL Ex enclosure, WHD: 760x760x300 mm, Stainless steel 1.4301, with mounting plate, Empty enclosure with hinged door
Article number
KEL 9407.600
Design
Ex enclosures
Material
Enclosure: Stainless steel 1.4301 (AISI 304) | Door: Stainless steel 1.4301 (AISI 304), all-round foamed-in silicone seal | Mounting plate: Sheet steel
Surface finish
Enclosure: Brushed, grain 400, peak-to-valley height < 0.8 µm | Mounting plate: Zinc-plated
Supply includes
Enclosure | Door | Mounting plate
Dimensions
Width: 760 mm | Height: 760 mm | Depth: 300 mm
Dimensions mounting plate (W x H)
704 mm x 730 mm
Certificate IEC EX PTB 09.0035U
Yes
Certificate PTB 02 ATEX 1082U
Yes
Basic material
Stainless steel 1.4301 (AISI 304)
Lock
Lock version: Cam | Number of locks: 2 | Lock insert: 3 mm double-bit
IP protection category to IEC 60 529
IP 66
Protection category NEMA
NEMA 4X
Type rating to UL 50E
Type 1
Packs of
1 pc(s).
Weight/pack
44.1 kg
Customs tariff number
94032080
EAN
4028177138865
ETIM 9
EC002503
ECLASS 8.0
27180502
Product description
KEL Ex enclosure, WHD: 760x760x300 mm, Stainless steel 1.4301, with mounting plate, Empty enclosure with hinged door
Feature: Construction uses stainless steel 1.4301 for the enclosure and door, with a sheet steel mounting plate. Business impact: Exceptional corrosion resistance and durability in wash-down and chemical exposure scenarios, reducing replacement costs. Application: Ideal for chemical plants and offshore facilities needing long-lasting protection for control cabinets. Feature: Integral mounting plate (704 mm x 730 mm) and full assembly including enclosure, door, and mounting plate. Business impact: Simplifies panel integration, accelerates installation, and supports standardized layouts for faster commissioning. Application: Control panel installations in industrial automation environments requiring modular fitment. Feature: Sealing and ingress protection (IP66) with an all-round silicone seal. Business impact: Superior protection against dust, water jets, and contaminants, minimizing downtime due to environmental ingress. Application: Outdoor or wash-down areas, food & beverage plants, and process lines. Feature: Certifications including IEC Ex PTB 09.0035U and PTB 02 ATEX 1082U plus NEMA 4X and UL Type 1. Business impact: Enables compliant operation in hazardous zones across global sites, reducing risk and inspection overhead. Application: Projects in hazardous-area automation and regulated industries. Feature: Security and access with two locks and 3 mm double-bit cam insert. Business impact: Enhanced cabinet security for critical instrumentation and reduced tampering risk. Application: Industrial control cabinets in plant floors and remote locations.
Get a Quick Quote for a Rittal 9407600
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9407600?
Enquire Now
FAQs
The 9407600 ships with an integrated mounting plate sized 704 mm x 730 mm, designed to fit the 760x760x300 mm footprint. Start by mounting the plate to a prepared frame or panel, align the enclosure, and secure using standard cavity screws. The hinged door and silicone seal provide reliable ingress protection once locked with the two 3 mm double-bit cam locks. Follow local electrical codes for wiring entry and gasket compression to maintain IP66 compliance.
This enclosure carries IEC Ex PTB 09.0035U and PTB 02 ATEX 1082U certifications, confirming explosion protection. It also provides IP66 ingress protection and NEMA 4X rating, with UL Type 1 compatibility for electrical safety. Together, these certifications support compliance across global sites in chemical, oil & gas, and other hazardous environments.
Yes. The IP66 rating and silicone door seal protect against dust and powerful water jets, while the stainless steel 1.4301 construction resists corrosion from moisture and chemicals. This makes it suitable for outdoor installations or wash-down areas common in process industries, ensuring reliable operation and reduced maintenance in challenging conditions.
The enclosure includes a mounting plate (704x730 mm) that accommodates standard panel components, simplifying layout planning and reducing installation time. Its 760x760x300 mm body fits typical enclosure spaces, and the two-lock security system provides controlled access. The design also supports easy door removal for service access without extensive disassembly.
With IP66/NEMA 4X protection, robust stainless steel construction, two cam locks, and certified explosion protection, the 9407600 Ex enclosure minimizes environmental risk and tampering. This combination lowers downtime, extends service life of sensitive electronics, and ensures compliance with industry standards in hazardous locations.
