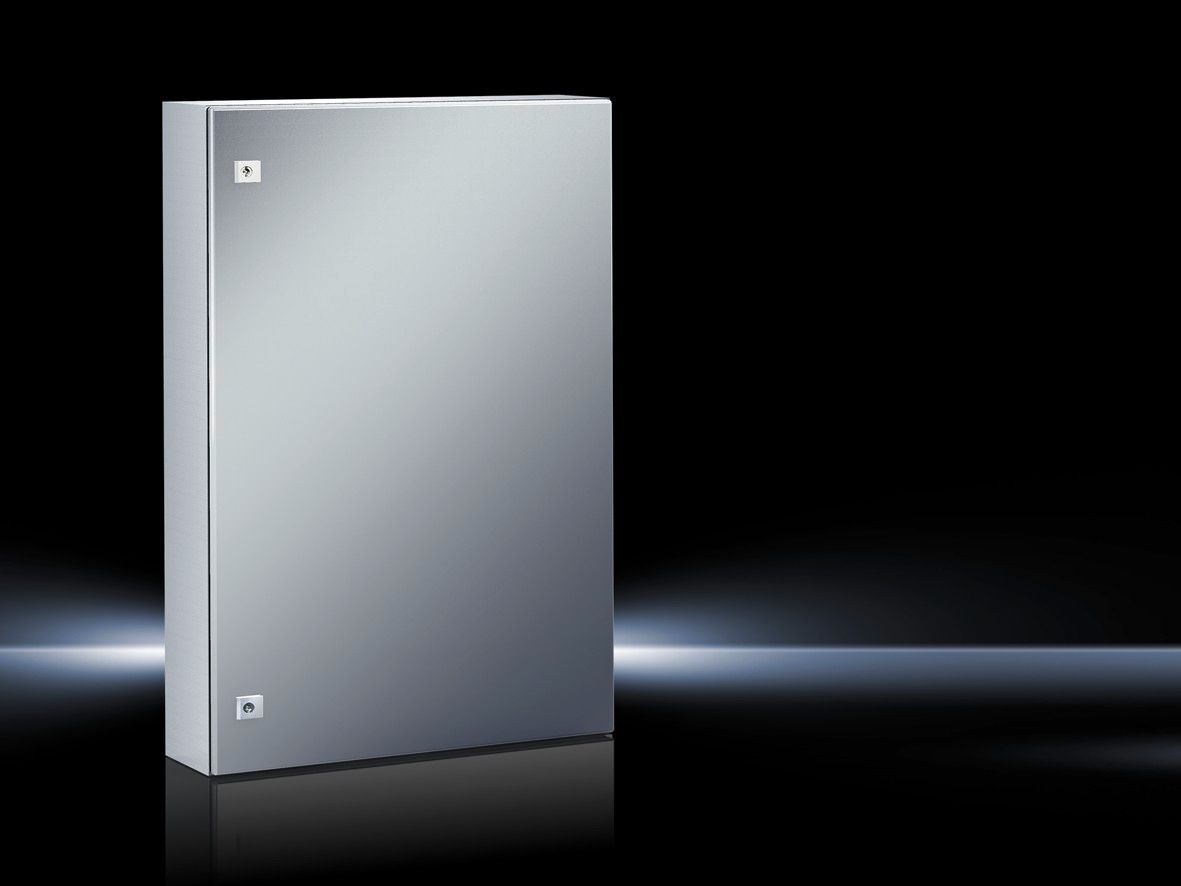

Rittal 9408600 Ex Enclosure - IEC Ex PTB 09.0035U
Part Number: 9408600
Quick Summary
Rittal 9408600 Ex enclosure provides a rugged stainless steel housing for hazardous-area electrical equipment. In demanding environments, dust, moisture and corrosion threaten uptime and safety. Certified IEC Ex PTB 09.0035U and ATEX PTB 02, plus IP66 and NEMA 4X, help ensure regulatory compliance across global installations. With the mounting plate included and a robust hinged door, this solution supports quick integration and long-term maintenance efficiency for automation and process industries.
Product Information
Extended Description
9408600 Rittal: KEL Ex enclosure, WHD: 800x1000x300 mm, Stainless steel 1.4301, with mounting plate, Empty enclosure with hinged door
Article number
KEL 9408.600
Design
Ex enclosures
Material
Enclosure: Stainless steel 1.4301 (AISI 304) | Door: Stainless steel 1.4301 (AISI 304), all-round foamed-in silicone seal | Mounting plate: Sheet steel
Surface finish
Enclosure: Brushed, grain 400, peak-to-valley height < 0.8 µm | Mounting plate: Zinc-plated
Supply includes
Enclosure | Door | Mounting plate
Dimensions
Width: 800 mm | Height: 1,000 mm | Depth: 300 mm
Dimensions mounting plate (W x H)
739 mm x 955 mm
Certificate IEC EX PTB 09.0035U
Yes
Certificate PTB 02 ATEX 1082U
Yes
Basic material
Stainless steel 1.4301 (AISI 304)
Lock
Lock version: Cam | Number of locks: 2 | Lock insert: 3 mm double-bit
IP protection category to IEC 60 529
IP 66
Protection category NEMA
NEMA 4X
Type rating to UL 50E
Type 1
Packs of
1 pc(s).
Weight/pack
57.8 kg
Customs tariff number
94032080
EAN
4028177138896
ETIM 7.0
EC002503
ECLASS 8.0
27180502
Product description
KEL Ex enclosure, WHD: 800x1000x300 mm, Stainless steel 1.4301, with mounting plate, Empty enclosure with hinged door
Feature: Stainless steel Ex enclosure construction with hinged door and included mounting plate → Business Impact: Delivers superior corrosion resistance and immediate installation readiness, reducing commissioning time and long-term maintenance costs in harsh environments. Application: Chemical processing plants, offshore facilities, and food & beverage packaging lines. Feature: IP66 protection and NEMA 4X enclosure rating → Business Impact: Ensures ingress protection against dust and water, improving equipment reliability and safety in outdoor or washdown areas. Application: Outdoor control cabinets, coastal facilities, and factory floors with heavy washdowns. Feature: Integrated mounting plate with precise mounting area (739 x 955 mm) and compatibility → Business Impact: Streamlines internal wiring and component layout, cutting panel build time and enabling repeatable layouts across machines. Application: OEM machine builds and modular SCADA/controller enclosures. Feature: Dual cam locks with 3 mm double-bit inserts → Business Impact: Provides secure access for maintenance while preserving fast serviceability, reducing tampering risk. Application: High-security environments and regulated facilities needing controlled access. Feature: UL Type 1 approval and robust door seal with silicone gasket → Business Impact: Supports electrical safety compliance in UL-listed panels and improves sealing performance at varying temperatures. Application: Industrial controls in automation systems and process equipment requiring reliable protection.
Get a Quick Quote for a Rittal 9408600
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9408600?
Enquire Now
FAQs
The 9408600 is designed with an included mounting plate and a standard 800x1000x300 mm housing. The mounting plate measures 739x955 mm, facilitating straightforward alignment with common control panel footprints and reducing integration time during OEM assembly.
Constructed from stainless steel 1.4301 (AISI 304) with a silicone-sealed hinged door, it achieves IP66 protection and NEMA 4X suitability. This combination provides excellent corrosion resistance, washdown compatibility, and reliable operation in demanding production settings.
Yes. The 9408600 carries IEC Ex PTB 09.0035U and ATEX PTB 02 certifications, making it appropriate for hazardous locations when configured with compliant internal components and wiring methods. Its robust construction supports safe operation in chemical processing environments.
Key certifications include IEC Ex PTB 09.0035U, ATEX PTB 02, UL Type 1, IP66, and NEMA 4X. These approvals cover hazardous-location compliance, electrical safety, and environmental protection for global deployments.
The stainless steel construction and sealed design reduce corrosion-related downtime, while the included mounting plate speeds installation. Long-term durability and compliance support lower lifecycle costs, especially in plants with frequent inspections or stringent regulatory requirements.
