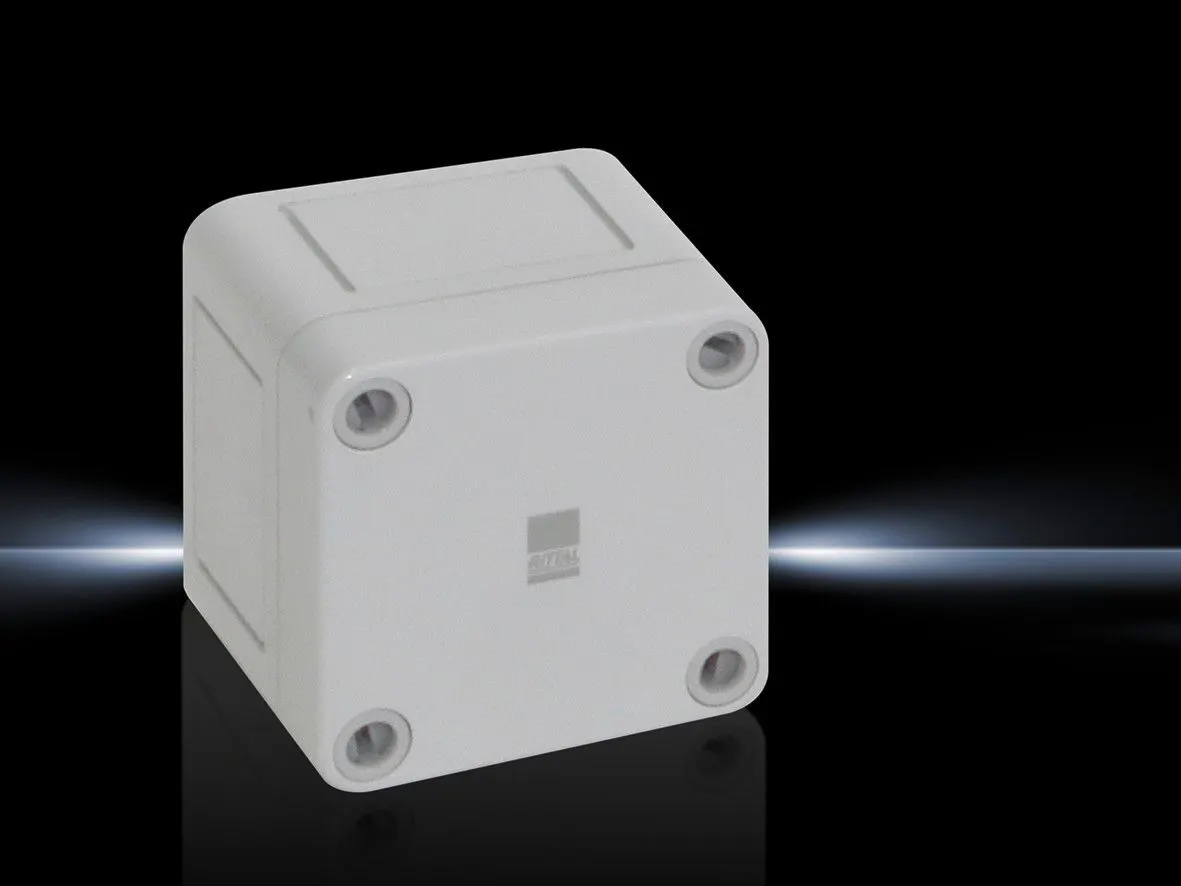

Rittal PK 9500.000 Enclosure - IP66
Part Number: 9500000
Manufacturer
Rittal
Part number
9500000
Alt Part Number
PK 9500.000
Quick Summary
Rittal PK 9500.000 enclosure protects control electronics in harsh industrial environments. This wall-mounted polycarbonate housing helps prevent downtime caused by dust, moisture, and ingress. Its IP66 and NEMA 4X ratings, combined with IK08 impact resistance and self-extinguishing material, deliver robust safety and reliability in demanding settings. Built for quick maintenance and long service life, it supports fast, safe enclosure changes while keeping wiring organized. For procurement teams, the polycarbonate construction reduces weight without sacrificing strength, and the included insulation bungs and cover screws simplify installation in a wide range of control panels.
Product Information
Extended Description
9500000 Rittal: PK Polycarbonate enclosure, WHD: 65x65x57 mm, fibreglass-reinforced polycarbonate, without knockouts, with grey cover
Article number
PK 9500.000
Design
PK enclosure with solid cover
Product description
Use within the ambient temperature range: -35 °C...+80 °C. The specified temperatures may be limited by the installed equipment.
Material
Enclosure: Fibreglass-reinforced polycarbonate | Cover grey: Fibreglass-reinforced polycarbonate, all-round foamed-in PU seal | Cover screws: Polyamide | Insulating bungs: Polyethylene
Colour
RAL 7035
Supply includes
Enclosure with cover | Cover screws | Insulating bungs for wall mounting screws
Protection category NEMA
NEMA 4X
Protection category to IEC 60 529
IP 66
IK Code
IK08
Dimensions
Width: 65 mm | Height: 65 mm | Depth: 57 mm
Operating temperature range
-35 °C...80 °C
Basic material
Polycarbonate
Packs of
12 pc(s).
Weight/pack
1.3 kg
Customs tariff number
94037000
EAN
4028177138933
ETIM 9
EC000261
ECLASS 8.0
27180101
Product description
PK Polycarbonate enclosure, WHD: 65x65x57 mm, fibreglass-reinforced polycarbonate, without knockouts, with grey cover
Feature – fibreglass-reinforced polycarbonate construction provides high impact resistance and chemical durability, enabling longer service intervals and reduced part replacements. Business impact – lowers total cost of ownership by extending enclosure life in demanding environments. Application – suitable for control panels in manufacturing and automation where frequent access is required. Feature – IP66 and NEMA 4X protection delivers superior ingress protection against dust, water and harsh conditions. Business impact – enhances machine uptime and supports regulatory compliance for harsh environments. Application – ideal for outdoor or damp installations in packaging, food & beverage, and process automation. Feature – IK08 impact resistance and self-extinguishing material improve safety and reliability. Business impact – minimizes risk during maintenance and reduces fire hazard concerns. Application – essential for high-availability panels in critical automation. Feature – quick-release cover screws and grey fibreglass cover enable rapid maintenance. Business impact – accelerates fault diagnosis and routine service, reducing downtime. Application – convenient for frequent access in panel-mounted installations. Feature – compact WHD 65x65x57 mm with wall-mounting provisions and included insulating bungs. Business impact – simplifies installation planning, reduces mounting time, and ensures secure sealing. Application – fits standard wall mounting schemes in compact control cabinets. Feature – operating temperature range -35 to 80 °C supports reliability across extreme environments. Business impact – ensures performance in ambient conditions, lowering risk of thermal-related failures. Application – suitable for a wide temperature spectrum in industrial facilities. Feature – lightweight 1.3 kg per pack and 12-pack packaging aids logistics. Business impact – reduces freight costs and inventory footprint. Application – streamlines procurement and warehouse handling for distributors and OEMs.
Get a Quick Quote for a Rittal 9500000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9500000?
Enquire Now
FAQs
Installation requires wall mounting using the included insulating bungs and screws. The enclosure ships with a grey cover and cover screws, and it is designed without knockouts to minimize unwanted openings. Ensure the operating environment stays within -35 °C to +80 °C and use the quick-release cover system to ease maintenance access while maintaining a seal against dust and moisture.
Yes. The PK 9500.000 offers IP66 ingress protection and NEMA 4X protection, making it suitable for outdoor or damp industrial settings. The fibreglass-reinforced polycarbonate construction provides durability against impact and corrosion in challenging conditions, while the self-extinguishing material enhances overall safety in electrical enclosures.
Key certifications include IP66 protection per IEC standards, NEMA 4X protection, IK08 impact resistance, and a fire-retardant material specification. The enclosure is designed for industrial control panels and aligns with ETIM 9 EC000261 and ECLASS 8.0 27180101 classifications, supporting standardized procurement and maintenance documentation.
The quick-release cover screws enable fast lid removal for service, reducing downtime during inspections or component replacement. The lightweight 1.3 kg per pack packaging simplifies handling, while the internal space with no knockouts allows cleaner cable management. These features collectively improve maintenance efficiency and system availability in continuous operation environments.
Best suited for control panels in manufacturing lines, packaging machines, and process automation where reliable ingress protection and quick access are critical. Its compact 65x65x57 mm footprint, weight efficiency, and robust material composition make it ideal for machine builders needing a durable, safe enclosure that supports fast field maintenance in harsh environments.
