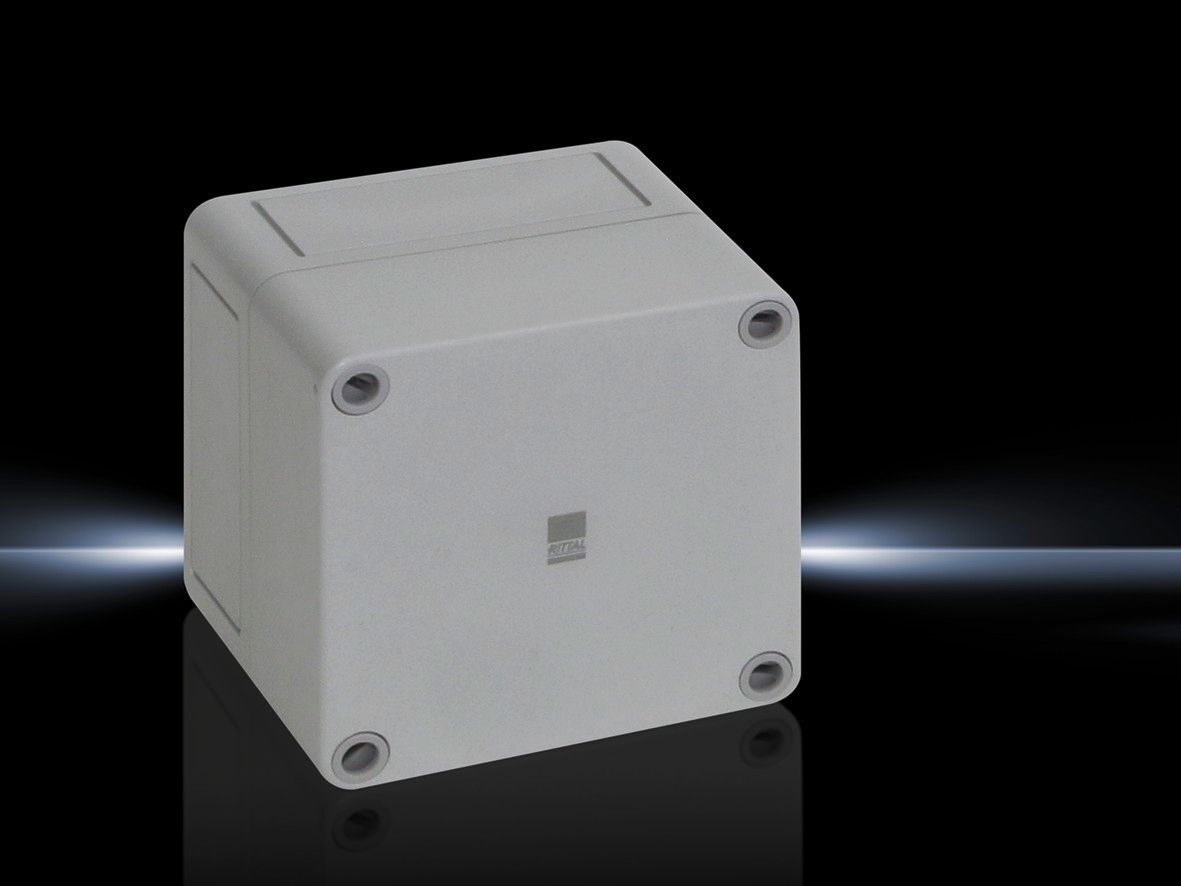

Rittal 9505000 Enclosure - IP66, Fibreglass-Reinforced PC
Part Number: 9505000
Manufacturer
Rittal
Part number
9505000
Alt Part Number
PK 9505.000
Quick Summary
Rittal 9505000 Enclosure provides rugged wall-mounted protection for electrical assemblies in harsh industrial environments. This enclosure helps prevent dust, moisture, and accidental contact from causing downtime or component failures. Engineers face maintenance challenges and costly unplanned outages; a robust housing reduces both. The PK 9505.000 offers IP66 ingress protection, NEMA 4X corrosion resistance, and IK08 impact durability, with a -35 to 80 °C operating range. Its fibreglass-reinforced polycarbonate construction combines lightweight handling with strength, while the grey cover adds durable weather resistance. Designed for reliability, it also supports quick service with secure, tool-free fasteners and compatible mounting accessories, delivering safer, standards-compliant panels and lower total cost of ownership for manufacturing, food, water treatment, and process industries.
Product Information
Extended Description
9505000 Rittal: PK Polycarbonate enclosure, WHD: 94x94x81 mm, fibreglass-reinforced polycarbonate, without knockouts, with grey cover
Article number
PK 9505.000
Design
PK enclosure with solid cover
Product description
Use within the ambient temperature range: -35 °C...+80 °C. The specified temperatures may be limited by the installed equipment.
Material
Enclosure: Fibreglass-reinforced polycarbonate | Cover grey: Fibreglass-reinforced polycarbonate, all-round foamed-in PU seal | Cover screws: Polyamide | Insulating bungs: Polyethylene
Colour
RAL 7035
Supply includes
Enclosure with cover | Cover screws | Insulating bungs for wall mounting screws
Protection category NEMA
NEMA 4X
Protection category to IEC 60 529
IP 66
IK Code
IK08
Dimensions
Width: 94 mm | Height: 94 mm | Depth: 81 mm
Operating temperature range
-35 °C...80 °C
Basic material
Polycarbonate
Packs of
6 pc(s).
Weight/pack
1.44 kg
Customs tariff number
94037000
EAN
4028177139138
ETIM 9
EC000261
ECLASS 8.0
27180101
Product description
PK Polycarbonate enclosure, WHD: 94x94x81 mm, fibreglass-reinforced polycarbonate, without knockouts, with grey cover
Material and protection enable reliable operation in demanding environments; fibreglass-reinforced polycarbonate provides a strong yet lightweight enclosure with IP66 and NEMA 4X ratings for dust, water, and corrosion resistance. This translates to fewer field failures and longer service intervals in automation panels and control keyboards. Compact WHD 94x94x81 mm fits dense installations, reducing panel footprint while preserving space for wiring and modules. The grey fibreglass-reinforced cover with an all-round foam PU seal ensures a robust, weather-tight seal during operation and maintenance, which lowers dust ingress and improves long-term performance in food processing or outdoor installations. Quick-release cover screws shorten maintenance cycles, enhancing line uptime and enabling faster switchover when replacing sensors or controllers. IK08 impact rating adds resilience against incidental impacts in busy factory floors, further reducing replacement costs.
Get a Quick Quote for a Rittal 9505000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9505000?
Enquire Now
FAQs
The 9505000 is designed for wall mounting with standard Rittal accessories. It ships with insulating bungs for wall mounting screws and cover screws, and its compact 94x94x81 mm footprint fits common DIN rail and panel installations. Compatibility with optional gaskets and clamps ensures a sealed, maintenance-friendly solution for control panels.
The enclosure provides IP66 ingress protection and NEMA 4X weather and corrosion resistance, suitable for harsh environments. It also carries IK08 impact resistance, ensuring robustness against mechanical shocks. These ratings help meet stringent industrial compliance requirements for outdoor and washdown areas.
The PK 9505.000 enclosure operates from -35 °C to 80 °C and is constructed from fibreglass-reinforced polycarbonate for the enclosure body, with a grey fibreglass-reinforced polycarbonate cover. This combination delivers electrical safety, flame retardancy, and stable performance across extreme ambient conditions.
Yes. The enclosure is designed to integrate with common Rittal wall-mounting fittings and covers. It ships with cover screws and insulating bungs for wall mounting screws, enabling a straightforward upgrade path for existing systems and easy addition of sensors or controllers without compromising IP66 sealing.
The quick-release cover screws enable fast maintenance, reducing downtime during instrument swaps or inspections. Its IP66/NEMA 4X protection minimizes ingress-related failures, lowering maintenance costs and replacement cycles. Lightweight yet sturdy materials improve handling on crowded lines, contributing to shorter commissioning times and a lower total cost of ownership.
