Rittal 9506000 PK enclosure - IP66
Part Number: 9506000
Manufacturer
Rittal
Part number
9506000
Alt Part Number
PK 9506.000
Quick Summary

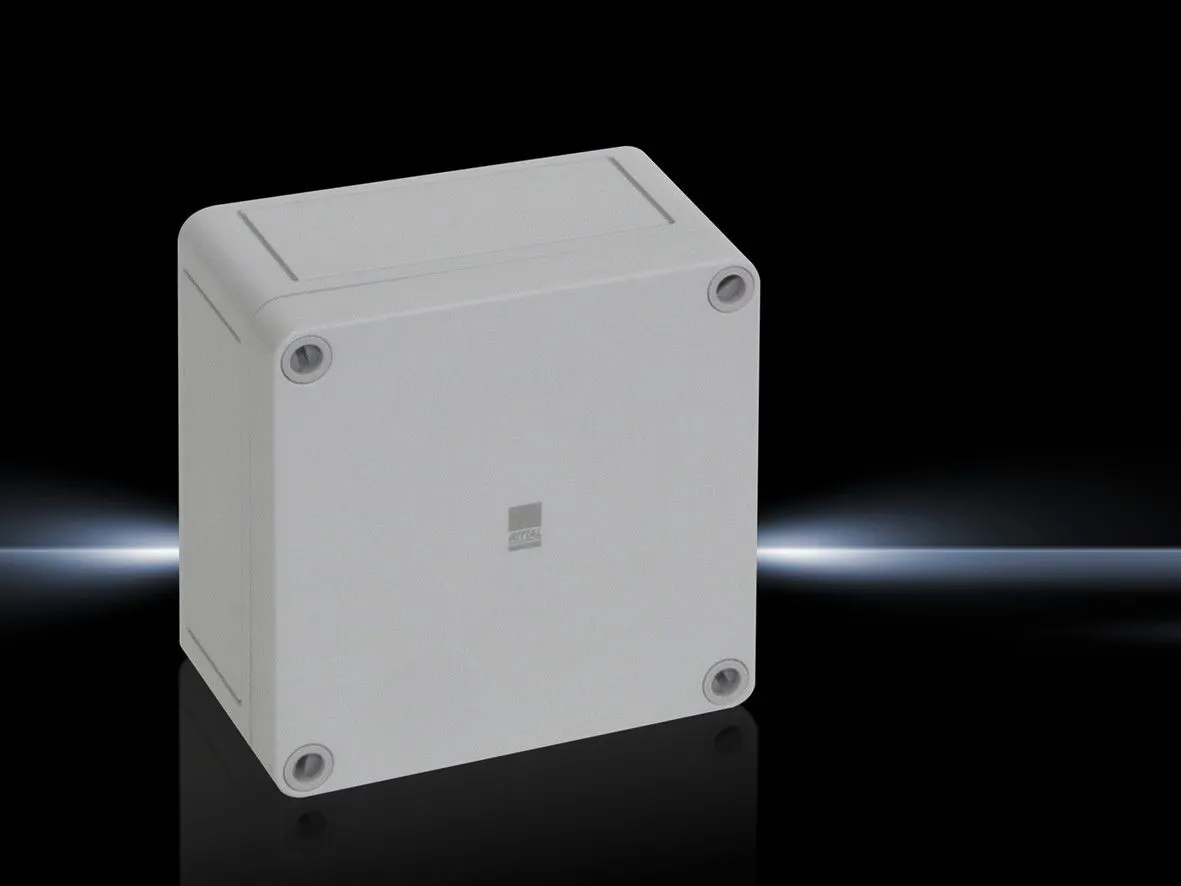

Rittal 9506000 PK enclosure is a wall-mounted polycarbonate housing designed to protect electrical and electronic components in demanding industrial environments. In tight control rooms and outdoor installations, maintenance downtime is a critical bottleneck; fast access and secure protection matter. This enclosure delivers IP66 weatherproofing, NEMA 4X compliance, and IK08 impact resistance, safeguarding equipment across harsh conditions. The fibreglass-reinforced polycarbonate construction offers durability with low weight, while the grey cover and quick-release fasteners streamline service and reduce maintenance cycles. Designed for quick installation and reliable performance, it provides a robust, cost-effective solution for automation cabinets, control panels, and field-distributed electronics.
Product Information
Extended Description
9506000 Rittal: PK Polycarbonate enclosure, WHD: 110x110x66 mm, fibreglass-reinforced polycarbonate, without knockouts, with grey cover
Article number
PK 9506.000
Design
PK enclosure with solid cover
Product description
Use within the ambient temperature range: -35 °C...+80 °C. The specified temperatures may be limited by the installed equipment.
Material
Enclosure: Fibreglass-reinforced polycarbonate | Cover grey: Fibreglass-reinforced polycarbonate, all-round foamed-in PU seal | Cover screws: Polyamide | Insulating bungs: Polyethylene
Colour
RAL 7035
Supply includes
Enclosure with cover | Cover screws | Insulating bungs for wall mounting screws
Protection category NEMA
NEMA 4X
Protection category to IEC 60 529
IP 66
IK Code
IK08
Dimensions
Width: 110 mm | Height: 110 mm | Depth: 66 mm
Operating temperature range
-35 °C...80 °C
Basic material
Polycarbonate
Packs of
6 pc(s).
Weight/pack
1.458 kg
Customs tariff number
94037000
EAN
4028177139176
ETIM 9
EC000261
ECLASS 8.0
27180101
Product description
PK Polycarbonate enclosure, WHD: 110x110x66 mm, fibreglass-reinforced polycarbonate, without knockouts, with grey cover
Feature: Fibreglass-reinforced polycarbonate enclosure provides high impact resistance while remaining relatively lightweight. Benefit: Extends service life and reduces downtime, especially in harsh industrial environments. Application: Ideal for control cabinets in manufacturing lines and outdoor installations. Feature: IP66 and NEMA 4X protection ensure moisture, dust and washdown resistance. Benefit: Compliance with demanding standards and safer, more reliable controls. Application: Food processing, chemical plants, and outdoor substations. Feature: Compact WHD of 110x110x66 mm and wall-mount design saves panel space and simplifies cabling. Benefit: Faster installation and easier retrofits in tight spaces. Application: Small automation kiosks and distributed field devices. Feature: Without knockouts but supplied with insulating bungs and wall-mount screws. Benefit: Flexible entry options and clean post-installation cabling. Application: Retrofit projects and refreshed panels where knockouts are undesirable. Feature: Quick-release cover screws enable rapid maintenance access. Benefit: Significantly reduced maintenance time and downtime. Application: Regular inspections and field service in harsh environments. Feature: Operating temperature range of -35 °C to 80 °C and grey RAL 7035 finish. Benefit: Versatile performance across indoor and outdoor environments with consistent appearance. Application: Industrial automation cabinets in varying climates.
Get a Quick Quote for a Rittal 9506000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9506000?
Enquire Now
FAQs
The PK 9506.000 is designed for wall mounting and ships with a grey cover, cover screws, and insulating bungs for wall mounting screws. It is supplied without knockouts, allowing flexible cabling entry. For installation, attach the enclosure to a flat wall using the included screws and bungs, ensure proper sealing with the PU gasket, and connect cables through the selected entry points. This setup supports quick retrofits and reduces on-site modification time.
This enclosure features IP66 protection and NEMA 4X suitability, providing robust protection against water, dust, and corrosion in demanding environments. It is constructed from fibreglass-reinforced polycarbonate with a grey cover and an all-round PU seal, delivering durability with a lightweight profile suitable for harsh industrial settings.
Yes. The operating temperature range is -35 °C to 80 °C, enabling outdoor and semi-exposed deployments in diverse climates. The IP66 rating ensures protection from wind-driven rain and moisture, while the IK08 rating provides impact resistance, making it suitable for outdoor automation and washdown areas where resilience is critical.
The enclosure adheres to NEMA 4X and IEC/IP66 protection standards, with IK08 impact resistance. It is associated with ETIM 9 EC000261 and ECLASS 8.0 27180101 classifications, and carries the EAN 4028177139176. These certifications support reliable procurement, compatibility with automation components, and safe operation in regulated environments.
The quick-release cover fasteners enable faster maintenance cycles, reducing downtime during inspections and replacements. The lightweight yet durable fibreglass-reinforced polycarbonate construction lowers transport and installation costs, while the compact 110x110x66 mm footprint supports denser panel layouts. Combined, these features improve uptime, ease retrofits, and deliver a lower total cost of ownership for controlled automation cabinets and field devices.
