Rittal PK 9508.000 Polycarbonate Enclosure - IP66
Part Number: 9508000
Manufacturer
Rittal
Part number
9508000
Alt Part Number
PK 9508.000
Quick Summary

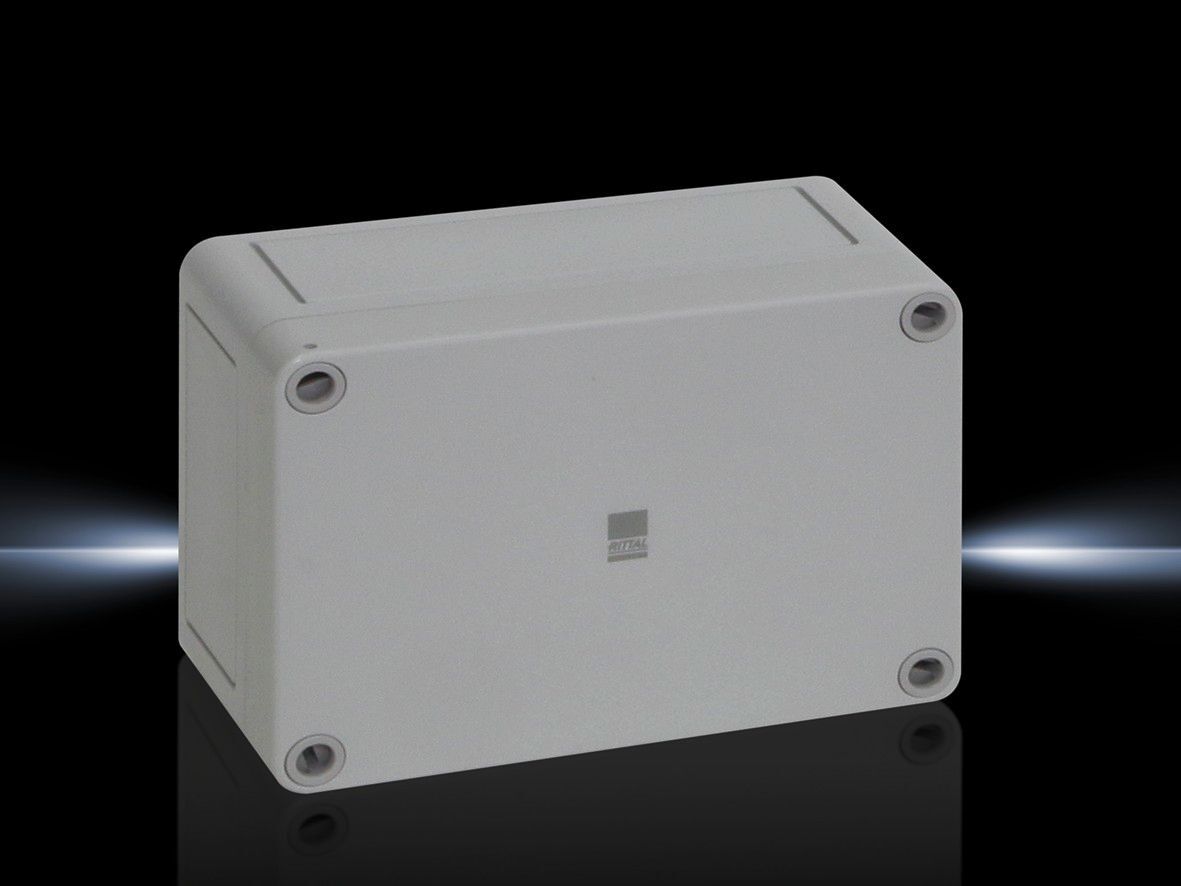

Rittal PK 9508.000 Polycarbonate Enclosure is a wall-mounted housing designed to protect sensitive electronics in harsh industrial environments. The compact 130x94x57 mm footprint uses fibreglass-reinforced polycarbonate for rugged durability while remaining lightweight for fast installation. Quick-release fasteners on the grey cover streamline maintenance and minimize downtime. IP66 sealing and NEMA 4X protection, combined with IK08 impact resistance, guard against dust, water spray, and impact on busy floors or outdoor locations. The enclosure operates from -35 to +80 °C, enabling reliable use across wide ambient conditions. For buyers, this combination supports safer, compliant installations and straightforward integration with common mounting hardware and accessories.
Product Information
Extended Description
9508000 Rittal: PK Polycarbonate enclosure, WHD: 130x94x57 mm, fibreglass-reinforced polycarbonate, without knockouts, with grey cover
Article number
PK 9508.000
Design
PK enclosure with solid cover
Product description
Use within the ambient temperature range: -35 °C...+80 °C. The specified temperatures may be limited by the installed equipment.
Material
Enclosure: Fibreglass-reinforced polycarbonate | Cover grey: Fibreglass-reinforced polycarbonate, all-round foamed-in PU seal | Cover screws: Polyamide | Insulating bungs: Polyethylene
Colour
RAL 7035
Supply includes
Enclosure with cover | Cover screws | Insulating bungs for wall mounting screws
Protection category NEMA
NEMA 4X
Protection category to IEC 60 529
IP 66
IK Code
IK08
Dimensions
Width: 130 mm | Height: 94 mm | Depth: 57 mm
Operating temperature range
-35 °C...80 °C
Basic material
Polycarbonate
Packs of
4 pc(s).
Weight/pack
0.9 kg
Customs tariff number
94037000
EAN
4028177139251
ETIM 9
EC000261
ECLASS 8.0
27180101
Product description
PK Polycarbonate enclosure, WHD: 130x94x57 mm, fibreglass-reinforced polycarbonate, without knockouts, with grey cover
Feature → Business Impact → Application: Fibreglass-reinforced polycarbonate enclosure plus a grey cover with all-round PU seal delivers high mechanical strength, UV resistance, and chemical compatibility while staying lightweight for easier handling. This reduces replacement cycles and maintenance costs, especially in washdown zones or outdoor cabinets. Application: robust control panel housings in demanding manufacturing environments. Feature → Business Impact → Application: IP66 sealing and NEMA 4X protection provide dependable ingress protection against dust and water exposure, enabling reliable operation in washdown areas and harsh production floors. This simplifies compliance with environmental standards and lowers field failure rates. Application: panel enclosures in food & beverage lines, automotive assembly, and outdoor installations. Feature → Business Impact → Application: IK08 impact resistance minimizes damage from incidental impacts and handling, reducing downtime and service calls. Application: equipment bays near conveyors, robotics zones, and mobile test benches. Feature → Business Impact → Application: Quick-release covers speed maintenance, shortening service windows and increasing line availability. Application: frequent inspection points, control panel reconfigurations, and field upgrades. Feature → Business Impact → Application: Compact WHD 130x94x57 mm and a light 0.9 kg pack weight (per pack of 4) enable streamlined logistics and easier on-site installation. Application: space-constrained control cabinets and modular panel builds.
Get a Quick Quote for a Rittal 9508000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9508000?
Enquire Now
FAQs
PK 9508.000 is designed for wall mounting and ships with insulating bungs and cover screws suitable for standard wall mounting hardware. Its compact WHD 130x94x57 mm footprint fits tight spaces, making it ideal for compact control panels and service vehicle installations while maintaining IP66 and NEMA 4X protection.
The enclosure operates from -35 °C to +80 °C, supporting reliable performance in a wide range of environments. It features IP66 sealing for dust and water ingress, NEMA 4X protection for washdown and corrosive environments, and IK08 impact resistance for mechanical durability.
Yes. With IP66 sealing and NEMA 4X protection, it is engineered for washdown areas and harsh production floors. IK08 adds impact resistance, so the enclosure remains protective even in high-traffic zones and with occasional tool or material contact.
The grey cover uses quick-release fasteners, enabling faster access to internal components. This reduces maintenance downtime, shortens inspection and reconfiguration cycles, and improves line availability during commissioning, upgrades, or routine servicing.
The enclosure is made from fibreglass-reinforced polycarbonate with an all-round PU-sealed cover, providing chemical resistance, UV stability, and strong mechanical performance. IK08 confirms impact resistance, while the solid construction supports reliable operation across diverse industrial applications.
