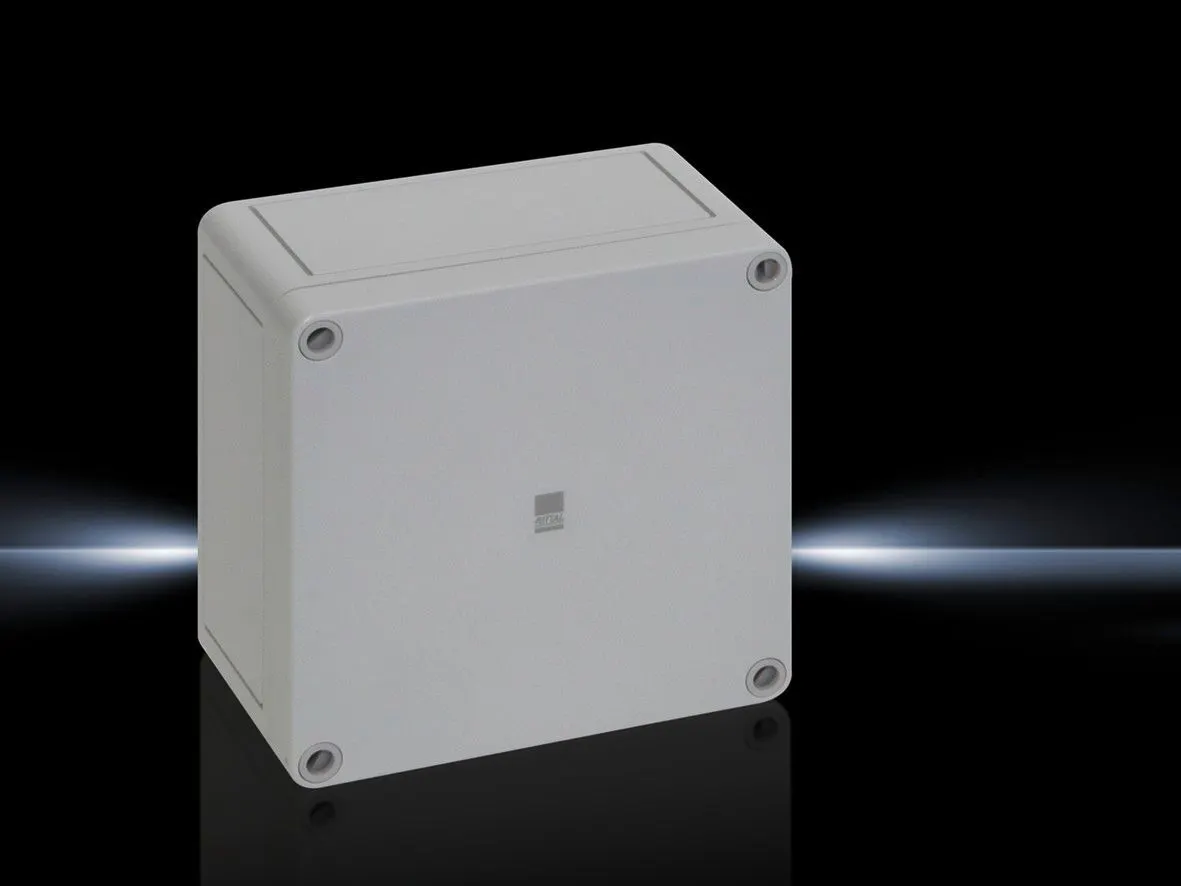

Rittal 9510000 Wall-mounted Enclosure - IP66 NEMA 4X
Part Number: 9510000
Manufacturer
Rittal
Part number
9510000
Alt Part Number
PK 9510.000
Quick Summary
Rittal 9510000 wall-mounted enclosure protects electrical and control gear in harsh environments, keeping panels safe in compact spaces. Maintenance can be time-consuming when enclosures require tools and knockouts; this model uses quick-release fasteners for fast, tool-free maintenance. Designed for tough conditions, it delivers IP66 protection, NEMA 4X suitability, and IK08 impact resistance, with fibreglass-reinforced polycarbonate that withstands temperature swings and chemical exposure. For OEMs and integrators, the enclosure offers reliable compliance, easy installation, and long-term cost efficiency, supported by standardized fittings and clear mounting options.
Product Information
Extended Description
9510000 Rittal: PK Polycarbonate enclosure, WHD: 130x130x75 mm, fibreglass-reinforced polycarbonate, without knockouts, with grey cover
Article number
PK 9510.000
Design
PK enclosure with solid cover
Product description
Use within the ambient temperature range: -35 °C...+80 °C. The specified temperatures may be limited by the installed equipment.
Material
Enclosure: Fibreglass-reinforced polycarbonate | Cover grey: Fibreglass-reinforced polycarbonate, all-round foamed-in PU seal | Cover screws: Polyamide | Insulating bungs: Polyethylene
Colour
RAL 7035
Supply includes
Enclosure with cover | Cover screws | Insulating bungs for wall mounting screws
Protection category NEMA
NEMA 4X
Protection category to IEC 60 529
IP 66
IK Code
IK08
Dimensions
Width: 130 mm | Height: 130 mm | Depth: 75 mm
Operating temperature range
-35 °C...80 °C
Basic material
Polycarbonate
Packs of
4 pc(s).
Weight/pack
1.2 kg
Customs tariff number
94037000
EAN
4028177139336
ETIM 9
EC000261
ECLASS 8.0
27180101
Product description
PK Polycarbonate enclosure, WHD: 130x130x75 mm, fibreglass-reinforced polycarbonate, without knockouts, with grey cover
Fibreglass-reinforced polycarbonate enclosure with a solid grey cover and all-round foamed-in PU seal provides rugged, weather-resistant protection, reducing corrosion risk and extending service life in outdoor and factory environments. This translates to lower replacement costs and improved uptime for critical control panels in manufacturing lines. The IP66/NEMA 4X rating, combined with IK08 impact resistance, ensures reliable ingress protection against dust, water jets, and physical shocks, making it suitable for wash-down zones and harsh industrial spaces. The compact WHD of 130x130x75 mm fits tight panel layouts while delivering dependable enclosure integrity; at 1.2 kg per pack and 4 packs per carton, installation logistics remain efficient and cost-effective. Quick-release cover screws enable tool-free maintenance, minimizing downtime during routine inspections and field upgrades, while the included insulating bungs and mounting hardware streamline wall-mount integration. Color coded in RAL 7035 for consistent plant aesthetics and safety compliance, the PK 9510.000 supports long-term reliability in dynamic industrial environments.
Get a Quick Quote for a Rittal 9510000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9510000?
Enquire Now
FAQs
Begin by selecting a solid mounting surface and using the supplied insulating bungs and wall screws to secure the enclosure. Because the design is without knockouts, align your internal components before fastening. Ensure the PU seal is properly seated, then close the cover with the quick-release screws for a tight, protected seal.
Key specs include WHD 130x130x75 mm, fibreglass-reinforced polycarbonate body with grey cover, IP66 protection, NEMA 4X compatibility, IK08 impact resistance, operating temperature range -35 °C to 80 °C, and color RAL 7035. It ships with the enclosure, cover screws, and insulating bungs for wall mounting.
Yes. The combination of IP66 ingress protection and NEMA 4X suitability provides robust dust and water resistance, while the fibreglass-reinforced polycarbonate construction resists UV exposure and chemical wipes. It’s well-suited for outdoor control panels, wash-down zones, and harsh production floors.
Absolutely. The design features quick-release cover fasteners that allow tool-free access for maintenance or field upgrades. The gasket seal is all-round foamed-in PU, maintaining protection after repeated cover removals and reattachments, which helps minimize downtime during servicing and inspections.
The enclosure offers long-term cost advantages through durable polycarbonate construction, high ingress protection, and simple maintenance access. While initial purchase covers robust protection and fast installation, reduced downtime, fewer replacement parts, and straightforward mounting contribute to lower lifecycle costs for panel builders and system integrators.
