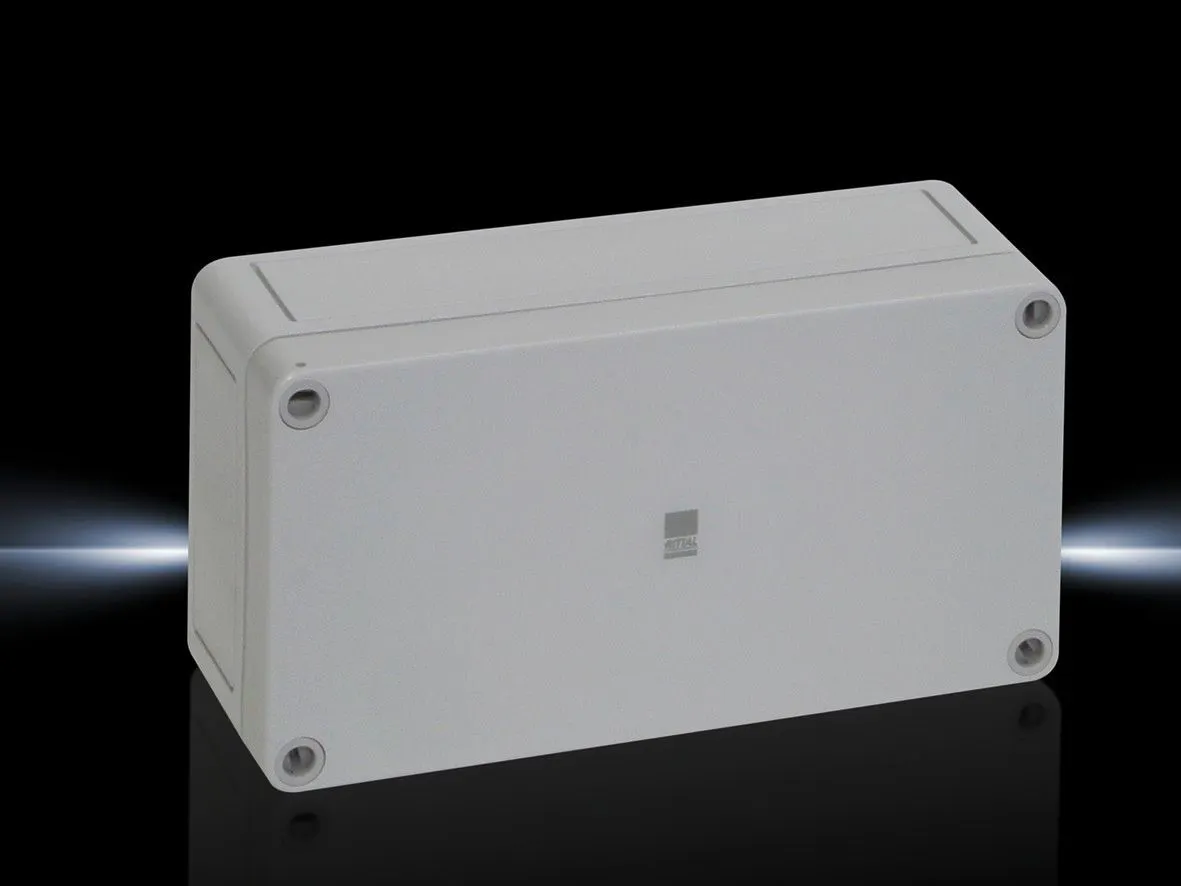

Rittal 9512000 PK Polycarbonate Enclosure - IP66
Part Number: 9512000
Manufacturer
Rittal
Part number
9512000
Alt Part Number
PK 9512.000
Quick Summary
The Rittal PK polycarbonate enclosure provides durable IP66 protection for electrical devices in harsh industrial settings. Engineers often grapple with maintenance downtime when enclosures are hard to access or fail to seal against dust and moisture. It carries IP66 and NEMA 4X ratings with IK08 impact resistance, ensuring reliable operation in demanding environments. For quick maintenance and peace of mind, its wall-mounted design, fibreglass-reinforced polycarbonate construction, and quick-release cover minimize service time while supporting safe, compliant installations and long-term cost efficiency.
Product Information
Extended Description
9512000 Rittal: PK Polycarbonate enclosure, WHD: 180x94x57 mm, fibreglass-reinforced polycarbonate, without knockouts, with grey cover
Article number
PK 9512.000
Design
PK enclosure with solid cover
Product description
Use within the ambient temperature range: -35 °C...+80 °C. The specified temperatures may be limited by the installed equipment.
Material
Enclosure: Fibreglass-reinforced polycarbonate | Cover grey: Fibreglass-reinforced polycarbonate, all-round foamed-in PU seal | Cover screws: Polyamide | Insulating bungs: Polyethylene
Colour
RAL 7035
Supply includes
Enclosure with cover | Cover screws | Insulating bungs for wall mounting screws
Protection category NEMA
NEMA 4X
Protection category to IEC 60 529
IP 66
IK Code
IK08
Dimensions
Width: 180 mm | Height: 94 mm | Depth: 57 mm
Operating temperature range
-35 °C...80 °C
Basic material
Polycarbonate
Packs of
2 pc(s).
Weight/pack
0.62 kg
Customs tariff number
94037000
EAN
4028177139411
ETIM 9
EC000261
ECLASS 8.0
27180101
Product description
PK Polycarbonate enclosure, WHD: 180x94x57 mm, fibreglass-reinforced polycarbonate, without knockouts, with grey cover
Feature: Fibreglass-reinforced polycarbonate enclosure with grey cover and self-extinguishing material; Business Impact: Enhanced durability, flame safety, and robust protection in demanding environments; Application: Control cabinets and electronics housings in manufacturing and process facilities. Feature: IP66 protection and NEMA 4X rating with IK08 impact resistance; Business Impact: Prevents dust, water, and physical damage, reducing unscheduled downtime and improving equipment longevity; Application: Outdoor installations, washdown areas, and harsh production lines. Feature: Wall-mount design with quick-release cover screws; Business Impact: Accelerates commissioning and maintenance cycles, lowering labour costs; Application: Frequent access panels and modular control points. Feature: Enclosure without knockouts and included insulating bungs; Business Impact: Tailored cable entry and flexible installation, lowering rework and improving seal integrity; Application: Custom electrical layouts in tight spaces. Feature: Operating temperature range of -35 °C to +80 °C; Business Impact: Broad ambient suitability reduces the need for alternatives and stocking different SKUs; Application: Extreme environments, cold rooms, and high-heat machinery enclosures. Feature: Pack configuration and weight efficiency (2 pcs per pack, 0.62 kg per pack); Business Impact: Simplified logistics and scalable deployment; Application: Quick-supply enclosures for multi-point installations and rapid expansion.
Get a Quick Quote for a Rittal 9512000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9512000?
Enquire Now
FAQs
Yes. The PK 9512.000 is designed for wall mounting and includes insulating bungs for wall mounting screws, making it straightforward to install on standard vertical surfaces while preserving ingress protection.
The enclosure provides IP66 and NEMA 4X protection with IK08 impact resistance, and operates reliably from -35 °C to 80 °C, enabling safe enclosure of electronics across extreme environments.
Yes. With IP66 and NEMA 4X ratings, it is well-suited for outdoor or washdown areas, offering robust dust ingress protection and water resistance for dependable performance.
The enclosure conforms to IP66/NEMA 4X specs, IK08 impact rating, and is specified with materials like fibreglass-reinforced polycarbonate, with a grey cover suitable for industrial installations.
The quick-release screws speed up access, reducing downtime during inspections and service calls, lowering labour costs and enabling faster equipment servicing without compromising seal integrity.
