Rittal PK 9513.000 Wall-mounted enclosure - IP66
Part Number: 9513000
Manufacturer
Rittal
Part number
9513000
Alt Part Number
PK 9513.000
Quick Summary
Rittal PK 9513.000 is a wall-mounted enclosure designed to protect electrical components in harsh indoor environments. Engineers often struggle with fast maintenance cycles, limited mounting options, and inadequate ingress protection in crowded control panels. This enclosure delivers IP66, NEMA 4X, and IK08 ratings to meet demanding industrial conditions while maintaining a compact footprint. Its fibreglass-reinforced polycarbonate construction and grey cover enhance safety and longevity, even in temperature extremes. By combining quick-release fasteners with a robust seal, it enables faster servicing and consistent reliability, supporting efficient lifecycle management and reduced downtime for your automation projects.
Product Information
Extended Description

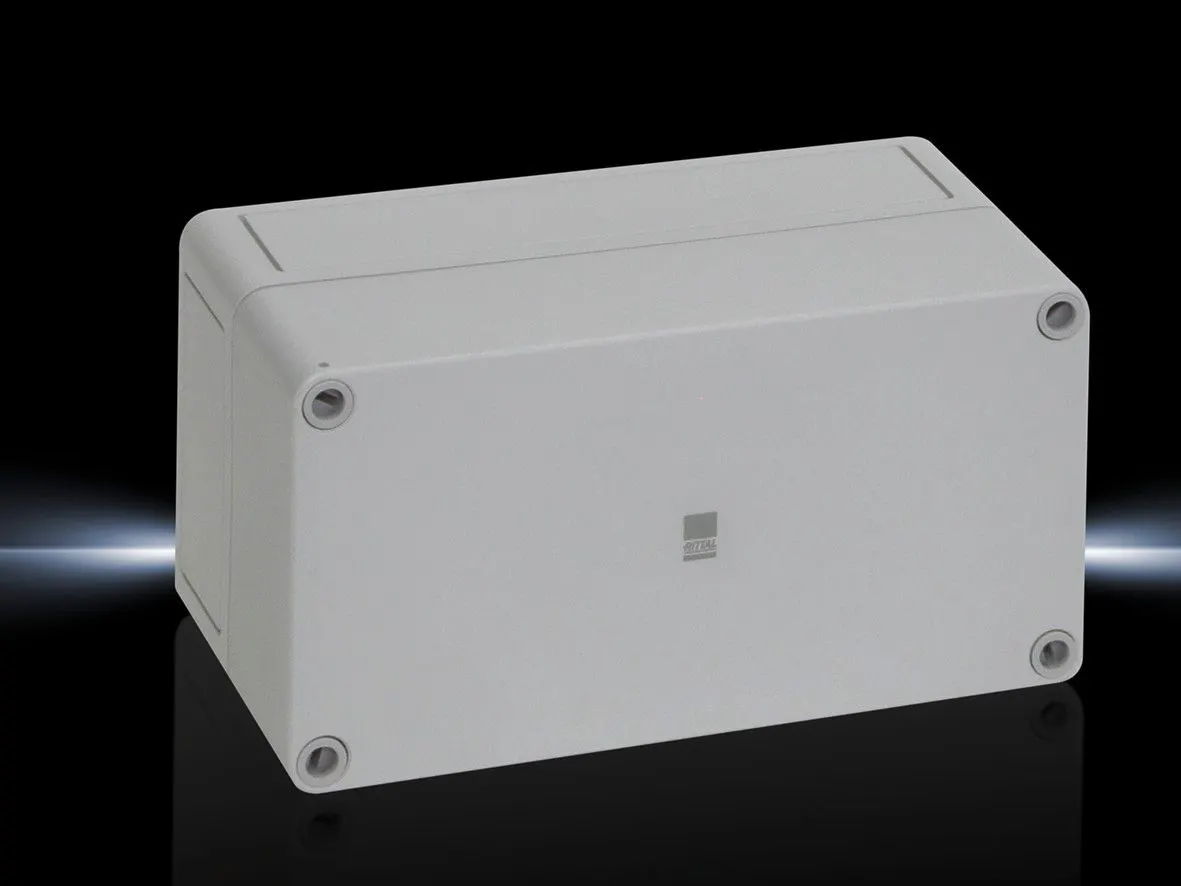

9513000 Rittal: PK Polycarbonate enclosure, WHD: 180x94x81 mm, fibreglass-reinforced polycarbonate, without knockouts, with grey cover
Article number
PK 9513.000
Design
PK enclosure with solid cover
Product description
Use within the ambient temperature range: -35 °C...+80 °C. The specified temperatures may be limited by the installed equipment.
Material
Enclosure: Fibreglass-reinforced polycarbonate | Cover grey: Fibreglass-reinforced polycarbonate, all-round foamed-in PU seal | Cover screws: Polyamide | Insulating bungs: Polyethylene
Colour
RAL 7035
Supply includes
Enclosure with cover | Cover screws | Insulating bungs for wall mounting screws
Protection category NEMA
NEMA 4X
Protection category to IEC 60 529
IP 66
IK Code
IK08
Dimensions
Width: 180 mm | Height: 94 mm | Depth: 81 mm
Operating temperature range
-35 °C...80 °C
Basic material
Polycarbonate
Packs of
2 pc(s).
Weight/pack
0.786 kg
Customs tariff number
94037000
EAN
4028177139459
ETIM 9
EC000261
ECLASS 8.0
27180101
Product description
PK Polycarbonate enclosure, WHD: 180x94x81 mm, fibreglass-reinforced polycarbonate, without knockouts, with grey cover
Feature: Fibreglass-reinforced polycarbonate enclosure and all-round PU seal for the cover. Business Impact: Excellent environmental protection with sustained mechanical integrity in demanding environments. Application: Control panels on factory floors or harsh indoor sites where dust, moisture, and temperature swings are common. Feature: IP66 and NEMA 4X protection with IK08 durability. Business Impact: Superior ingress resistance and impact protection reduce field failures and corrosion-related maintenance costs. Application: Outdoor or semi-exposed indoor installations, perimeter equipment, and diagnostic panels. Feature: Quick-release fasteners on the grey cover. Business Impact: Significantly faster maintenance cycles, enabling tighter uptime windows and reduced labor cost. Application: Routine inspections and fault finding on live panels without lengthy shutdowns. Feature: Temperature range of -35 °C to 80 °C. Business Impact: Reliable operation across broad environmental conditions, minimizing the need for enclosure swaps. Application: Cold starts in unheated facilities and hot production zones. Feature: No knockouts; supplied with cover screws and insulating bungs. Business Impact: Flexible integration with only the needed feed-throughs, simplifying installation and certification. Application: Prepares the enclosure for clean, compliant conduit routing in new builds. Feature: Pack configuration and weight efficiency (2 packs, 0.786 kg per pack). Business Impact: Easy shipping and handling, lower freight costs, and practical on-site material planning. Application: Warehouse procurement and panel assembly workflows. These features collectively support optimized maintenance planning, improved safety, and predictable project budgeting for industrial automation and electrical infrastructure deployments.
Get a Quick Quote for a Rittal 9513000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9513000?
Enquire Now
FAQs
The PK 9513.000 ships with an enclosure, cover, cover screws, and insulating bungs for wall mounting screws. Installation is straightforward: mount to a solid wall, insert the bungs for stable support, and use the included screws to secure the cover. The design allows selective entry by avoiding unnecessary knockouts, simplifying wiring and certification processes.
The enclosure operates from -35 °C to 80 °C and provides IP66 ingress protection with NEMA 4X rating, plus IK08 impact resistance. This combination ensures reliable operation in extreme indoor environments, exposure to dust and moisture, and mechanical protection for mounted electrical equipment.
Yes. With IP66 and NEMA 4X protection, IK08 impact resistance, and a fibreglass-reinforced polycarbonate construction, the enclosure is well-suited for outdoor-adjacent or harsh indoor environments used in manufacturing, utilities, or process automation where environmental exposure and safety are critical.
Included items are the enclosure with a grey cover, cover screws, and insulating bungs for wall mounting screws. You may need conduits, gaskets, or mounting plates depending on the installation and equipment. The absence of knockouts provides flexibility to tailor entry points with your own fittings while maintaining protection ratings.
The quick-release cover enables faster inspections and servicing, reducing downtime. The robust IP66/NEMA 4X protection and IK08 rating safeguard sensitive components, lowering field repair costs. The material and thermal range support reliable operation across varied climates, contributing to longer service life and a lower total cost of ownership for control cabinets and automation panels.
