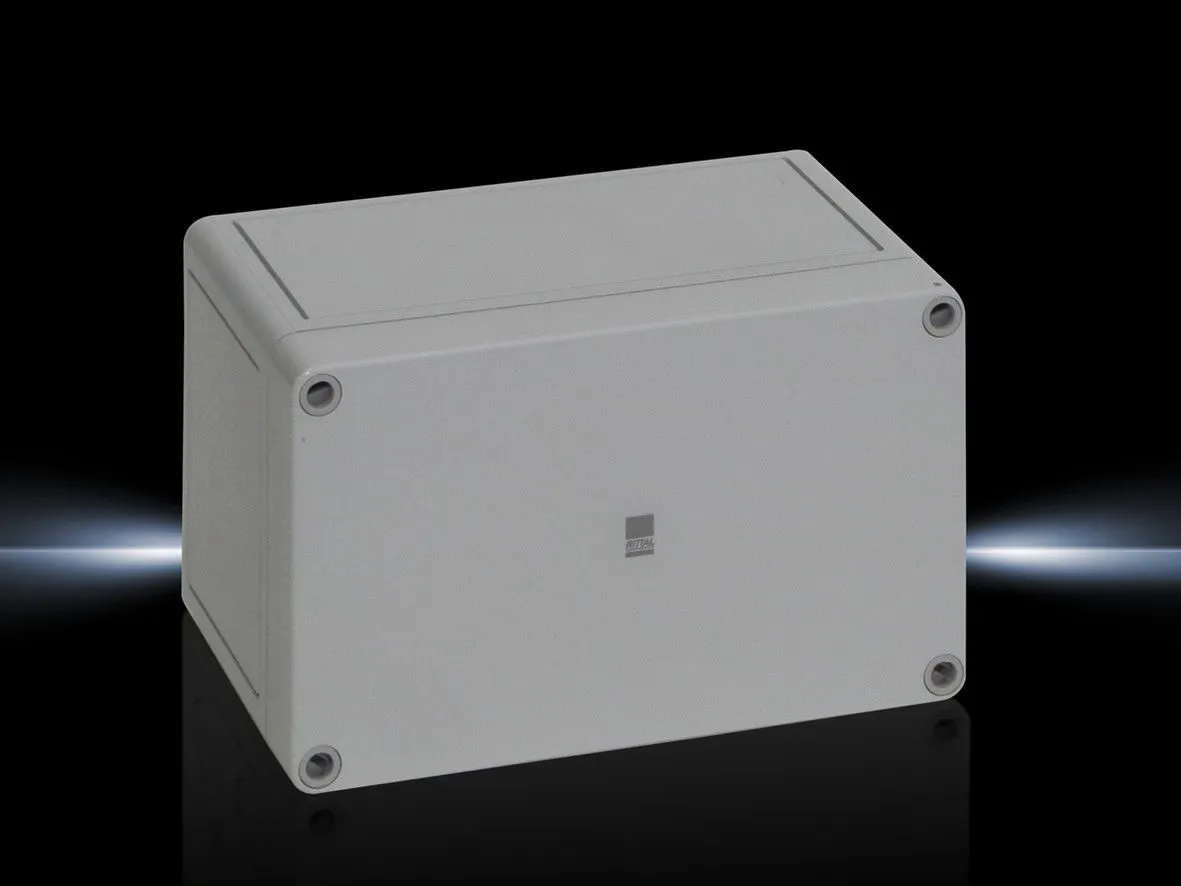

Rittal 9514000 Wall-mounted enclosure - IP66 protection
Part Number: 9514000
Manufacturer
Rittal
Part number
9514000
Alt Part Number
PK 9514.000
Quick Summary
Rittal 9514000 wall-mounted enclosure delivers compact protection for sensitive electronics in harsh environments. For engineers facing tight installation space and frequent maintenance, quick access and proven sealing matter most. This enclosure offers IP66 protection, NEMA 4X suitability, and IK08 robustness to resist moisture, dust, and impact, while the fibreglass-reinforced polycarbonate keeps weight low. In control cabinets and field-deployed systems, it enables fast maintenance with a grey cover and quick-release fasteners, reducing service time and downtime. Designed for OEMs and service teams, it combines reliability, safety, and scalable installation with durable, cost-effective housing.
Product Information
Extended Description
9514000 Rittal: PK Polycarbonate enclosure, WHD: 180x110x90 mm, fibreglass-reinforced polycarbonate, without knockouts, with grey cover
Article number
PK 9514.000
Design
PK enclosure with solid cover
Product description
Use within the ambient temperature range: -35 °C...+80 °C. The specified temperatures may be limited by the installed equipment.
Material
Enclosure: Fibreglass-reinforced polycarbonate | Cover grey: Fibreglass-reinforced polycarbonate, all-round foamed-in PU seal | Cover screws: Polyamide | Insulating bungs: Polyethylene
Colour
RAL 7035
Supply includes
Enclosure with cover | Cover screws | Insulating bungs for wall mounting screws
Protection category NEMA
NEMA 4X
Protection category to IEC 60 529
IP 66
IK Code
IK08
Dimensions
Width: 180 mm | Height: 110 mm | Depth: 90 mm
Operating temperature range
-35 °C...80 °C
Basic material
Polycarbonate
Packs of
2 pc(s).
Weight/pack
0.86 kg
Customs tariff number
94037000
EAN
4028177139497
ETIM 9
EC000261
ECLASS 8.0
27180101
Product description
PK Polycarbonate enclosure, WHD: 180x110x90 mm, fibreglass-reinforced polycarbonate, without knockouts, with grey cover
Feature: Fibreglass-reinforced polycarbonate enclosure with a grey cover and quick-release fasteners. Business Impact: Enables lightweight yet rugged housing, quick access during maintenance, and reliable sealing to minimize downtime. Application: Control panels and field installations where fast service is critical. Result: Reduced maintenance time and safer, easier service. Feature: IP66 protection and NEMA 4X rating with IK08 impact resistance. Business Impact: Provides robust ingress protection against water, dust, and impacts across harsh environments. Application: Outdoor and factory floors with exposure to moisture and debris. Result: Improved uptime and equipment protection. Feature: Operating temperature range -35 to 80 °C. Business Impact: Ensures electronics remain within spec across seasonal and load variations. Application: Environments with wide temperature swings. Result: Extended component life and lower failure rates. Feature: Dimensions 180x110x90 mm, without knockouts, weight 0.86 kg per pack, and supply includes enclosure with cover, cover screws, and insulating bungs. Business Impact: Streamlined installation, flexible cable management, and efficient logistics. Application: Wall-mounted control housings with customizable entry points. Result: Faster deployment and reduced total cost of ownership. Feature: Self-extinguishing material and compliance-ready construction. Business Impact: Enhanced safety and regulatory readiness with safer housing. Application: Electrical infrastructure in industrial settings. Result: Compliance confidence and safer installations.
Get a Quick Quote for a Rittal 9514000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9514000?
Enquire Now
FAQs
Installation requires wall mounting using the supplied insulating bungs for screws, with no knockouts pre-formed to accommodate your cable plan. The enclosure ships as a 2-pack with a grey cover and cover screws, and weighs 0.86 kg per pack, facilitating on-site handling and precise mounting on prepared walls.
It combines IP66 ingress protection, NEMA 4X enclosure rating, and IK08 impact resistance with fibreglass-reinforced polycarbonate construction. This mix delivers reliable dust and water exclusion, corrosion resistance, and strong physical protection for mounted equipment on challenging factory floors and outdoor installations.
Yes. The IP66 and NEMA 4X ratings guarantee protection against wind, rain, and dust in outdoor and exposed indoor locations. The material selection and sealing also support durability in fluctuating temperatures, making it a dependable option for weather-exposed control panels and field devices.
Key maintenance benefits include quick-release fasteners for rapid cover removal, a foamed-in PU seal for reliable sealing, and insulating bungs for easy mounting screw integration. The grey cover and solid construction reduce service time, while the compact dimensions simplify access inside crowded control cabinets.
The enclosure minimizes downtime through fast access and dependable protection, lowering maintenance labor costs. Its durable fibreglass-reinforced polycarbonate body and robust seals extend service life in demanding environments, enabling scalable deployment across multiple machines with fewer component replacements and smoother compliance with industry standards.
