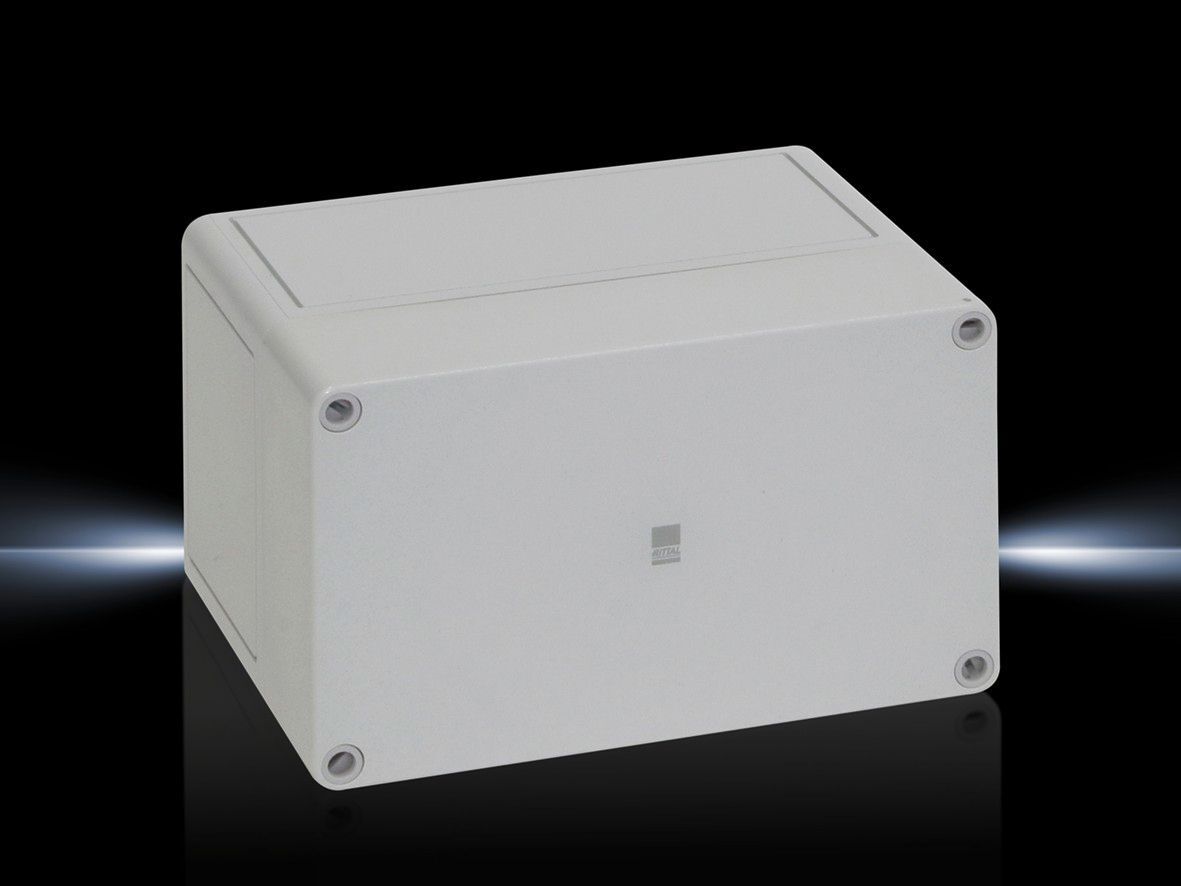

Rittal PK 9515.000 Wall-Mounted Enclosure - IP66 / NEMA 4X
Part Number: 9515000
Manufacturer
Rittal
Part number
9515000
Alt Part Number
PK 9515.000
Quick Summary
Rittal PK 9515.000 is a wall-mounted enclosure designed to protect electrical and automation components in demanding industrial spaces. It helps prevent dust, water ingress, and accidental contact while preserving cabinet footprint in tight installations. The quick-release cover speeds maintenance, reducing downtime and boosting site productivity. With IP66 protection, NEMA 4X compliance, and IK08 impact resistance, it stands up to wash-downs, harsh environments, and rough handling. The fibreglass-reinforced polycarbonate construction offers safety without excessive weight, supporting safer, easier handling on site. This enclosure integrates smoothly with standard Rittal accessories, delivering consistent aesthetics and reliable gasket sealing for long-term, cost-efficient panel deployments.
Product Information
Extended Description
9515000 Rittal: PK Polycarbonate enclosure, WHD: 180x110x111 mm, fibreglass-reinforced polycarbonate, without knockouts, with grey cover
Article number
PK 9515.000
Design
PK enclosure with solid cover
Product description
Use within the ambient temperature range: -35 °C...+80 °C. The specified temperatures may be limited by the installed equipment.
Material
Enclosure: Fibreglass-reinforced polycarbonate | Cover grey: Fibreglass-reinforced polycarbonate, all-round foamed-in PU seal | Cover screws: Polyamide | Insulating bungs: Polyethylene
Colour
RAL 7035
Supply includes
Enclosure with cover | Cover screws | Insulating bungs for wall mounting screws
Protection category NEMA
NEMA 4X
Protection category to IEC 60 529
IP 66
IK Code
IK08
Dimensions
Width: 180 mm | Height: 110 mm | Depth: 111 mm
Operating temperature range
-35 °C...80 °C
Basic material
Polycarbonate
Packs of
2 pc(s).
Weight/pack
1.04 kg
Customs tariff number
94037000
EAN
4028177139534
ETIM 9
EC000261
ECLASS 8.0
27180101
Product description
PK Polycarbonate enclosure, WHD: 180x110x111 mm, fibreglass-reinforced polycarbonate, without knockouts, with grey cover
Feature: Fibreglass-reinforced polycarbonate construction provides high impact resistance with self-extinguishing properties. Business Impact: Enhances safety and longevity of exposed control panels while minimizing risk in industrial zones. Application: Suitable for indoor and outdoor enclosures that require durable, non‑metallic housing. Feature: IP66 and NEMA 4X protection with IK08 rating ensures ingress protection and mechanical robustness. Business Impact: Reduces maintenance frequency and protects critical electronics in wash-downs and dusty environments, lowering downtime. Application: Ideal for process lines, food and beverage, and outdoor equipment housings. Feature: Compact WHD of 180x110x111 mm and a light 1.04 kg per pack, with two per pack. Business Impact: Facilitates space-efficient control panels and easier handling during installation and relocations, cutting install time. Application: Used in compact automation cabinets and machine-ready interfaces. Feature: Operating temperature range of -35 °C to +80 °C extends usability across harsh sites. Business Impact: Enables reliable performance in cold starts and hot process conditions, reducing temperature-related faults. Application: Enclosures near furnaces, outdoor machinery, and refrigerated environments. Feature: Quick-release fasteners and grey cover with foam-in PU seal support rapid maintenance and seal integrity. Business Impact: Shortens service windows and sustains enclosure integrity after access, lowering total cost of ownership. Application: Frequent inspections, sensor replacements, and field commissioning in tight spaces.
Get a Quick Quote for a Rittal 9515000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9515000?
Enquire Now
FAQs
To install PK 9515.000, choose a sturdy wall surface, use the insulating bungs and wall mounting screws provided, and secure the enclosure with the included cover screws. Ensure the gasket is seated correctly for IP66 compliance and verify the internal space accommodates cabling without crimping. This supports quick access during maintenance.
The enclosure achieves IP66 and NEMA 4X protection, IK08 impact resistance, and is made from fibreglass-reinforced polycarbonate with a PU seal. Together, these features resist dust, water ingress, and mechanical shocks, enabling reliable operation in wash-down facilities, outdoor installations, and other demanding settings.
Yes. The PK 9515.000 is designed for compatibility with standard Rittal mounting accessories, including common enclosure mounting hardware and sealing systems. Its compact dimensions (180x110x111 mm) and included insulating bungs ease on-site integration, while maintaining a consistent aesthetic across assemblies.
PK 9515.000 carries IP66 protection and NEMA 4X compliance, along with IK08 impact resistance. These certifications indicate strong ingress protection, resistance to wash-down and corrosion, and mechanical robustness, helping meet industrial safety and reliability requirements in many regions.
The enclosure’s quick-release cover and gasket system reduce maintenance time by enabling rapid access without disassembly. Lightweight fibreglass-reinforced polycarbonate simplifies handling, while durable IP66/NEMA 4X protection lowers repair and downtime costs. Overall, this translates to more efficient servicing and lower long-term ownership costs.
