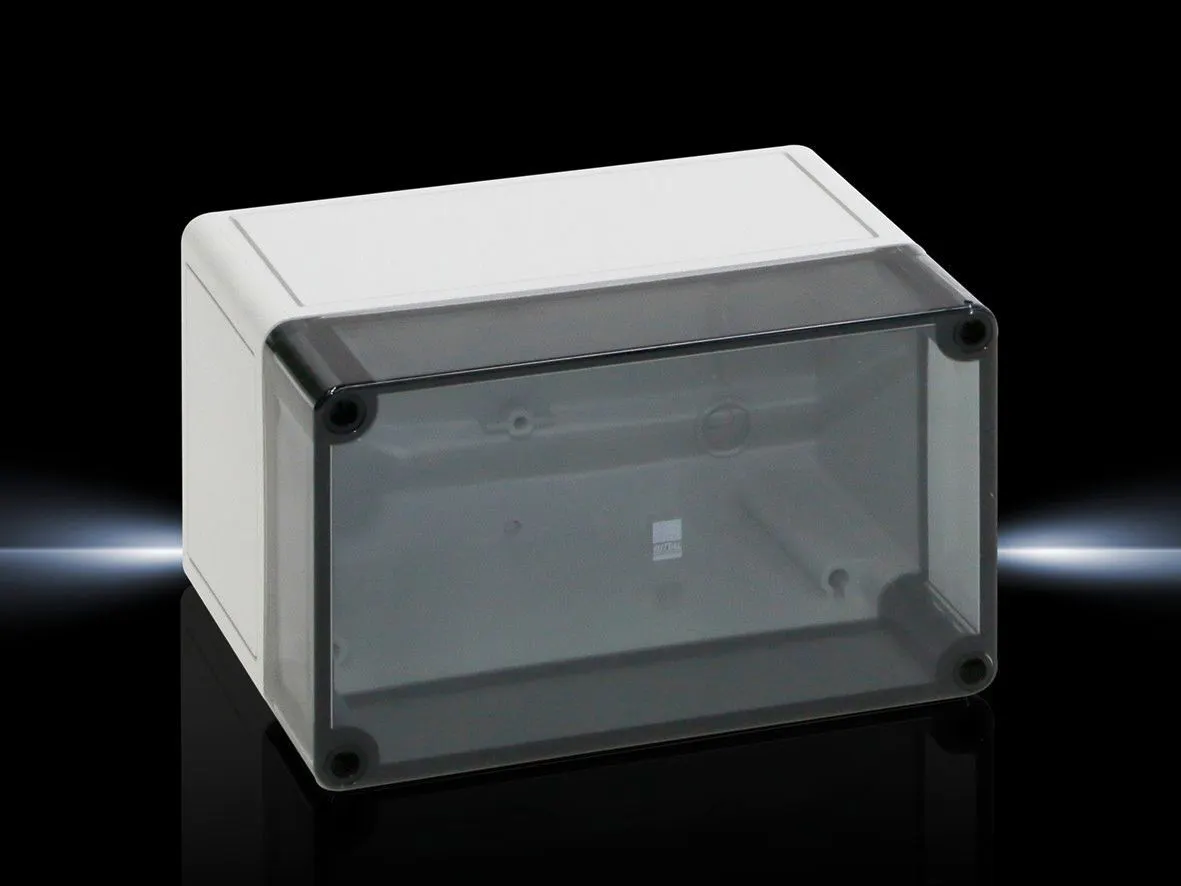

Rittal 9515100 PK Polycarbonate Enclosure - IP66
Part Number: 9515100
Manufacturer
Rittal
Part number
9515100
Alt Part Number
PK 9515.100
Quick Summary
Rittal 9515100 PK Polycarbonate Enclosure protects electrical gear in harsh industrial environments. Maintenance downtime and water ingress are common pain points; this enclosure mitigates both with rugged IP66/NEMA 4X protection. Designed for wall mounting, it supports quick-service maintenance thanks to a transparent cover and quick-release screws. The ambient temperature range of -35 °C to 80 °C makes it suitable for exposed factory floors, outdoor enclosures, and process lines. Its fibreglass-reinforced polycarbonate construction and IK08 impact rating offer long-term durability, while the color RAL 7035 promotes standardization across installations. Using this PK enclosure can reduce installation time and lifecycle costs by simplifying sourcing and maintenance workflows.
Product Information
Extended Description
9515100 Rittal: PK Polycarbonate enclosure, WHD: 180x110x111 mm, fibreglass-reinforced polycarbonate, without knockouts, with transparent cover
Article number
PK 9515.100
Design
PK enclosure with transparent cover
Product description
Use within the ambient temperature range: -35 °C...+80 °C. The specified temperatures may be limited by the installed equipment.
Material
Enclosure: Fibreglass-reinforced polycarbonate | Cover transparent: Polycarbonate, all-round foamed-in PU seal | Cover screws: Polyamide | Insulating bungs: Polyethylene
Colour
RAL 7035
Supply includes
Enclosure with cover | Cover screws | Insulating bungs for wall mounting screws
Protection category NEMA
NEMA 4X
Protection category to IEC 60 529
IP 66
IK Code
IK08
Dimensions
Width: 180 mm | Height: 110 mm | Depth: 111 mm
Operating temperature range
-35 °C...80 °C
Basic material
Polycarbonate
Packs of
2 pc(s).
Weight/pack
1 kg
Customs tariff number
94037000
EAN
4028177139558
ETIM 9
EC000261
ECLASS 8.0
27180101
Product description
PK Polycarbonate enclosure, WHD: 180x110x111 mm, fibreglass-reinforced polycarbonate, without knockouts, with transparent cover
Feature: Fibreglass-reinforced polycarbonate enclosure with IP66, NEMA 4X and IK08 ratings. Business Impact: Delivers robust protection against dust, water, and impacts, reducing unplanned downtime and safeguarding sensitive electronics. Application: Ideal for outdoor cabinets and harsh factory floors where reliability is essential. Feature: Transparent cover and quick-release screws. Business Impact: Speeds inspections and maintenance, cutting service time and lowering labor costs. Application: Frequent terminal-block checks and fieldbus connections in automation panels benefit from fast access. Feature: Wide operating temperature range (-35 °C to 80 °C). Business Impact: Enables safe operation across extreme climates, eliminating the need for separate climate-controlled housings. Application: Suitable for outdoor plants, cold rooms, and hot production areas in process and manufacturing environments. Feature: No knockouts with insulating bungs and included mounting hardware. Business Impact: Simplifies custom cable routing and reduces the need for accessory kits, lowering procurement complexity. Application: Flexible wiring layouts for control panels and sensor networks on walls. Feature: Standardized color and compact dimensions (180x110x111 mm). Business Impact: Facilitates plant-wide standardization, easier inventory planning, and quick integration with other Rittal components. Application: Space-constrained installations on machine walls and control enclosures.
Get a Quick Quote for a Rittal 9515100
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9515100?
Enquire Now
FAQs
Yes. The PK 9515.100 is IP66 and NEMA 4X rated, with IK08 impact protection, making it well-suited for outdoor and harsh industrial environments. Its -35 to 80 C operating range supports long-term reliability on exposed factory walls and process lines, while the polycarbonate construction resists impact and weathering. Wall mounting screws are included to simplify installation.
The enclosure uses fibreglass-reinforced polycarbonate for the body and a transparent polycarbonate cover with a foam PU seal. It carries IP66 protection and NEMA 4X certification, IK08 impact resistance, and operates from -35 °C to 80 °C. The unit is designed to endure demanding environments while providing clear visibility of installed components.
Yes, the PK 9515.100 is supplied without knockouts. It includes insulating bungs for wall mounting screws, cover screws, and the enclosure with cover, enabling straightforward installation. This setup supports flexible cable routing and reduces the need for additional accessory kits during deployment.
The enclosure supports -35 °C to 80 °C, making it suitable for a wide range of control gear and environment conditions. Its fibreglass-reinforced polycarbonate construction and IP66/NEMA 4X protection protect mounted controllers, sensors, and terminal blocks from dust, water ingress, and mechanical impacts, ensuring reliable control panel operation in manufacturing and process settings.
Quick-release screws enable faster lid access, reducing inspection and service times and lowering labor costs. When combined with a durable IP66/NEMA 4X enclosure and standardization features like RAL 7035 color, this translates to shorter downtime, easier spare-parts management, and improved total cost of ownership over the equipment lifecycle.
