Rittal PK 9516.000 Wall-Mounted Enclosure - IP66/NEMA 4X
Part Number: 9516000
Manufacturer
Rittal
Part number
9516000
Alt Part Number
PK 9516.000
Quick Summary

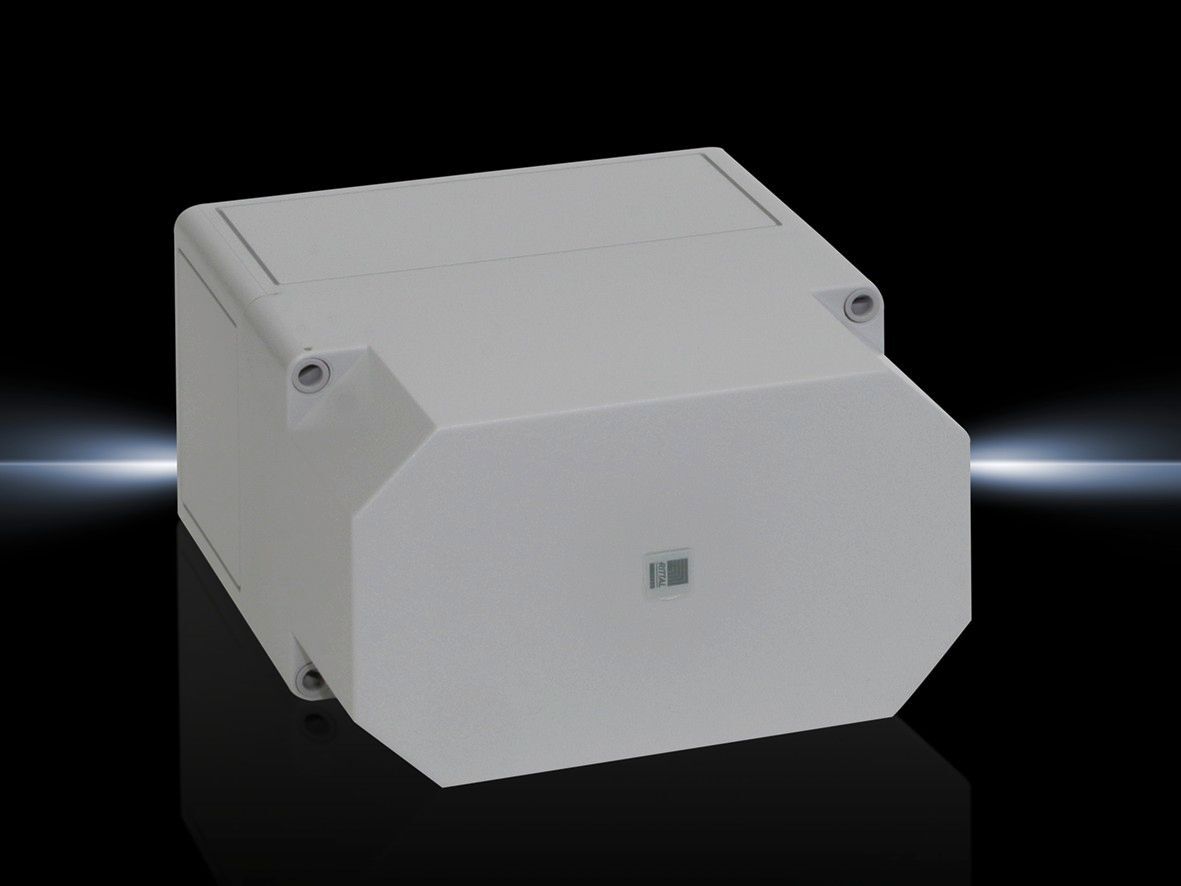

Rittal PK 9516.000 wall-mounted enclosure protects control electronics in rugged industrial environments. When space is limited, quick maintenance and reliable protection are essential; this compact unit keeps live components safe while simplifying servicing. The IP66 and NEMA 4X ratings, along with IK08 impact resistance, ensure resilience in wash-down areas and exposed installations. The wide operating temperature range of -35 °C to 80 °C supports equipment in unconditioned spaces, while the fibreglass-reinforced polycarbonate body delivers long service life. This enclosure also benefits from a grey cover and quick-release fasteners, making it a practical addition to automation panels and control cabinets.
Product Information
Extended Description
9516000 Rittal: PK Polycarbonate enclosure, WHD: 180x110x165 mm, fibreglass-reinforced polycarbonate, without knockouts, with grey cover
Article number
PK 9516.000
Design
PK enclosure with solid cover
Product description
Use within the ambient temperature range: -35 °C...+80 °C. The specified temperatures may be limited by the installed equipment.
Material
Enclosure: Fibreglass-reinforced polycarbonate | Cover grey: Fibreglass-reinforced polycarbonate, all-round foamed-in PU seal | Cover screws: Polyamide | Insulating bungs: Polyethylene
Colour
RAL 7035
Supply includes
Enclosure with cover | Cover screws | Insulating bungs for wall mounting screws
Protection category NEMA
NEMA 4X
Protection category to IEC 60 529
IP 66
IK Code
IK08
Dimensions
Width: 180 mm | Height: 110 mm | Depth: 165 mm
Operating temperature range
-35 °C...80 °C
Basic material
Polycarbonate
Packs of
2 pc(s).
Weight/pack
1.37 kg
Customs tariff number
94037000
EAN
4028177139572
ETIM 9
EC000261
ECLASS 8.0
27180101
Product description
PK Polycarbonate enclosure, WHD: 180x110x165 mm, fibreglass-reinforced polycarbonate, without knockouts, with grey cover
Feature fibreglass-reinforced polycarbonate enclosure with grey cover and a full PU seal. Benefit delivers high impact resistance and chemical resilience while maintaining electrical safety; reduces maintenance costs by extending service intervals. Application ideal for rugged automation panels in manufacturing lines where space is at a premium. Feature IP66 and NEMA 4X protection. Benefit keeps dust, water and corrosion at bay, ensuring reliable operation in outdoor or wash-down environments. Application suitable for outdoor cabinets and exposed control housings. Feature IK08 impact rating. Benefit improves resistance to mechanical shocks typical in busy plants. Application on factory floors with equipment handling. Feature dimensions WHD 180x110x165 mm and a knockout-free design. Benefit offers a compact footprint with tidy cabling and sealed interiors; Application in tight panel spaces. Feature quick-release cover screws. Benefit speeds routine maintenance and commissioning; Application in frequent inspection regimes. Feature color RAL 7035 and weight 1.37 kg per pack (2 pcs). Benefit aids visual management and reduces handling effort; Application where multiple units are used for modular assemblies.
Get a Quick Quote for a Rittal 9516000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9516000?
Enquire Now
FAQs
PK 9516.000 is designed for straightforward wall mounting with included insulating bungs and cover screws. It ships as an enclosure with a grey cover and is supplied without knockouts, allowing clean, sealed wiring channels. For easy integration, ensure compatible wall mounting screws and seals are used, and align the enclosure to maintain IP66 integrity during installation.
Yes. The enclosure offers IP66 protection and NEMA 4X rating, which withstands dust, water jets, and harsh wash-down conditions. The fibreglass-reinforced polycarbonate construction and IK08 impact resistance further enhance durability in outdoor or industrial areas where exposure to moisture and physical impact is common.
The enclosure is made of fibreglass-reinforced polycarbonate with a grey polycarbonate cover and PU seal. It operates from -35 °C to 80 °C, making it suitable for unconditioned or extreme environments. The design emphasizes safety and resilience, including self-extinguishing material for added safety in electrical installations.
The PK 9516.000 uses quick-release fasteners for the cover, enabling rapid access to mounted components. This reduces downtime during inspections, commissioning, and upgrades, and helps maintain continuity in production. The design also preserves enclosure integrity when closed, ensuring consistent protection between service intervals.
For compliance, reference IP66 protection and NEMA 4X rating, along with IK08 impact resistance. The product also aligns with ETIM EC000261 and ECLASS 27180101 classifications, supports a broad operating range, and uses materials suitable for harsh environments. These certifications support safe integration into industrial automation projects and panel builds.
