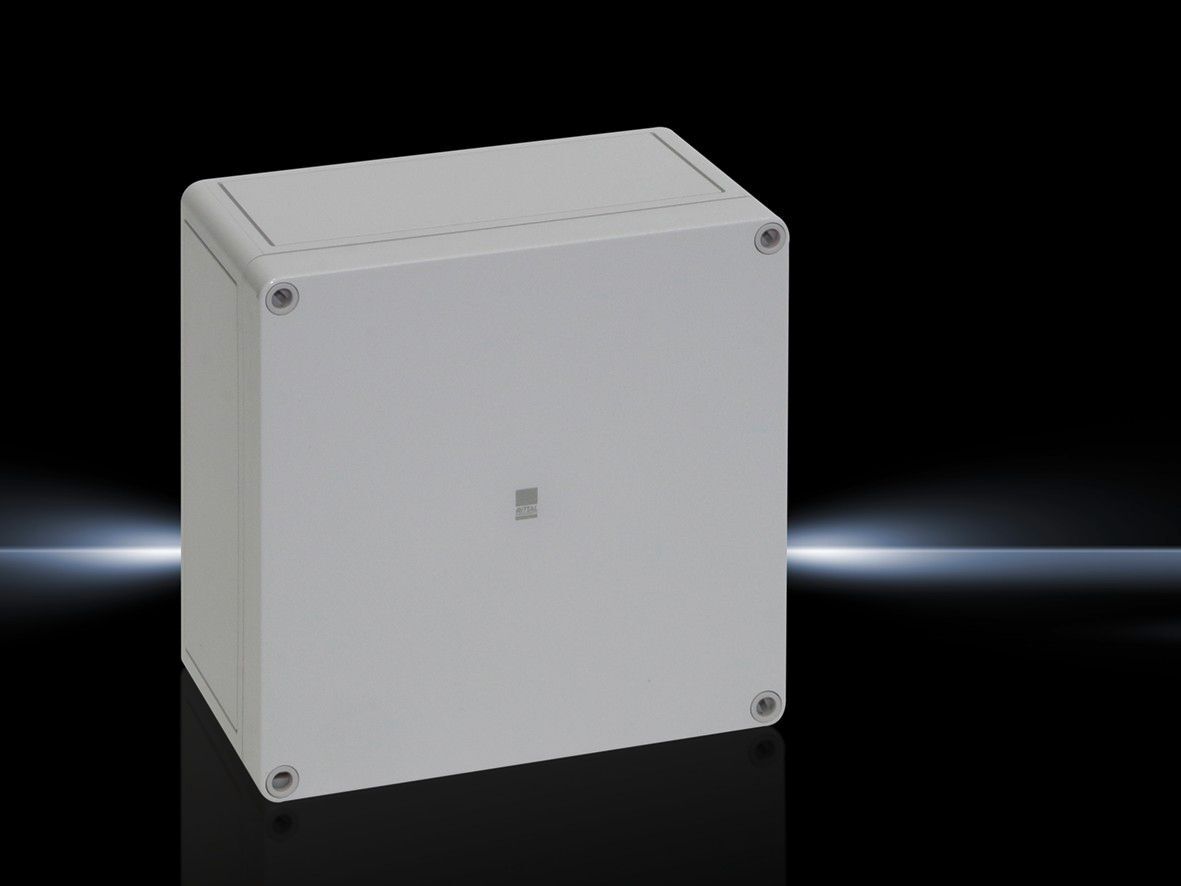

Rittal 9517000 Wall-Mounted Enclosure - IP66
Part Number: 9517000
Manufacturer
Rittal
Part number
9517000
Alt Part Number
PK 9517.000
Quick Summary
Rittal 9517000 is a wall-mounted enclosure that protects electrical and control gear in harsh indoor environments. For maintenance teams, downtime and equipment damage from moisture, dust, or unintended access can derail projects and inflate costs. Its IP66 protection, NEMA 4X rating, and IK08 impact resistance help meet demanding sites while the -35 °C to 80 °C operating range supports broad ambient conditions. Designed for fast service and secure mounting, it suits retrofit and new-build installations, delivering reliable protection with minimal maintenance effort and long-term cost savings.
Product Information
Extended Description
9517000 Rittal: PK Polycarbonate enclosure, WHD: 182x180x90 mm, fibreglass-reinforced polycarbonate, without knockouts, with grey cover
Article number
PK 9517.000
Design
PK enclosure with solid cover
Product description
Use within the ambient temperature range: -35 °C...+80 °C. The specified temperatures may be limited by the installed equipment.
Material
Enclosure: Fibreglass-reinforced polycarbonate | Cover grey: Fibreglass-reinforced polycarbonate, all-round foamed-in PU seal | Cover screws: Polyamide | Insulating bungs: Polyethylene
Colour
RAL 7035
Supply includes
Enclosure with cover | Cover screws | Insulating bungs for wall mounting screws
Protection category NEMA
NEMA 4X
Protection category to IEC 60 529
IP 66
IK Code
IK08
Dimensions
Width: 182 mm | Height: 180 mm | Depth: 90 mm
Operating temperature range
-35 °C...80 °C
Basic material
Polycarbonate
Packs of
1 pc(s).
Weight/pack
0.64 kg
Customs tariff number
94037000
EAN
4028177139619
ETIM 9
EC000261
ECLASS 8.0
27180101
Product description
PK Polycarbonate enclosure, WHD: 182x180x90 mm, fibreglass-reinforced polycarbonate, without knockouts, with grey cover
Feature: Fibreglass-reinforced polycarbonate enclosure and a grey cover with a robust PU seal. Business Impact: High durability, chemical resistance, and ingress protection translate to longer service life in challenging environments, reducing replacement and upkeep costs. Application: Industrial automation panels and outdoor-adjacent indoor cabinets in manufacturing lines. Feature: IP66 and NEMA 4X protection plus IK08 impact resistance. Business Impact: Compliance with harsh-duty standards and enhanced protection for critical electronics, lowering risk of unplanned downtime. Application: Food & beverage, packaging, and automotive assembly lines where washdown and impact resistance are essential. Feature: Wall-mount design with included insulating bungs and cover screws; without knockouts. Business Impact: Simplified mounting and clean interior layouts for rapid wiring and maintenance, reducing installation time. Application: Control cabinets and junctions in machine centers. Feature: Temperature range -35 °C to 80 °C and self-extinguishing material. Business Impact: Safe operation in extreme environments, improving personnel safety and fire resistance. Application: Harsh industrial zones, robotics cells, and energy monitoring panels. Feature: Dimensions 182 × 180 × 90 mm and weight 0.64 kg per pack; supply includes cover screws and insulating bungs. Business Impact: Compact, lightweight, and turnkey installation with predictable handling and shipping costs. Application: Space-constrained panels and retrofit projects where fast procurement matters.
Get a Quick Quote for a Rittal 9517000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9517000?
Enquire Now
FAQs
Choose a suitable wall surface, use the supplied insulating bungs for mounting screws, and plan for external cabling since the enclosure is without knockouts. The 182x180x90 mm footprint and 0.64 kg weight per unit support straightforward installation, while the included cover screws speed secure assembly.
The PK 9517.000 provides IP66 protection for water and dust ingress resistance, and NEMA 4X protection for wet and corrosive environments, plus IK08 impact resistance to withstand mechanical shocks in industrial settings.
Yes. It operates from -35 °C to 80 °C, is made of fibreglass-reinforced polycarbonate with a self-extinguishing profile, and offers robust sealing and protection ratings, making it suitable for demanding manufacturing floors and packaging lines.
The enclosure is supplied without knockouts, which minimizes unsealed openings; plan external glands or field modifications as needed. The included cover screws and insulating bungs aid secure mounting, while the interior remains accessible for planned equipment installation inside the 182x180x90 mm space.
The quick-release cover enables faster servicing, the self-extinguishing material enhances safety, and the IP66/NEMA 4X ratings minimize ingress risks. Together with the IK08 rating and wide operating range, this enclosure supports higher uptime, lower maintenance costs, and safer, compliant installations.
