Rittal 9517100 Wall-mounted Enclosure for Controls - IP66
Part Number: 9517100
Manufacturer
Rittal
Part number
9517100
Alt Part Number
PK 9517.100
Quick Summary
Rittal 9517100 wall-mounted enclosure protects control electronics in harsh industrial environments. Maintenance delays are common with bulky housings; this unit speeds service thanks to a quick-release cover and a transparent lid. With IP66 and NEMA 4X ratings plus IK08 impact resistance, it withstands dust, water spray, and physical shocks. The fibreglass-reinforced polycarbonate body delivers temperature resilience and UV stability, helping ensure long service life in demanding plants. Installing on a wall minimizes footprint while providing safe wiring access. For engineers and procurement teams, the PK 9517.100 offers clear documentation, standard mounting compatibility, and a reliable, future-proof housing for controls and sensors.
Product Information
Extended Description

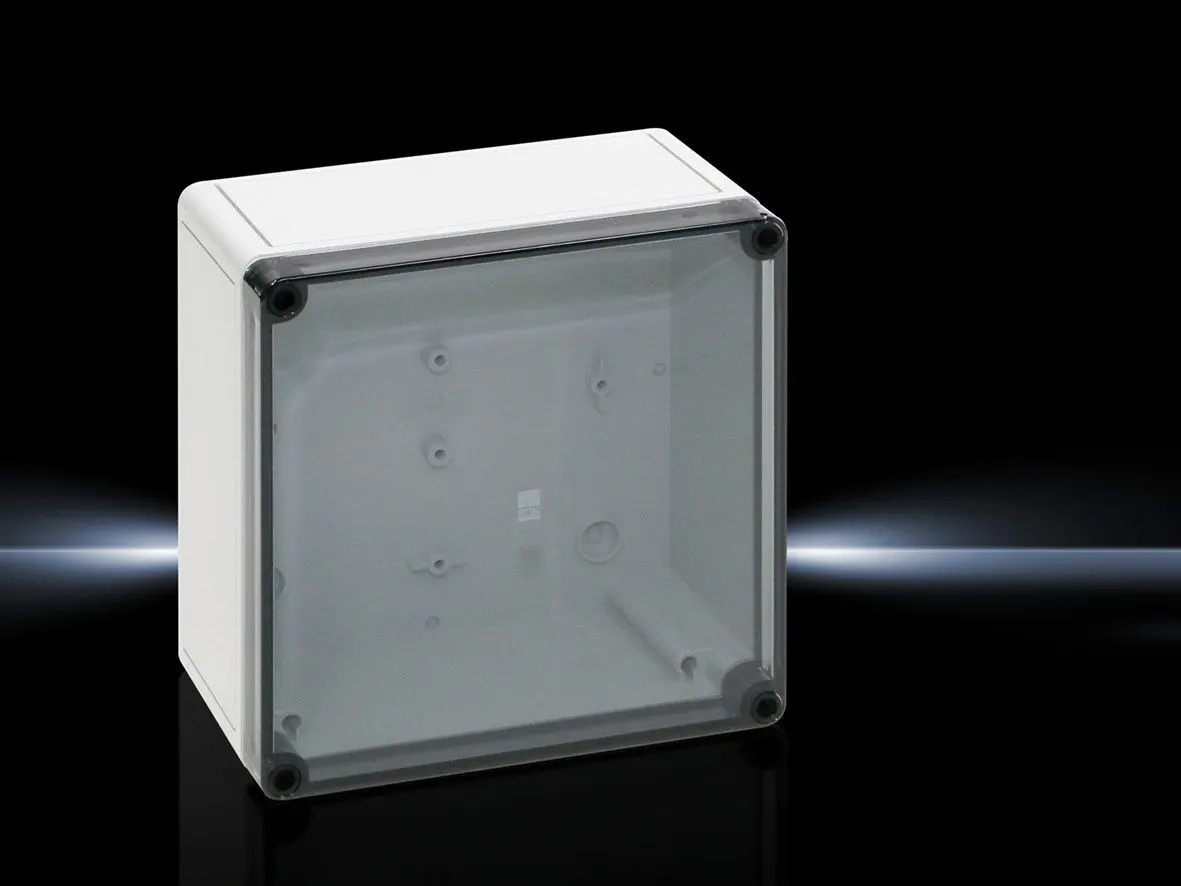

9517100 Rittal: PK Polycarbonate enclosure, WHD: 182x180x90 mm, fibreglass-reinforced polycarbonate, without knockouts, with transparent cover
Article number
PK 9517.100
Design
PK enclosure with transparent cover
Product description
Use within the ambient temperature range: -35 °C...+80 °C. The specified temperatures may be limited by the installed equipment.
Material
Enclosure: Fibreglass-reinforced polycarbonate | Cover transparent: Polycarbonate, all-round foamed-in PU seal | Cover screws: Polyamide | Insulating bungs: Polyethylene
Colour
RAL 7035
Supply includes
Enclosure with cover | Cover screws | Insulating bungs for wall mounting screws
Protection category NEMA
NEMA 4X
Protection category to IEC 60 529
IP 66
IK Code
IK08
Dimensions
Width: 182 mm | Height: 180 mm | Depth: 90 mm
Operating temperature range
-35 °C...80 °C
Basic material
Polycarbonate
Packs of
1 pc(s).
Weight/pack
0.635 kg
Customs tariff number
94037000
EAN
4028177139633
ETIM 9
EC000261
ECLASS 8.0
27180101
Product description
PK Polycarbonate enclosure, WHD: 182x180x90 mm, fibreglass-reinforced polycarbonate, without knockouts, with transparent cover
Fibreglass-reinforced polycarbonate enclosure provides high-impact resistance with lighter weight, simplifying installation and service while protecting sensitive electronics in demanding environments. The IP66 and NEMA 4X ratings deliver robust ingress protection against dust, water, and harsh weather, reducing field failures and extending device life in outdoor or damp indoor settings. Quick-release cover and a transparent lid enable rapid inspections and maintenance without heavy tooling, shortening downtime and improving plant availability. The 182x180x90 mm footprint fits compact control cabinets and wall-mounted layouts, while included insulating bungs and cover screws streamline mounting and service. With a PU-sealed gasket and all-round sealing, the unit maintains performance across -35 to 80 °C, even in UV-exposed locations. Color coded in RAL 7035 for visibility aids safety and compliance. The enclosure ships 1 piece per pack with standard mounting hardware, ensuring consistent sourcing and easier procurement.
Get a Quick Quote for a Rittal 9517100
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9517100?
Enquire Now
FAQs
Begin by selecting a stable wall surface and confirm mounting points align with the enclosure’s 182x180 mm footprint. Use the included wall mounting screws and insulating bungs, then attach the enclosure securely. The transparent cover and quick-release screws enable fast access during commissioning, while the absence of knockouts ensures clean, field-friendly wiring when adding or rearranging components.
The enclosure offers IP66 protection and NEMA 4X rating with IK08 impact resistance. It operates effectively from -35 °C to 80 °C, making it suitable for variable climate conditions and temperature shocks commonly seen in automation and process control environments.
Yes. The IP66/NEMA 4X protection ratings, UV-stable polycarbonate, and gasket sealing make it appropriate for outdoor or semi-exposed environments. Its robust construction shields sensitive electronics from dust, moisture, and mechanical impacts, while the translucent cover supports quick visual inspections without compromising safety.
The PK 9517.100 aligns with IP66 and NEMA 4X protections, IK08 impact rating, and standard material specifications. It also carries ETIM 9 EC000261, ECLASS 8.0 27180101, and an EAN of 4028177139633, which simplifies procurement, cataloging, and cross-compatibility with regulatory and industry data standards.
The quick-release cover enables faster access to internal components, reducing maintenance downtime and site labor costs. Transparent viewing of internal components facilitates early fault detection, while the secure PU-sealed gasket maintains protection levels. Over time, these features contribute to higher uptime, lower replacement costs, and improved overall equipment effectiveness (OEE) for automation projects.
