Rittal Wall-mounted Enclosure PK 9518.000 - IP66
Part Number: 9518000
Manufacturer
Rittal
Part number
9518000
Alt Part Number
PK 9518.000
Quick Summary
Rittal Wall-mounted Enclosure PK 9518.000 protects electrical controls in harsh environments by housing sensitive electronics in a compact, IP66-rated enclosure. In maintenance-heavy environments, quick access and reliable seals are critical to minimize downtime. The unit delivers NEMA 4X and IEC IP66 protection, with fibreglass-reinforced polycarbonate construction and self-extinguishing material for safety. Designed for wall mounting in industrial settings, it combines rugged durability with straightforward installation, supporting quick-release fasteners for fast maintenance. By choosing this enclosure, engineers can reduce service interruptions while ensuring equipment integrity and compliance with common industrial standards for enclosure systems. The product also aligns with cost-efficient containment and simple integration with existing control gear.
Product Information
Extended Description

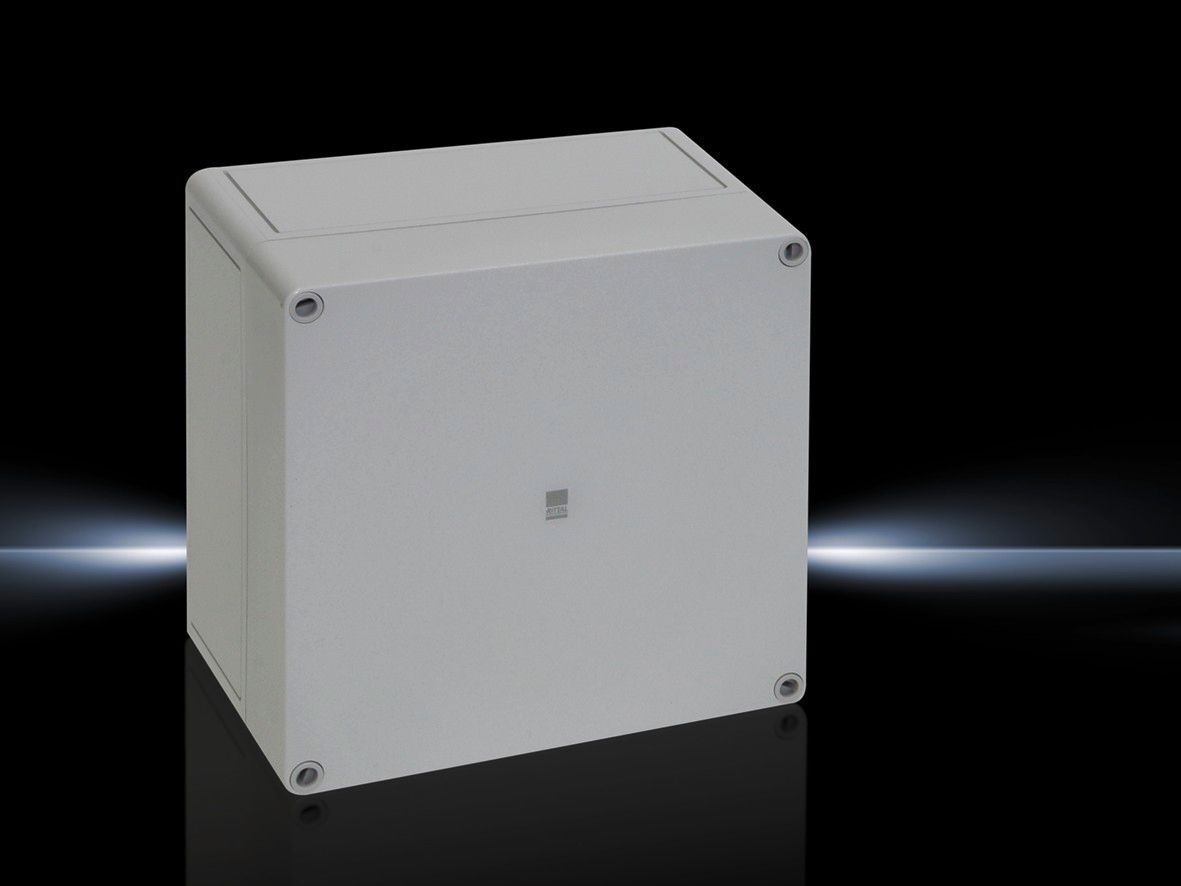

9518000 Rittal: PK Polycarbonate enclosure, WHD: 182x180x111 mm, fibreglass-reinforced polycarbonate, without knockouts, with grey cover
Article number
PK 9518.000
Design
PK enclosure with solid cover
Product description
Use within the ambient temperature range: -35 °C...+80 °C. The specified temperatures may be limited by the installed equipment.
Material
Enclosure: Fibreglass-reinforced polycarbonate | Cover grey: Fibreglass-reinforced polycarbonate, all-round foamed-in PU seal | Cover screws: Polyamide | Insulating bungs: Polyethylene
Colour
RAL 7035
Supply includes
Enclosure with cover | Cover screws | Insulating bungs for wall mounting screws
Protection category NEMA
NEMA 4X
Protection category to IEC 60 529
IP 66
IK Code
IK08
Dimensions
Width: 182 mm | Height: 180 mm | Depth: 111 mm
Operating temperature range
-35 °C...80 °C
Basic material
Polycarbonate
Packs of
1 pc(s).
Weight/pack
0.76 kg
Customs tariff number
94037000
EAN
4028177139657
ETIM 9
EC000261
ECLASS 8.0
27180101
Product description
PK Polycarbonate enclosure, WHD: 182x180x111 mm, fibreglass-reinforced polycarbonate, without knockouts, with grey cover
Feature IP66 and NEMA 4X protection → Business Impact High ingress protection reduces weather, dust, and washdown risks, lowering field failures; Application Harsh industrial environments, outdoor sites. Feature Quick-release cover screws → Business Impact Speeds maintenance and reduces downtime; Application Routine parameter changes or wiring revisions in machine cabinets. Feature Fibreglass-reinforced polycarbonate material → Business Impact Excellent impact resistance and flame retardance; Application Chemical plants, food processing, or wash-down environments. Feature Without knockouts with PU seal on grey cover → Business Impact Flexible internal layouts and tight seals; Application Custom control panel configurations without unnecessary cost. Feature Operating range -35 °C to +80 °C → Business Impact Wide ambient tolerance lowers climate-control requirements; Application Cold storage, high-heat production lines. Feature Wall-mount design and included insulating bungs → Business Impact Simple, fast installation with minimal mounting effort; Application New builds or retrofits in factory automation. Feature Weight 0.76 kg per pack and WHD 182x180x111 mm → Business Impact Compact footprint simplifies cabinet planning; Application Small control panels and space-constrained enclosures.
Get a Quick Quote for a Rittal 9518000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9518000?
Enquire Now
FAQs
Yes. PK 9518.000 offers IP66 and NEMA 4X protection, a fibreglass-reinforced polycarbonate body, and a grey cover with a full PU seal, making it suitable for outdoor and exposed industrial sites while maintaining safe internal conditions and long service life.
-35 °C to +80 °C. This wide range supports installations in cold rooms, hot production areas, and mixed climates, though installed equipment may further define usable limits.
IP66 and NEMA 4X provide robust protection against dust, water jets, and corrosion. This reduces ingress-related faults, lowers downtime, and ensures safer maintenance access, particularly when used with quick-release fasteners for rapid opening and re-sealing.
Yes, it is designed for wall mounting. It is supplied with the enclosure and cover screws, plus insulating bungs for wall mounting screws, enabling straightforward mounting and wiring while preserving enclosure integrity.
The enclosure has WHD 182x180x111 mm and weighs 0.76 kg per pack. These compact dimensions and light weight simplify cabinet layout, shipping, and on-site handling for panel builders.
