Rittal PK 9518.100 Wall-mounted Enclosure - IP66
Part Number: 9518100
Manufacturer
Rittal
Part number
9518100
Alt Part Number
PK 9518.100
Quick Summary
Rittal PK 9518.100 wall-mounted enclosure protects sensitive electronics in harsh industrial environments. Maintenance downtime and moisture ingress are costly, so engineers need a compact, robust housing that stays secure and easy to service. This enclosure carries IP66 and NEMA 4X ratings, IK08 impact resistance, and a wide -35 °C to 80 °C operating range, ensuring reliable performance across demanding sites. Its fibreglass-reinforced polycarbonate body, transparent cover, and quick-release screws streamline maintenance, while compatibility with standard mounting and sealing solutions supports fast, compliant installations. For control panels, field deployments, and OEM panel-builds, PK 9518.100 delivers safety, visibility, and long service life.
Product Information
Extended Description

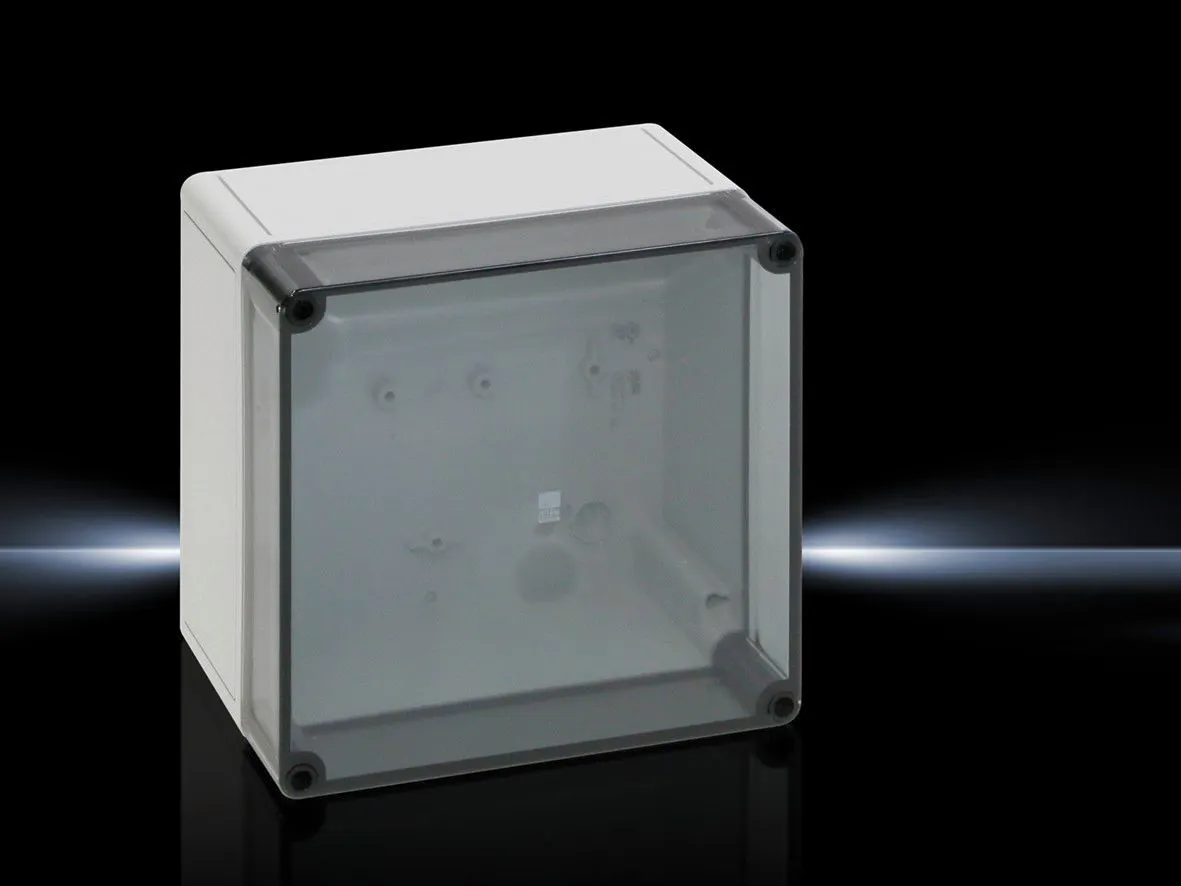

9518100 Rittal: PK Polycarbonate enclosure, WHD: 182x180x111 mm, fibreglass-reinforced polycarbonate, without knockouts, with transparent cover
Article number
PK 9518.100
Design
PK enclosure with transparent cover
Product description
Use within the ambient temperature range: -35 °C...+80 °C. The specified temperatures may be limited by the installed equipment.
Material
Enclosure: Fibreglass-reinforced polycarbonate | Cover transparent: Polycarbonate, all-round foamed-in PU seal | Cover screws: Polyamide | Insulating bungs: Polyethylene
Colour
RAL 7035
Supply includes
Enclosure with cover | Cover screws | Insulating bungs for wall mounting screws
Protection category NEMA
NEMA 4X
Protection category to IEC 60 529
IP 66
IK Code
IK08
Dimensions
Width: 182 mm | Height: 180 mm | Depth: 111 mm
Operating temperature range
-35 °C...80 °C
Basic material
Polycarbonate
Packs of
1 pc(s).
Weight/pack
0.72 kg
Customs tariff number
94037000
EAN
4028177139671
ETIM 9
EC000261
ECLASS 8.0
27180101
Product description
PK Polycarbonate enclosure, WHD: 182x180x111 mm, fibreglass-reinforced polycarbonate, without knockouts, with transparent cover
Fibreglass-reinforced polycarbonate construction provides rugged durability and UV resistance, reducing replacement costs and extending service life in outdoor or dusty environments. This translates to fewer maintenance cycles and lower total cost of ownership for deployed control panels and instrumentation. IP66 and NEMA 4X protection shield internal electronics from dust, water ingress, and corrosion, enabling reliable operation in washdown areas or exposed locations while meeting industrial compliance. IK08 impact resistance guards against accidental impacts, protecting mounted components in harsh plant floors or outdoor installations. The transparent cover with a foam-in PU seal enables quick visual inspection without exposing contents to the elements, decreasing downtime during routine checks. Quick-release cover screws speed maintenance, cutting labor time and facilitating hot-swapping of components. The wide operating temperature range of -35 °C to 80 °C supports installations across diverse climates, reducing the need for different enclosure variants. Supplying includes the enclosure with cover, cover screws, and insulating bungs for wall mounting screws, simplifying on-site setup and ensuring a secure, compliant seal from day one. The lightweight, easy-to-handle design improves installation efficiency for panel builders and integrators, while the standard mounting footprint supports compatibility with a broad range of accessories and internal fittings. Overall, PK 9518.100 offers a cost-effective, future-proof solution for rugged industrial control cabinets and process instrumentation.
Get a Quick Quote for a Rittal 9518100
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9518100?
Enquire Now
FAQs
PK 9518.100 ships with an enclosure, cover screws, and insulating bungs for wall mounting screws. Mount the enclosure to a wall using the supplied screws, install the insulating bungs, and attach the transparent cover with the included fasteners. The design features no knockouts, so plan external entry points carefully and seal with the PU gasket to maintain IP66 protection.
The enclosure delivers IP66 protection and NEMA 4X rating for exterior usability, IK08 impact resistance for mechanical robustness, and a broad operating range from -35 °C to 80 °C. These certifications support use in washdown areas, dusty environments, and controlled outdoor installations while maintaining safe operation and compliance with common industrial standards.
Yes. The IP66 and NEMA 4X ratings, together with IK08 impact resistance and self-extinguishing polycarbonate, make PK 9518.100 suitable for outdoor and harsh indoor environments. The enclosure protects electrical and electronic equipment from dust, water jets, and physical impacts, while maintaining safe operation across extreme temperatures.
The quick-release cover screws enable rapid access to internal components without lengthy tool workflows. This reduces downtime during inspections, tests, or component replacements, supporting faster corrective and preventive maintenance. In practice, technicians can service equipment more efficiently while preserving the integrity of seals and the enclosure’s IP66/NEMA 4X protection.
Ideal for control panels, field instrumentation, and process equipment enclosures in harsh environments. It supports outdoor or washdown areas, process automation cabinets, and OEM panel builds. The transparent cover aids visual monitoring, while the robust material and seals ensure long service life, making it a reliable choice for rugged industrial installations.
