Rittal PK 9520.100 Wall-mounted Enclosure - IP66
Part Number: 9520100
Manufacturer
Rittal
Part number
9520100
Alt Part Number
PK 9520.100
Quick Summary
Rittal PK 9520.100 wall-mounted polycarbonate enclosure protects electrical components in harsh environments and fits compact control panels. This design reduces downtime by enabling rapid access through quick-release fasteners for maintenance. IP66 ingress protection, NEMA 4X versatility, and IK08 impact resistance ensure reliability across indoor and outdoor installations. The enclosure also offers a broad operating temperature range and a transparent cover for visual inspections, delivering robust protection with lightweight, easy-to-install versatility for industrial automation applications.
Product Information
Extended Description

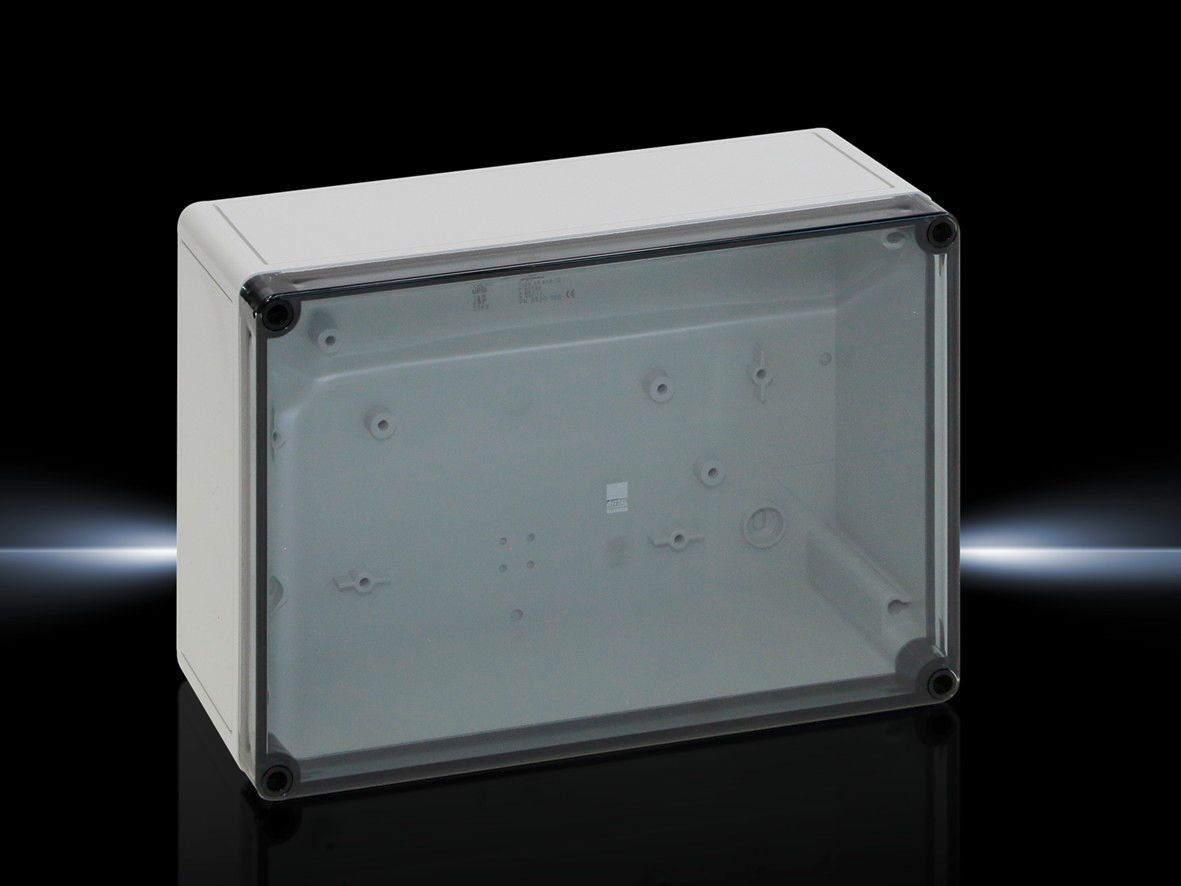

9520100 Rittal: PK Polycarbonate enclosure, WHD: 254x180x90 mm, fibreglass-reinforced polycarbonate, without knockouts, with transparent cover
Article number
PK 9520.100
Design
PK enclosure with transparent cover
Product description
Use within the ambient temperature range: -35 °C...+80 °C. The specified temperatures may be limited by the installed equipment.
Material
Enclosure: Fibreglass-reinforced polycarbonate | Cover transparent: Polycarbonate, all-round foamed-in PU seal | Cover screws: Polyamide | Insulating bungs: Polyethylene
Colour
RAL 7035
Supply includes
Enclosure with cover | Cover screws | Insulating bungs for wall mounting screws
Protection category NEMA
NEMA 4X
Protection category to IEC 60 529
IP 66
IK Code
IK08
Dimensions
Width: 254 mm | Height: 180 mm | Depth: 90 mm
Operating temperature range
-35 °C...80 °C
Basic material
Polycarbonate
Packs of
1 pc(s).
Weight/pack
0.801 kg
Customs tariff number
94037000
EAN
4028177139756
ETIM 9
EC000261
ECLASS 8.0
27180101
Product description
PK Polycarbonate enclosure, WHD: 254x180x90 mm, fibreglass-reinforced polycarbonate, without knockouts, with transparent cover
Feature: Fibreglass-reinforced polycarbonate body with a transparent cover. Business Impact: Delivers excellent mechanical strength and chemical resistance while allowing quick visual checks of wiring and components. Application: Ideal for control cabinets in manufacturing lines where space is constrained and visibility is valuable. Feature: IP66 protection and NEMA 4X compatibility. Business Impact: Ensures ingress protection against dust and water, extending service life in harsh environments. Application: Outdoor or damp factory floor installations requiring rugged enclosures. Feature: Quick-release fasteners for the cover. Business Impact: Speeds up maintenance cycles, reducing downtime and labor costs. Application: Regular inspections and updates in automated systems. Feature: Operating temperature range of -35 °C to +80 °C. Business Impact: Supports equipment with wide thermal loads without enclosure deformation. Application: Machines operating in cold shops or hot production lines. Feature: Dimensions WHD 254x180x90 mm with wall-mounting provision. Business Impact: Provides a compact footprint that fits standard panels and minimizes enclosure footprint. Application: Small to medium control panels in compact automation setups. Feature: Supplied with cover screws and insulating bungs. Business Impact: Simplifies installation and ensures proper sealing for long-term reliability. Application: Quick deployment in wall-mounted housings across OEM projects.
Get a Quick Quote for a Rittal 9520100
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9520100?
Enquire Now
FAQs
The PK 9520.100 is designed for simple wall mounting with included insulating bungs and cover screws. It weighs 0.801 kg per pack and uses a foam-sealed transparent cover, ensuring a reliable seal once mounted. Ensure a clean, level mounting surface and confirm outdoor or indoor placement aligns with IP66/NEMA 4X protection requirements.
IP66 and NEMA 4X indicate robust protection against dust, water jets, and corrosion in demanding environments. This makes PK 9520.100 suitable for outdoor panels, wash-down zones, and chemical exposure areas, while maintaining enclosure integrity and protecting internal components from ingress and damage.
Yes. The enclosure features quick-release fasteners on the transparent cover, enabling rapid lid removal. This reduces servicing time, simplifies wiring checks, and supports frequent maintenance cycles without compromising enclosure seal integrity when reinstalled.
The PK 9520.100 supports an operating range from -35 °C to +80 °C. This broad tolerance accommodates heat generation from mounted electronics and ambient conditions in warehouses or outdoor installations, helping prevent thermal stress on components and extend service life.
The combination of lightweight fibreglass-reinforced polycarbonate, weather and impact resistance, and fast-access covers lowers installation effort and downtime. Over time, this translates to lower labor costs, fewer service interruptions, and enhanced asset protection, delivering a favorable total cost of ownership in automation projects.
